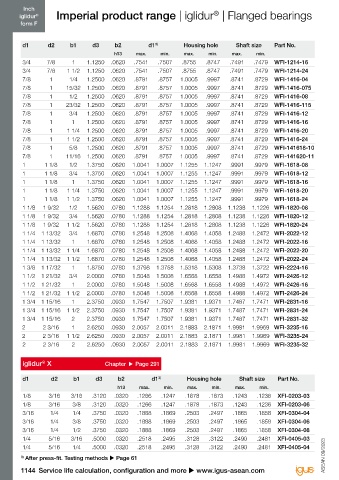

Page 1146 - IGUS Bearing
P. 1146
Inch Inch
®
®
iglidur Imperial product range | iglidur | Flanged bearings Imperial product range | iglidur | Flanged bearings iglidur
®
®
form F form F
d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No. d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No.
h13 max. min. max. min. max. min. h13 max. min. max. min. max. min.
3/4 7/8 1 1.1250 .0620 .7541 .7507 .8755 .8747 .7491 .7479 WFI-1214-16 1/4 5/16 3/8 .5000 .0320 .2518 .2495 .3128 .3122 .2490 .2481 XFI-0405-06
3/4 7/8 1 1/2 1.1250 .0620 .7541 .7507 .8755 .8747 .7491 .7479 WFI-1214-24 1/4 5/16 1/2 .5000 .0320 .2518 .2495 .3128 .3122 .2490 .2481 XFI-0405-08
7/8 1 1/4 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 WFI-1416-04 1/4 5/16 3/4 .5000 .0320 .2518 .2495 .3128 .3122 .2490 .2481 XFI-0405-12
7/8 1 15/32 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 WFI-1416-075 5/16 3/8 1/4 .5620 .0320 .3143 .3120 .3753 .3747 .3115 .3106 XFI-0506-04
7/8 1 1/2 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 WFI-1416-08 5/16 3/8 3/8 .5620 .0320 .3143 .3120 .3753 .3747 .3115 .3106 XFI-0506-06
7/8 1 23/32 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 WFI-1416-115 5/16 3/8 1/2 .5620 .0320 .3143 .3120 .3753 .3747 .3115 .3106 XFI-0506-08
7/8 1 3/4 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 WFI-1416-12 3/8 15/32 1/4 .6870 .0460 .3768 .3745 .4691 .4684 .3740 .3731 XFI-0607-04
7/8 1 1 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 WFI-1416-16 3/8 15/32 3/8 .6870 .0460 .3768 .3745 .4691 .4684 .3740 .3731 XFI-0607-06
7/8 1 1 1/4 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 WFI-1416-20 3/8 15/32 1/2 .6870 .0460 .3768 .3745 .4691 .4684 .3740 .3731 XFI-0607-08
7/8 1 1 1/2 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 WFI-1416-24 3/8 15/32 3/4 .6870 .0460 .3768 .3745 .4691 .4684 .3740 .3731 XFI-0607-12
7/8 1 5/8 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 WFI-141618-10 7/16 17/32 1/2 .7500 .0460 .4399 .4371 .5316 .5309 .4365 .4355 XFI-0708-08
7/8 1 11/16 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 WFI-141620-11 1/2 19/32 1/4 .8750 .0460 .5024 .4996 .5941 .5934 .4990 .4980 XFI-0809-04
1 1 1/8 1/2 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 WFI-1618-08 1/2 19/32 3/8 .8750 .0460 .5024 .4996 .5941 .5934 .4990 .4980 XFI-0809-06
1 1 1/8 3/4 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 WFI-1618-12 1/2 19/32 1/2 .8750 .0460 .5024 .4996 .5941 .5934 .4990 .4980 XFI-0809-08
1 1 1/8 1 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 WFI-1618-16 1/2 19/32 3/4 .8750 .0460 .5024 .4996 .5941 .5934 .4990 .4980 XFI-0809-12
1 1 1/8 1 1/4 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 WFI-1618-20 1/2 19/32 1 .8750 .0460 .5024 .4996 .5941 .5934 .4990 .4980 XFI-0809-16
1 1 1/8 1 1/2 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 WFI-1618-24 5/8 23/32 1/2 .9370 .0460 .6274 .6246 .7192 .7184 .6240 .6230 XFI-1011-08
1 1/8 1 9/32 1/2 1.5620 .0780 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226 WFI-1820-08 5/8 23/32 3/4 .9370 .0460 .6274 .6246 .7192 .7184 .6240 .6230 XFI-1011-12
1 1/8 1 9/32 3/4 1.5620 .0780 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226 WFI-1820-12 5/8 23/32 1 .9370 .0460 .6274 .6246 .7192 .7184 .6240 .6230 XFI-1011-16
1 1/8 1 9/32 1 1/2 1.5620 .0780 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226 WFI-1820-24 5/8 23/32 1 1/2 .9370 .0460 .6274 .6246 .7192 .7184 .6240 .6230 XFI-1011-24
1 1/4 1 13/32 3/4 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 WFI-2022-12 3/4 7/8 1/2 1.1250 .0620 .7532 .7499 .8755 .8747 .7491 .7479 XFI-1214-08
1 1/4 1 13/32 1 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 WFI-2022-16 3/4 7/8 3/4 1.1250 .0620 .7532 .7499 .8755 .8747 .7491 .7479 XFI-1214-12
1 1/4 1 13/32 1 1/4 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 WFI-2022-20 3/4 7/8 1 1.1250 .0620 .7532 .7499 .8755 .8747 .7491 .7479 XFI-1214-16
1 1/4 1 13/32 1 1/2 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 WFI-2022-24 3/4 7/8 1 3/4 1.1250 .0620 .7532 .7499 .8755 .8747 .7491 .7479 XFI-1214-28
1 3/8 1 17/32 1 1.8750 .0780 1.3798 1.3758 1.5318 1.5308 1.3738 1.3722 WFI-2224-16 7/8 1 1/2 1.2500 .0620 .8782 .8749 1.0005 .9997 .8741 .8729 XFI-1416-08
1 1/2 1 21/32 3/4 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 WFI-2426-12 7/8 1 3/4 1.2500 .0620 .8782 .8749 1.0005 .9997 .8741 .8729 XFI-1416-12
1 1/2 1 21/32 1 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 WFI-2426-16 7/8 1 1 1.2500 .0620 .8782 .8749 1.0005 .9997 .8741 .8729 XFI-1416-16
1 1/2 1 21/32 1 1/2 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 WFI-2426-24 1 1 1/8 1/2 1.3750 .0620 1.0032 .9999 1.1255 1.1247 .9991 .9979 XFI-1618-08
1 3/4 1 15/16 1 2.3750 .0930 1.7547 1.7507 1.9381 1.9371 1.7487 1.7471 WFI-2831-16 1 1 1/8 3/4 1.3750 .0620 1.0032 .9999 1.1255 1.1247 .9991 .9979 XFI-1618-12
1 3/4 1 15/16 1 1/2 2.3750 .0930 1.7547 1.7507 1.9381 1.9371 1.7487 1.7471 WFI-2831-24 1 1 1/8 1 1.3750 .0620 1.0032 .9999 1.1255 1.1247 .9991 .9979 XFI-1618-16
1 3/4 1 15/16 2 2.3750 .0930 1.7547 1.7507 1.9381 1.9371 1.7487 1.7471 WFI-2831-32 1 1 1/8 1 1/2 1.3750 .0620 1.0032 .9999 1.1255 1.1247 .9991 .9979 XFI-1618-24
2 2 3/16 1 2.6250 .0930 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 WFI-3235-16 1 1/8 1 9/32 3/4 1.5620 .0780 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226 XFI-1820-12
2 2 3/16 1 1/2 2.6250 .0930 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 WFI-3235-24 1 1/4 1 13/32 1 1.6870 .0780 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 XFI-2022-16
2 2 3/16 2 2.6250 .0930 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 WFI-3235-32 1 1/4 1 13/32 1 1/4 1.6870 .0780 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 XFI-2022-20
1 1/4 1 13/32 2 1.6870 .0780 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 XFI-2022-32
iglidur X Chapter Page 291 1 1/2 1 21/32 3/4 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 XFI-2426-12
®
1 1/2 1 21/32 1 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 XFI-2426-16
d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No. 1 1/2 1 21/32 1 1/2 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 XFI-2426-24
h13 max. min. max. min. max. min. 1 1/2 1 21/32 1 5/8 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 XFI-2426-26
1/8 3/16 3/16 .3120 .0320 .1266 .1247 .1878 .1873 .1243 .1236 XFI-0203-03 1 3/4 1 15/16 1 2.3750 .0930 1.7536 1.7497 1.9381 1.9371 1.7487 1.7471 XFI-2831-16
1/8 3/16 3/8 .3120 .0320 .1266 .1247 .1878 .1873 .1243 .1236 XFI-0203-06 1 3/4 1 15/16 2 2.3750 .0930 1.7536 1.7497 1.9381 1.9371 1.7487 1.7471 XFI-2831-32
3/16 1/4 1/4 .3750 .0320 .1888 .1869 .2503 .2497 .1865 .1858 XFI-0304-04 2 2 3/16 2 2.6250 .0930 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 XFI-3235-32
3/16 1/4 3/8 .3750 .0320 .1888 .1869 .2503 .2497 .1865 .1858 XFI-0304-06 2 3/4 2 15/16 2 3.3750 .0930 2.7570 2.7523 2.9370 2.9358 2.7500 2.7490 XFI-4447-32
3/16 1/4 1/2 .3750 .0320 .1888 .1869 .2503 .2497 .1865 .1858 XFI-0304-08 3) After press-fit. Testing methods u Page 61
1/4 5/16 3/16 .5000 .0320 .2518 .2495 .3128 .3122 .2490 .2481 XFI-0405-03
1/4 5/16 1/4 .5000 .0320 .2518 .2495 .3128 .3122 .2490 .2481 XFI-0405-04
3) After press-fit. Testing methods u Page 61 ASEAN 09/2023 ASEAN 09/2023
1144 Service life calculation, configuration and more u www.igus-asean.com 3D CAD files, prices and delivery time online u www.igus-asean.com 1145
