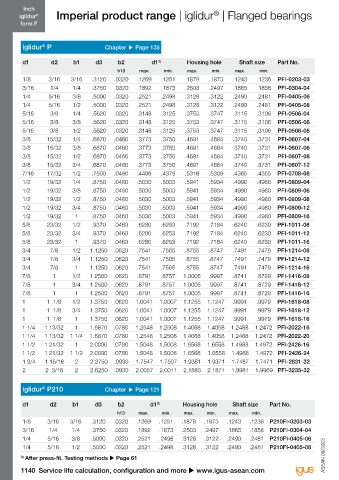

iglidur Imperial product range | iglidur | Flanged bearings Imperial product range | iglidur | Flanged bearings iglidur
®
®
form F form F
iglidur P Chapter Page 135 d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No.
®
h13 max. min. max. min. max. min.
d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No. 5/16 3/8 1/4 .5620 .0320 .3148 .3125 .3753 .3747 .3115 .3106 P210FI-0506-04
h13 max. min. max. min. max. min. 5/16 3/8 3/8 .5620 .0320 .3148 .3125 .3753 .3747 .3115 .3106 P210FI-0506-06
1/8 3/16 3/16 .3120 .0320 .1269 .1251 .1878 .1873 .1243 .1236 PFI-0203-03 5/16 3/8 1/2 .5620 .0320 .3148 .3125 .3753 .3747 .3115 .3106 P210FI-0506-08
3/16 1/4 1/4 .3750 .0320 .1892 .1873 .2503 .2497 .1865 .1858 PFI-0304-04 3/8 15/32 1/4 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 P210FI-0607-04
1/4 5/16 3/8 .5000 .0320 .2521 .2498 .3128 .3122 .2490 .2481 PFI-0405-06 3/8 15/32 3/8 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 P210FI-0607-06
1/4 5/16 1/2 .5000 .0320 .2521 .2498 .3128 .3122 .2490 .2481 PFI-0405-08 3/8 15/32 1/2 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 P210FI-0607-08
5/16 3/8 1/4 .5620 .0320 .3148 .3125 .3753 .3747 .3115 .3106 PFI-0506-04 3/8 15/32 3/4 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 P210FI-0607-12
5/16 3/8 3/8 .5620 .0320 .3148 .3125 .3753 .3747 .3115 .3106 PFI-0506-06 7/16 17/32 1/2 .7500 .0460 .4406 .4379 .5316 .5309 .4365 .4355 P210FI-0708-08
5/16 3/8 1/2 .5620 .0320 .3148 .3125 .3753 .3747 .3115 .3106 PFI-0506-08 1/2 19/32 1/4 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 P210FI-0809-04
3/8 15/32 1/4 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 PFI-0607-04 1/2 19/32 3/8 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 P210FI-0809-06
3/8 15/32 3/8 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 PFI-0607-06 1/2 19/32 1/2 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 P210FI-0809-08
3/8 15/32 1/2 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 PFI-0607-08 1/2 19/32 3/4 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 P210FI-0809-12
3/8 15/32 3/4 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 PFI-0607-12 1/2 19/32 1 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 P210FI-0809-16
7/16 17/32 1/2 .7500 .0460 .4406 .4379 .5316 .5309 .4365 .4355 PFI-0708-08 5/8 23/32 1/2 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 P210FI-1011-08
1/2 19/32 1/4 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 PFI-0809-04 5/8 23/32 3/4 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 P210FI-1011-12
1/2 19/32 3/8 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 PFI-0809-06 5/8 23/32 1 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 P210FI-1011-16
1/2 19/32 1/2 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 PFI-0809-08 3/4 7/8 1/2 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 P210FI-1214-08
1/2 19/32 3/4 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 PFI-0809-12 3/4 7/8 3/4 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 P210FI-1214-12
1/2 19/32 1 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 PFI-0809-16 3/4 7/8 1 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 P210FI-1214-16
5/8 23/32 1/2 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 PFI-1011-08 7/8 1 1/2 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 P210FI-1416-08
5/8 23/32 3/4 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 PFI-1011-12 7/8 1 3/4 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 P210FI-1416-12
5/8 23/32 1 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 PFI-1011-16 7/8 1 1 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 P210FI-1416-16
3/4 7/8 1/2 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 PFI-1214-08 1 1 1/8 1/2 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 P210FI-1618-08
3/4 7/8 3/4 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 PFI-1214-12 1 1 1/8 3/4 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 P210FI-1618-12
3/4 7/8 1 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 PFI-1214-16 1 1 1/8 1 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 P210FI-1618-16
7/8 1 1/2 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 PFI-1416-08 1 1/4 1 13/32 1 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 P210FI-2022-16
7/8 1 3/4 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 PFI-1416-12 1 1/4 1 13/32 1 1/4 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 P210FI-2022-20
7/8 1 1 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 PFI-1416-16 1 1/2 1 21/32 1 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 P210FI-2426-16
1 1 1/8 1/2 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 PFI-1618-08 1 1/2 1 21/32 1 1/2 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 P210FI-2426-24
1 1 1/8 3/4 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 PFI-1618-12 1 3/4 1 15/16 2 2.3750 .0930 1.7547 1.7507 1.9381 1.9371 1.7487 1.7471 P210FI-2831-32
1 1 1/8 1 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 PFI-1618-16 2 2 3/16 2 2.6250 .0930 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 P210FI-3235-32
1 1/4 1 13/32 1 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 PFI-2022-16
1 1/4 1 13/32 1 1/4 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 PFI-2022-20 iglidur Q Chapter Page 491
®
1 1/2 1 21/32 1 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 PFI-2426-16
1 1/2 1 21/32 1 1/2 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 PFI-2426-24 d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No.
1 3/4 1 15/16 2 2.3750 .0930 1.7547 1.7507 1.9381 1.9371 1.7487 1.7471 PFI-2831-32 h13 max. min. max. min. max. min.
2 2 3/16 2 2.6250 .0930 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 PFI-3235-32 3/8 15/32 1/4 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 QFI-0607-04
3/8 15/32 1/2 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 QFI-0607-08
iglidur P210 Chapter Page 121 1/2 19/32 1/4 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 QFI-0809-04
®
1/2 19/32 1/2 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 QFI-0809-08
d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No. 1/2 19/32 3/4 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 QFI-0809-12
h13 max. min. max. min. max. min. 5/8 23/32 3/4 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 QFI-1011-12
1/8 3/16 3/16 .3120 .0320 .1269 .1251 .1878 .1873 .1243 .1236 P210FI-0203-03 5/8 3/4 1/2 1.0000 .0620 .6290 .6263 .7510 .7500 .6250 .6240 QFI-1012-08
3/16 1/4 1/4 .3750 .0320 .1892 .1873 .2503 .2497 .1865 .1858 P210FI-0304-04 3/4 7/8 1/2 1.1250 .0620 .7541 .7507 .8755 .8747 .7491 .7479 QFI-1214-08
1/4 5/16 3/8 .5000 .0320 .2521 .2498 .3128 .3122 .2490 .2481 P210FI-0405-06 3/4 7/8 3/4 1.1250 .0620 .7541 .7507 .8755 .8747 .7491 .7479 QFI-1214-12
1/4 5/16 1/2 .5000 .0320 .2521 .2498 .3128 .3122 .2490 .2481 P210FI-0405-08 3/4 7/8 1 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 QFI-1214-16
3) After press-fit. Testing methods u Page 61 ASEAN 09/2023 ASEAN 09/2023 3) After press-fit. Testing methods u Page 61
