Page 1140 - IGUS Bearing

Inch Inch
®
®

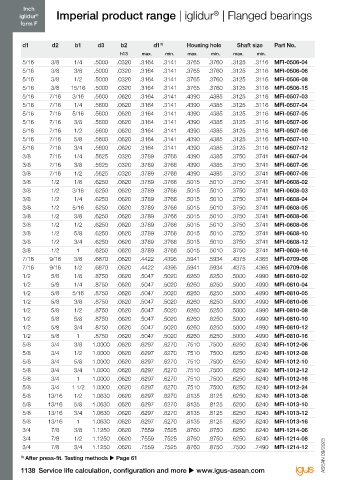

iglidur Imperial product range | iglidur | Flanged bearings Imperial product range | iglidur | Flanged bearings iglidur
®
®
form F form F
d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No. d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No.
h13 max. min. max. min. max. min. h13 max. min. max. min. max. min.
5/16 3/8 1/4 .5000 .0320 .3164 .3141 .3765 .3760 .3125 .3116 MFI-0506-04 3/4 7/8 1 1.1250 .0620 .7559 .7525 .8760 .8750 .7500 .7490 MFI-1214-16
5/16 3/8 3/8 .5000 .0320 .3164 .3141 .3765 .3760 .3125 .3116 MFI-0506-06 3/4 7/8 1 1/2 1.1250 .0620 .7559 .7525 .8760 .8750 .7500 .7490 MFI-1214-24
5/16 3/8 1/2 .5000 .0320 .3164 .3141 .3765 .3760 .3125 .3116 MFI-0506-08 3/4 1 1/2 1.2500 .1560 .7559 .7525 1.0010 1.0000 .7500 .7490 MFI-1216-08
5/16 3/8 15/16 .5000 .0320 .3164 .3141 .3765 .3760 .3125 .3116 MFI-0506-15 3/4 1 5/8 1.2500 .1560 .7559 .7525 1.0010 1.0000 .7500 .7490 MFI-1216-10
5/16 7/16 3/16 .5600 .0620 .3164 .3141 .4390 .4385 .3125 .3116 MFI-0507-03 3/4 1 3/4 1.2500 .1560 .7559 .7525 1.0010 1.0000 .7500 .7490 MFI-1216-12
5/16 7/16 1/4 .5600 .0620 .3164 .3141 .4390 .4385 .3125 .3116 MFI-0507-04 3/4 1 1 1.2500 .1560 .7559 .7525 1.0010 1.0000 .7500 .7490 MFI-1216-16
5/16 7/16 5/16 .5600 .0620 .3164 .3141 .4390 .4385 .3125 .3116 MFI-0507-05 3/4 1 1 1/2 1.2500 .1560 .7559 .7525 1.0010 1.0000 .7500 .7490 MFI-1216-24
5/16 7/16 3/8 .5600 .0620 .3164 .3141 .4390 .4385 .3125 .3116 MFI-0507-06 7/8 1 3/4 1.2500 .0620 .8809 .8775 1.0010 1.0000 .8750 .8740 MFI-1416-12
5/16 7/16 1/2 .5600 .0620 .3164 .3141 .4390 .4385 .3125 .3116 MFI-0507-08 7/8 1 1 1.2500 .0620 .8809 .8775 1.0010 1.0000 .8750 .8740 MFI-1416-16
5/16 7/16 5/8 .5600 .0620 .3164 .3141 .4390 .4385 .3125 .3116 MFI-0507-10 7/8 1 1 1/2 1.2500 .0620 .8809 .8775 1.0010 1.0000 .8750 .8740 MFI-1416-24
5/16 7/16 3/4 .5600 .0620 .3164 .3141 .4390 .4385 .3125 .3116 MFI-0507-12 7/8 1 1/8 1/2 1.3750 .1560 .8809 .8775 1.1260 1.1250 .8750 .8740 MFI-1418-08
3/8 7/16 1/4 .5625 .0320 .3789 .3766 .4390 .4385 .3750 .3741 MFI-0607-04 7/8 1 1/8 3/4 1.3750 .1560 .8809 .8775 1.1260 1.1250 .8750 .8740 MFI-1418-12
3/8 7/16 3/8 .5625 .0320 .3789 .3766 .4390 .4385 .3750 .3741 MFI-0607-06 7/8 1 1/8 1 1.3750 .1560 .8809 .8775 1.1260 1.1250 .8750 .8740 MFI-1418-16
3/8 7/16 1/2 .5625 .0320 .3789 .3766 .4390 .4385 .3750 .3741 MFI-0607-08 7/8 1 1/8 1 1/2 1.3750 .1560 .8809 .8775 1.1260 1.1250 .8750 .8740 MFI-1418-24
3/8 1/2 1/8 .6250 .0620 .3789 .3766 .5015 .5010 .3750 .3741 MFI-0608-02 1 1 1/8 3/16 1.3750 .0620 1.0059 1.0025 1.1260 1.1250 1.0000 .9990 MFI-1618-03
3/8 1/2 3/16 .6250 .0620 .3789 .3766 .5015 .5010 .3750 .3741 MFI-0608-03 1 1 1/8 3/4 1.3750 .0620 1.0059 1.0025 1.1260 1.1250 1.0000 .9990 MFI-1618-12
3/8 1/2 1/4 .6250 .0620 .3789 .3766 .5015 .5010 .3750 .3741 MFI-0608-04 1 1 1/8 1 1.3750 .0620 1.0059 1.0025 1.1260 1.1250 1.0000 .9990 MFI-1618-16
3/8 1/2 5/16 .6250 .0620 .3789 .3766 .5015 .5010 .3750 .3741 MFI-0608-05 1 1 1/8 1 1/2 1.3750 .0620 1.0059 1.0025 1.1260 1.1250 1.0000 .9990 MFI-1618-24
3/8 1/2 3/8 .6250 .0620 .3789 .3766 .5015 .5010 .3750 .3741 MFI-0608-06 1 1 1/4 1/2 1.5000 .1880 1.0059 1.0025 1.2510 1.2500 1.0000 .9990 MFI-1620-08
3/8 1/2 1/2 .6250 .0620 .3789 .3766 .5015 .5010 .3750 .3741 MFI-0608-08 1 1 1/4 5/8 1.5000 .1880 1.0059 1.0025 1.2510 1.2500 1.0000 .9990 MFI-1620-10
3/8 1/2 5/8 .6250 .0620 .3789 .3766 .5015 .5010 .3750 .3741 MFI-0608-10 1 1 1/4 3/4 1.5000 .1880 1.0059 1.0025 1.2510 1.2500 1.0000 .9990 MFI-1620-12
3/8 1/2 3/4 .6250 .0620 .3789 .3766 .5015 .5010 .3750 .3741 MFI-0608-12 1 1 1/4 1 1.5000 .1880 1.0059 1.0025 1.2510 1.2500 1.0000 .9990 MFI-1620-16
3/8 1/2 1 .6250 .0620 .3789 .3766 .5015 .5010 .3750 .3741 MFI-0608-16 1 1 1/4 1 1/2 1.5000 .1880 1.0059 1.0025 1.2510 1.2500 1.0000 .9990 MFI-1620-24
7/16 9/16 3/8 .6870 .0620 .4422 .4395 .5941 .5934 .4375 .4365 MFI-0709-06 1 1/4 1 1/2 7/16 1.7500 .2000 1.2600 1.2531 1.5005 1.4995 1.2500 1.2490 MFI-2024-07
7/16 9/16 1/2 .6870 .0620 .4422 .4395 .5941 .5934 .4375 .4365 MFI-0709-08 1 1/4 1 1/2 3/4 1.7500 .2000 1.2600 1.2531 1.5005 1.4995 1.2500 1.2490 MFI-2024-12
1/2 5/8 1/8 .8750 .0620 .5047 .5020 .6260 .6250 .5000 .4990 MFI-0810-02 1 1/4 1 1/2 1 1.7500 .2000 1.2600 1.2531 1.5005 1.4995 1.2500 1.2490 MFI-2024-16
1/2 5/8 1/4 .8750 .0620 .5047 .5020 .6260 .6250 .5000 .4990 MFI-0810-04 1 1/4 1 1/2 1 1/2 1.7500 .2000 1.2600 1.2531 1.5005 1.4995 1.2500 1.2490 MFI-2024-24
1/2 5/8 5/16 .8750 .0620 .5047 .5020 .6260 .6250 .5000 .4990 MFI-0810-05 1 3/8 1 5/8 3/4 1.8750 .1250 1.3850 1.3182 1.6255 1.6245 1.3750 1.3740 MFI-2226-12
1/2 5/8 3/8 .8750 .0620 .5047 .5020 .6260 .6250 .5000 .4990 MFI-0810-06 1 3/8 1 5/8 1 1.8750 .1250 1.3850 1.3182 1.6255 1.6245 1.3750 1.3740 MFI-2226-16
1/2 5/8 1/2 .8750 .0620 .5047 .5020 .6260 .6250 .5000 .4990 MFI-0810-08 1 1/2 1 3/4 3/4 2.0000 .1250 1.5100 1.5032 1.7505 1.7495 1.5000 1.4990 MFI-2428-12
1/2 5/8 5/8 .8750 .0620 .5047 .5020 .6260 .6250 .5000 .4990 MFI-0810-10 1 1/2 1 3/4 1 2.0000 .1250 1.5100 1.5032 1.7505 1.7495 1.5000 1.4990 MFI-2428-16
1/2 5/8 3/4 .8750 .0620 .5047 .5020 .6260 .6250 .5000 .4990 MFI-0810-12 1 1/2 1 3/4 1 1/2 2.0000 .1250 1.5100 1.5032 1.7505 1.7495 1.5000 1.4990 MFI-2428-24
1/2 5/8 1 .8750 .0620 .5047 .5020 .6260 .6250 .5000 .4990 MFI-0810-16 1 5/8 1 7/8 1 2.1250 .1250 1.6350 1.6282 1.8755 1.8745 1.6250 1.6240 MFI-2630-16
5/8 3/4 3/8 1.0000 .0620 .6297 .6270 .7510 .7500 .6250 .6240 MFI-1012-06 1 3/4 2 3/4 2.2500 .1250 1.7560 1.7532 2.0005 1.9995 1.7500 1.7490 MFI-2832-12
5/8 3/4 1/2 1.0000 .0620 .6297 .6270 .7510 .7500 .6250 .6240 MFI-1012-08 1 3/4 2 1 2.2500 .1250 1.7560 1.7532 2.0005 1.9995 1.7500 1.7490 MFI-2832-16
5/8 3/4 5/8 1.0000 .0620 .6297 .6270 .7510 .7500 .6250 .6240 MFI-1012-10 1 3/4 2 1 1/2 2.2500 .1250 1.7560 1.7532 2.0005 1.9995 1.7500 1.7490 MFI-2832-24
5/8 3/4 3/4 1.0000 .0620 .6297 .6270 .7510 .7500 .6250 .6240 MFI-1012-12 2 2 1/4 1 2.5000 .1250 2.0100 2.0032 2.2550 2.2540 2.0000 1.9990 MFI-3236-16
5/8 3/4 1 1.0000 .0620 .6297 .6270 .7510 .7500 .6250 .6240 MFI-1012-16 2 2 1/4 1 1/2 2.5000 .1250 2.0100 2.0032 2.2550 2.2540 2.0000 1.9990 MFI-3236-24
5/8 3/4 1 1/2 1.0000 .0620 .6297 .6270 .7510 .7500 .6250 .6240 MFI-1012-24 2 2 1/4 2 2.5000 .1250 2.0100 2.0032 2.2550 2.2540 2.0000 1.9990 MFI-3236-32
5/8 13/16 1/2 1.0630 .0620 .6297 .6270 .8135 .8125 .6250 .6240 MFI-1013-08 3) After press-fit. Testing methods u Page 61
5/8 13/16 5/8 1.0630 .0620 .6297 .6270 .8135 .8125 .6250 .6240 MFI-1013-10
5/8 13/16 3/4 1.0630 .0620 .6297 .6270 .8135 .8125 .6250 .6240 MFI-1013-12
5/8 13/16 1 1.0630 .0620 .6297 .6270 .8135 .8125 .6250 .6240 MFI-1013-16
3/4 7/8 3/8 1.1250 .0620 .7559 .7525 .8760 .8750 .6250 .6240 MFI-1214-06
3/4 7/8 1/2 1.1250 .0620 .7559 .7525 .8760 .8750 .6250 .6240 MFI-1214-08
3/4 7/8 3/4 1.1250 .0620 .7559 .7525 .8760 .8750 .7500 .7490 MFI-1214-12

3) After press-fit. Testing methods u Page 61 ASEAN 09/2023 ASEAN 09/2023
