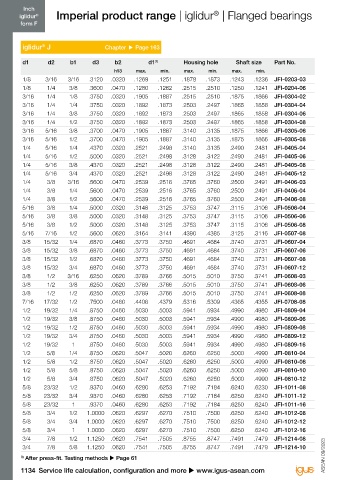

Page 1136 - IGUS Bearing
P. 1136
Inch Inch
®
®
iglidur Imperial product range | iglidur | Flanged bearings Imperial product range | iglidur | Flanged bearings iglidur
®
®
form F form F
iglidur J Chapter Page 163 d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No.
®
h13 max. min. max. min. max. min.
d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No. 3/4 7/8 3/4 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 JFI-1214-12
h13 max. min. max. min. max. min. 3/4 7/8 1 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 JFI-1214-16
1/8 3/16 3/16 .3120 .0320 .1269 .1251 .1878 .1873 .1243 .1236 JFI-0203-03 3/4 1 3/4 1.2500 .1560 .7559 .7525 1.0010 1.00 .7500 .7490 JFI-1216-12
1/8 1/4 3/8 .3600 .0470 .1280 .1262 .2515 .2510 .1250 .1241 JFI-0204-06 3/4 1 1 1.2500 .1560 .7559 .7525 1.0010 1.00 .7500 .7490 JFI-1216-16
3/16 1/4 1/8 .3750 .0320 .1905 .1887 .2515 .2510 .1875 .1866 JFI-0304-02 7/8 1 1/2 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 JFI-1416-08
3/16 1/4 1/4 .3750 .0320 .1892 .1873 .2503 .2497 .1865 .1858 JFI-0304-04 7/8 1 3/4 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 JFI-1416-12
3/16 1/4 3/8 .3750 .0320 .1892 .1873 .2503 .2497 .1865 .1858 JFI-0304-06 7/8 1 1 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 JFI-1416-16
3/16 1/4 1/2 .3750 .0320 .1892 .1873 .2503 .2497 .1865 .1858 JFI-0304-08 7/8 1 1 1/16 1.1250 .0620 .8809 .8776 1.0010 1.00 .8750 .8740 JFI-141618-11
3/16 5/16 3/8 .3700 .0470 .1905 .1887 .3140 .3135 .1875 .1866 JFI-0305-06 1 1 1/8 1/2 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 JFI-1618-08
3/16 5/16 1/2 .3700 .0470 .1905 .1887 .3140 .3135 .1875 .1866 JFI-0305-08 1 1 1/8 3/4 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 JFI-1618-12
1/4 5/16 1/4 .4370 .0320 .2521 .2498 .3140 .3135 .2490 .2481 JFI-0405-04 1 1 1/8 1 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 JFI-1618-16
1/4 5/16 1/2 .5000 .0320 .2521 .2498 .3128 .3122 .2490 .2481 JFI-0405-06 1 1 1/4 3/4 1.5000 .1880 1.0059 1.0025 1.2510 1,250 1.0000 .9990 JFI-1620-12
1/4 5/16 3/8 .4370 .0320 .2521 .2498 .3128 .3122 .2490 .2481 JFI-0405-08 1 1 1/4 1 1.5000 .1880 1.0059 1.0025 1.2510 1,250 1.0000 .9990 JFI-1620-16
1/4 5/16 3/4 .4370 .0320 .2521 .2498 .3128 .3122 .2490 .2481 JFI-0405-12 1 1 1/4 1 1/2 1.5000 .1880 1.0059 1.0025 1.2510 1,250 1.0000 .9990 JFI-1620-24
1/4 3/8 3/16 .5600 .0470 .2539 .2516 .3765 .3760 .2500 .2491 JFI-0406-03 1 1/4 1 13/32 1 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 JFI-2022-16
1/4 3/8 1/4 .5600 .0470 .2539 .2516 .3765 .3760 .2500 .2491 JFI-0406-04 1 1/4 1 13/32 1 1/4 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 JFI-2022-20
1/4 3/8 1/2 .5600 .0470 .2539 .2516 .3765 .3760 .2500 .2491 JFI-0406-08 1 1/4 1 1/2 1 1.7500 .1880 1.2600 1.2531 1.5005 1.4995 1.2500 1.2490 JFI-2024-16
5/16 3/8 1/4 .5000 .0320 .3148 .3125 .3753 .3747 .3115 .3106 JFI-0506-04 1 1/4 1 1/2 1 1/2 1.7500 .1880 1.2600 1.2531 1.5005 1.4995 1.2500 1.2490 JFI-2024-24
5/16 3/8 3/8 .5000 .0320 .3148 .3125 .3753 .3747 .3115 .3106 JFI-0506-06 1 1/2 1 21/32 1 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 JFI-2426-16
5/16 3/8 1/2 .5000 .0320 .3148 .3125 .3753 .3747 .3115 .3106 JFI-0506-08 1 1/2 1 21/32 1 1/2 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 JFI-2426-24
5/16 7/16 1/2 .5600 .0620 .3164 .3141 .4390 .4385 .3125 .3116 JFI-0507-08 1 1/2 1 3/4 1 2.0000 .1250 1.5100 1.5032 1.7505 1.7495 1.5000 1.4990 JFI-2428-16
3/8 15/32 1/4 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 JFI-0607-04 1 1/2 1 3/4 1 1/2 2.0000 .1250 1.5100 1.5032 1.7505 1.7495 1.5000 1.4990 JFI-2428-24
3/8 15/32 3/8 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 JFI-0607-06 1 5/8 1 7/8 1 2.1250 .1250 1.6350 1.6882 1.8755 1.8745 1.6250 1.6240 JFI-2630-16
3/8 15/32 1/2 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 JFI-0607-08 1 3/4 1 15/16 2 2.3750 .0930 1.7547 1.7507 1.9381 1.9371 1.7487 1.7471 JFI-2831-32
3/8 15/32 3/4 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 JFI-0607-12 2 2 3/16 2 2.6250 .0930 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 JFI-3235-32
3/8 1/2 3/16 .6250 .0620 .3789 .3766 .5015 .5010 .3750 .3741 JFI-0608-03
3/8 1/2 3/8 .6250 .0620 .3789 .3766 .5015 .5010 .3750 .3741 JFI-0608-06 iglidur J3 Chapter Page 187
®
3/8 1/2 1/2 .6250 .0620 .3789 .3766 .5015 .5010 .3750 .3741 JFI-0608-08
7/16 17/32 1/2 .7500 .0460 .4406 .4379 .5316 .5309 .4365 .4355 JFI-0708-08 d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No.
1/2 19/32 1/4 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 JFI-0809-04 h13 max. min. max. min. max. min.
1/2 19/32 3/8 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 JFI-0809-06 1/8 3/16 3/16 .3120 .0320 .1269 .1251 .1878 .1873 .1243 .1236 J3FI-0203-03
1/2 19/32 1/2 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 JFI-0809-08 3/16 1/4 1/4 .3750 .0320 .1892 .1873 .2503 .2497 .1865 .1858 J3FI-0304-04
1/2 19/32 3/4 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 JFI-0809-12 1/4 5/16 3/8 .5000 .0320 .2521 .2498 .3128 .3122 .2490 .2481 J3FI-0405-06
1/2 19/32 1 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 JFI-0809-16 1/4 5/16 1/2 .5000 .0320 .2521 .2498 .3128 .3122 .2490 .2481 J3FI-0405-08
1/2 5/8 1/4 .8750 .0620 .5047 .5020 .6260 .6250 .5000 .4990 JFI-0810-04 5/16 3/8 1/4 .5620 .0320 .3148 .3125 .3753 .3747 .3115 .3106 J3FI-0506-04
1/2 5/8 1/2 .8750 .0620 .5047 .5020 .6260 .6250 .5000 .4990 JFI-0810-08 5/16 3/8 3/8 .5620 .0320 .3148 .3125 .3753 .3747 .3115 .3106 J3FI-0506-06
1/2 5/8 5/8 .8750 .0620 .5047 .5020 .6260 .6250 .5000 .4990 JFI-0810-10 5/16 3/8 1/2 .5620 .0320 .3148 .3125 .3753 .3747 .3115 .3106 J3FI-0506-08
1/2 5/8 3/4 .8750 .0620 .5047 .5020 .6260 .6250 .5000 .4990 JFI-0810-12 3/8 15/32 1/4 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 J3FI-0607-04
5/8 23/32 1/2 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 JFI-1011-08 3/8 15/32 3/8 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 J3FI-0607-06
5/8 23/32 3/4 .9370 .0460 .6280 .6253 .7192 .7184 .6250 .6240 JFI-1011-12 3/8 15/32 1/2 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 J3FI-0607-08
5/8 23/32 1 .9370 .0460 .6280 .6253 .7192 .7184 .6250 .6240 JFI-1011-16 3/8 15/32 3/4 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 J3FI-0607-12
5/8 3/4 1/2 1.0000 .0620 .6297 .6270 .7510 .7500 .6250 .6240 JFI-1012-08 7/16 17/32 1/2 .7500 .0460 .4406 .4379 .5316 .5309 .4365 .4355 J3FI-0708-08
5/8 3/4 3/4 1.0000 .0620 .6297 .6270 .7510 .7500 .6250 .6240 JFI-1012-12 1/2 19/32 1/4 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 J3FI-0809-04
5/8 3/4 1 1.0000 .0620 .6297 .6270 .7510 .7500 .6250 .6240 JFI-1012-16 1/2 19/32 3/8 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 J3FI-0809-06
3/4 7/8 1/2 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 JFI-1214-08 1/2 19/32 1/2 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 J3FI-0809-08
3/4 7/8 5/8 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 JFI-1214-10 1/2 19/32 3/4 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 J3FI-0809-12
3) After press-fit. Testing methods u Page 61 ASEAN 09/2023 ASEAN 09/2023 3) After press-fit. Testing methods u Page 61
