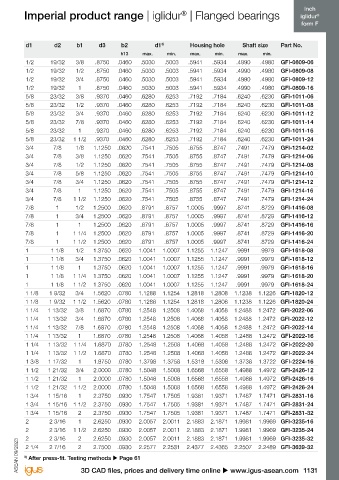

Page 1133 - IGUS Bearing

Inch Inch
®
®
iglidur Imperial product range | iglidur | Flanged bearings Imperial product range | iglidur | Flanged bearings iglidur
®
®
form F form F
d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No. d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No.
h13 max. min. max. min. max. min. h13 max. min. max. min. max. min.
3/4 7/8 1/2 1.1250 .0620 .7532 .7499 .8755 .8747 .7491 .7479 A500FI-1214-08 1/2 19/32 3/8 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 GFI-0809-06
3/4 7/8 3/4 1.1250 .0620 .7532 .7499 .8755 .8747 .7491 .7479 A500FI-1214-12 1/2 19/32 1/2 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 GFI-0809-08
3/4 7/8 1 1.1250 .0620 .7532 .7499 .8755 .8747 .7491 .7479 A500FI-1214-16 1/2 19/32 3/4 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 GFI-0809-12
7/8 1 1/2 1.2500 .0620 .8782 .8749 1.0005 .9997 .8741 .8729 A500FI-1416-08 1/2 19/32 1 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 GFI-0809-16
7/8 1 3/4 1.2500 .0620 .8782 .8749 1.0005 .9997 .8741 .8729 A500FI-1416-12 5/8 23/32 3/8 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 GFI-1011-06
7/8 1 1 1.2500 .0620 .8782 .8749 1.0005 .9997 .8741 .8729 A500FI-1416-16 5/8 23/32 1/2 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 GFI-1011-08
1 1 1/8 1/2 1.3750 .0620 1.0032 .9999 1.1255 1.1247 .9991 .9979 A500FI-1618-08 5/8 23/32 3/4 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 GFI-1011-12
1 1 1/8 3/4 1.3750 .0620 1.0032 .9999 1.1255 1.1247 .9991 .9979 A500FI-1618-12 5/8 23/32 7/8 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 GFI-1011-14
1 1 1/8 1 1.3750 .0620 1.0032 .9999 1.1255 1.1247 .9991 .9979 A500FI-1618-16 5/8 23/32 1 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 GFI-1011-16
1 1/4 1 13/32 1 1.6870 .0780 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 A500FI-2022-16 5/8 23/32 1 1/2 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 GFI-1011-24
1 1/4 1 13/32 1 1/4 1.6870 .0780 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 A500FI-2022-20 3/4 7/8 1/8 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 GFI-1214-02
1 1/2 1 21/32 1 2.0000 .0780 1.5037 1.4998 1.6568 1.6558 1.4988 1.4972 A500FI-2426-16 3/4 7/8 3/8 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 GFI-1214-06
1 1/2 1 21/32 1 1/2 2.0000 .0780 1.5037 1.4998 1.6568 1.6558 1.4988 1.4972 A500FI-2426-24 3/4 7/8 1/2 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 GFI-1214-08
1 3/4 1 15/16 2 2.3750 .0930 1.7536 1.7497 1.9381 1.9371 1.7487 1.7471 A500FI-2831-32 3/4 7/8 5/8 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 GFI-1214-10
2 2 3/16 2 2.6250 .0930 2.0040 1.9993 2.1883 2.1871 1.9981 1.9969 A500FI-3235-32 3/4 7/8 3/4 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 GFI-1214-12
3/4 7/8 1 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 GFI-1214-16
iglidur G Chapter „ Page 85 3/4 7/8 1 1/2 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 GFI-1214-24
®
7/8 1 1/2 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 GFI-1416-08
d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No. 7/8 1 3/4 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 GFI-1416-12
h13 max. min. max. min. max. min. 7/8 1 1 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 GFI-1416-16
1/8 3/16 1/8 .3120 .0320 .1269 .1251 .1878 .1873 .1243 .1236 GFI-0203-02 7/8 1 1 1/4 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 GFI-1416-20
1/8 3/16 3/16 .3120 .0320 .1269 .1251 .1878 .1873 .1243 .1236 GFI-0203-03 7/8 1 1 1/2 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 GFI-1416-24
1/8 3/16 1/4 .3120 .0320 .1269 .1251 .1878 .1873 .1243 .1236 GFI-0203-04 1 1 1/8 1/2 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 GFI-1618-08
1/8 3/16 3/8 .3120 .0320 .1269 .1251 .1878 .1873 .1243 .1236 GFI-0203-06 1 1 1/8 3/4 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 GFI-1618-12
3/16 1/4 1/4 .3750 .0320 .1892 .1873 .2503 .2497 .1865 .1858 GFI-0304-04 1 1 1/8 1 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 GFI-1618-16
3/16 1/4 3/8 .3750 .0320 .1892 .1873 .2503 .2497 .1865 .1858 GFI-0304-06 1 1 1/8 1 1/4 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 GFI-1618-20
3/16 1/4 1/2 .3750 .0320 .1892 .1873 .2503 .2497 .1865 .1858 GFI-0304-08 1 1 1/8 1 1/2 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 GFI-1618-24
1/4 5/16 1/4 .5000 .0320 .2521 .2498 .3128 .3122 .2490 .2481 GFI-0405-04 1 1/8 1 9/32 3/4 1.5620 .0780 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226 GFI-1820-12
1/4 5/16 5/16 .5000 .0320 .2521 .2498 .3128 .3122 .2490 .2481 GFI-0405-05 1 1/8 1 9/32 1 1/2 1.5620 .0780 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226 GFI-1820-24
1/4 5/16 3/8 .5000 .0320 .2521 .2498 .3128 .3122 .2490 .2481 GFI-0405-06 1 1/4 1 13/32 3/8 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 GFI-2022-06
1/4 5/16 1/2 .5000 .0320 .2521 .2498 .3128 .3122 .2490 .2481 GFI-0405-08 1 1/4 1 13/32 3/4 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 GFI-2022-12
1/4 5/16 3/4 .5000 .0320 .2521 .2498 .3128 .3122 .2490 .2481 GFI-0405-12 1 1/4 1 13/32 7/8 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 GFI-2022-14
5/16 3/8 1/4 .5620 .0320 .3148 .3125 .3753 .3747 .3115 .3106 GFI-0506-04 1 1/4 1 13/32 1 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 GFI-2022-16
5/16 3/8 3/8 .5620 .0320 .3148 .3125 .3753 .3747 .3115 .3106 GFI-0506-06 1 1/4 1 13/32 1 1/4 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 GFI-2022-20
5/16 3/8 1/2 .5620 .0320 .3148 .3125 .3753 .3747 .3115 .3106 GFI-0506-08 1 1/4 1 13/32 1 1/2 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 GFI-2022-24
5/16 3/8 3/4 .5620 .0320 .3148 .3125 .3753 .3747 .3115 .3106 GFI-0506-12 1 3/8 1 17/32 1 1.8750 .0780 1.3798 1.3758 1.5318 1.5308 1.3738 1.3722 GFI-2224-16
3/8 15/32 1/4 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 GFI-0607-04 1 1/2 1 21/32 3/4 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 GFI-2426-12
3/8 15/32 5/16 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 GFI-0607-05 1 1/2 1 21/32 1 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 GFI-2426-16
3/8 15/32 3/8 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 GFI-0607-06 1 1/2 1 21/32 1 1/2 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 GFI-2426-24
3/8 15/32 1/2 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 GFI-0607-08 1 3/4 1 15/16 1 2.3750 .0930 1.7547 1.7505 1.9381 1.9371 1.7487 1.7471 GFI-2831-16
3/8 15/32 3/4 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 GFI-0607-12 1 3/4 1 15/16 1 1/2 2.3750 .0930 1.7547 1.7505 1.9381 1.9371 1.7487 1.7471 GFI-2831-24
3/8 15/32 7/8 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 GFI-0607-14 1 3/4 1 15/16 2 2.3750 .0930 1.7547 1.7505 1.9381 1.9371 1.7487 1.7471 GFI-2831-32
7/16 17/32 1/4 .7500 .0460 .4406 .4379 .5316 .5309 .4365 .4355 GFI-0708-04 2 2 3/16 1 2.6250 .0930 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 GFI-3235-16
7/16 17/32 1/2 .7500 .0460 .4406 .4379 .5316 .5309 .4365 .4355 GFI-0708-08 2 2 3/16 1 1/2 2.6250 .0930 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 GFI-3235-24
1/2 19/32 1/4 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 GFI-0809-04 2 2 3/16 2 2.6250 .0930 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 GFI-3235-32
1/2 19/32 5/16 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 GFI-0809-05 2 1/4 2 7/16 2 2.7500 .0930 2.2577 2.2531 2.4377 2.4365 2.2507 2.2489 GFI-3639-32

3) After press-fit. Testing methods u Page 61 ASEAN 09/2023 ASEAN 09/2023 3) After press-fit. Testing methods u Page 61
1130 Service life calculation, configuration and more u www.igus-asean.com 3D CAD files, prices and delivery time online u www.igus-asean.com 1131
