Inch Inch
®
®

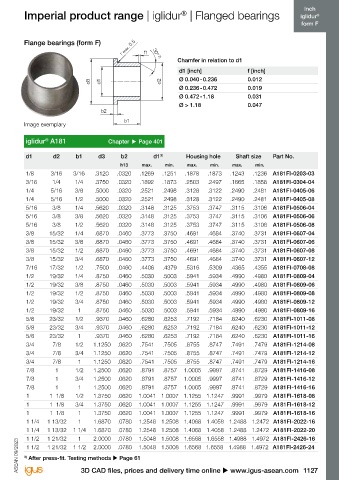

iglidur Imperial product range | iglidur | Sleeve bearings Imperial product range | iglidur | Flanged bearings iglidur
®
®
form S form F
d1 d2 b1 d1 3) Housing hole Shaft size Part No. Flange bearings (form F) r max. 0.5
max. min. max. min. max. min. f1 30°
1 1/4 1 13/32 1 1/4 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 ZSI-2022-20 Chamfer in relation to d1
1 1/2 1 21/32 1 1.5037 1.4998 1.6568 1.6558 1.4988 1.4972 ZSI-2426-16 d1 [inch] f [inch]
1 1/2 1 21/32 1 1/2 1.5037 1.4998 1.6568 1.6558 1.4988 1.4972 ZSI-2426-24 d3 d1 d2 Ø 0.040 - 0.236 0.012
1 5/8 1 25/32 1 1.6287 1.6248 1.7818 1.7808 1.6238 1.6222 ZSI-2629-16 Ø 0.236 - 0.472 0.019
1 5/8 1 25/32 1 1/2 1.6287 1.6248 1.7818 1.7808 1.6238 1.6222 ZSI-2629-24 Ø 0.472 - 1.18 0.031
1 3/4 1 15/16 1 1.7536 1.7497 1.9381 1.9371 1.7487 1.7471 ZSI-2831-16 Ø > 1.18 0.047
1 3/4 1 15/16 2 1.7536 1.7497 1.9381 1.9371 1.7487 1.7471 ZSI-2831-32 b2
1 7/8 2 1/16 1 1.8747 1.8786 2.0633 2.0621 1.8737 1.8721 ZSI-3033-16 Image exemplary b1
1 7/8 2 1/16 2 1.8747 1.8786 2.0633 2.0621 1.8737 1.8721 ZSI-3033-32
2 2 3/16 1 2.0040 1.9993 2.1883 2.1871 1.9981 1.9969 ZSI-3235-16 iglidur A181 Chapter „ Page 401
®
2 2 3/16 2 2.0040 1.9993 2.1883 2.1871 1.9981 1.9969 ZSI-3235-32
2 1/4 27/16 2 2.2556 2.2519 2.4377 2.4365 2.2507 2.2489 ZSI-3639-32 d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No.
3) After press-fit. Testing methods u Page 61 h13 max. min. max. min. max. min.
1/8 3/16 3/16 .3120 .0320 .1269 .1251 .1878 .1873 .1243 .1236 A181FI-0203-03
3/16 1/4 1/4 .3750 .0320 .1892 .1873 .2503 .2497 .1865 .1858 A181FI-0304-04
1/4 5/16 3/8 .5000 .0320 .2521 .2498 .3128 .3122 .2490 .2481 A181FI-0405-06
1/4 5/16 1/2 .5000 .0320 .2521 .2498 .3128 .3122 .2490 .2481 A181FI-0405-08
5/16 3/8 1/4 .5620 .0320 .3148 .3125 .3753 .3747 .3115 .3106 A181FI-0506-04
5/16 3/8 3/8 .5620 .0320 .3148 .3125 .3753 .3747 .3115 .3106 A181FI-0506-06
5/16 3/8 1/2 .5620 .0320 .3148 .3125 .3753 .3747 .3115 .3106 A181FI-0506-08
3/8 15/32 1/4 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 A181FI-0607-04
3/8 15/32 3/8 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 A181FI-0607-06
3/8 15/32 1/2 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 A181FI-0607-08
3/8 15/32 3/4 .6870 .0460 .3773 .3750 .4691 .4684 .3740 .3731 A181FI-0607-12
7/16 17/32 1/2 .7500 .0460 .4406 .4379 .5316 .5309 .4365 .4355 A181FI-0708-08
1/2 19/32 1/4 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 A181FI-0809-04
1/2 19/32 3/8 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 A181FI-0809-06
1/2 19/32 1/2 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 A181FI-0809-08
1/2 19/32 3/4 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 A181FI-0809-12
1/2 19/32 1 .8750 .0460 .5030 .5003 .5941 .5934 .4990 .4980 A181FI-0809-16
5/8 23/32 1/2 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 A181FI-1011-08
5/8 23/32 3/4 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 A181FI-1011-12
5/8 23/32 1 .9370 .0460 .6280 .6253 .7192 .7184 .6240 .6230 A181FI-1011-16
3/4 7/8 1/2 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 A181FI-1214-08
3/4 7/8 3/4 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 A181FI-1214-12
3/4 7/8 1 1.1250 .0620 .7541 .7505 .8755 .8747 .7491 .7479 A181FI-1214-16
7/8 1 1/2 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 A181FI-1416-08
7/8 1 3/4 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 A181FI-1416-12
7/8 1 1 1.2500 .0620 .8791 .8757 1.0005 .9997 .8741 .8729 A181FI-1416-16
1 1 1/8 1/2 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 A181FI-1618-08
1 1 1/8 3/4 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 A181FI-1618-12
1 1 1/8 1 1.3750 .0620 1.0041 1.0007 1.1255 1.1247 .9991 .9979 A181FI-1618-16
1 1/4 1 13/32 1 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 A181FI-2022-16
1 1/4 1 13/32 1 1/4 1.6870 .0780 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 A181FI-2022-20
1 2.0000
1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 A181FI-2426-16
.0780
1 1/2
1 21/32
ASEAN 09/2023 ASEAN 09/2023 3) 1 1/2 1 21/32 1 1/2 2.0000 .0780 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 A181FI-2426-24
After press-fit. Testing methods u Page 61
