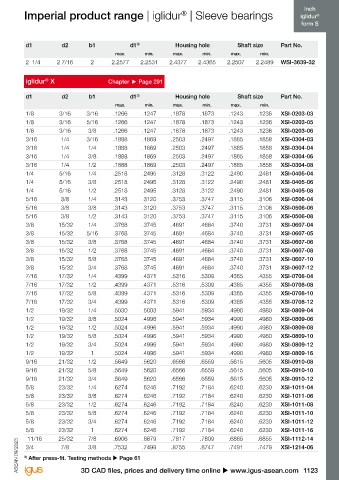

Page 1125 - IGUS Bearing

Inch Inch
®
®
iglidur Imperial product range | iglidur | Sleeve bearings Imperial product range | iglidur | Sleeve bearings iglidur
®
®
form S form S
d1 d2 b1 d1 3) Housing hole Shaft size Part No. d1 d2 b1 d1 3) Housing hole Shaft size Part No.
max. min. max. min. max. min. max. min. max. min. max. min.
5/8 23/32 1 .6280 .6253 .7192 .7184 .6240 .6230 WSI-1011-16 2 1/4 2 7/16 2 2.2577 2.2531 2.4377 2.4365 2.2507 2.2489 WSI-3639-32
11/16 25/32 3/4 .6906 .6879 .7817 .7809 .6865 .6855 WSI-1112-12
3/4 7/8 1/2 .7541 .7507 .8755 .8747 .7491 .7479 WSI-1214-08 iglidur X Chapter „ Page 291
®
3/4 7/8 3/4 .7541 .7507 .8755 .8747 .7491 .7479 WSI-1214-12
3/4 7/8 1 .7541 .7507 .8755 .8747 .7491 .7479 WSI-1214-16 d1 d2 b1 d1 3) Housing hole Shaft size Part No.
3/4 7/8 1 1/2 .7541 .7507 .8755 .8747 .7491 .7479 WSI-1214-24 max. min. max. min. max. min.
7/8 1 1/4 .8791 .8757 1.0005 .9997 .8741 .8729 WSI-1416-04 1/8 3/16 3/16 .1266 .1247 .1878 .1873 .1243 .1236 XSI-0203-03
7/8 1 3/8 .8791 .8757 1.0005 .9997 .8741 .8729 WSI-1416-06 1/8 3/16 5/16 .1266 .1247 .1878 .1873 .1243 .1236 XSI-0203-05
7/8 1 1/2 .8791 .8757 1.0005 .9997 .8741 .8729 WSI-1416-08 1/8 3/16 3/8 .1266 .1247 .1878 .1873 .1243 .1236 XSI-0203-06
7/8 1 5/8 .8791 .8757 1.0005 .9997 .8741 .8729 WSI-1416-10 3/16 1/4 3/16 .1888 .1869 .2503 .2497 .1865 .1858 XSI-0304-03
7/8 1 3/4 .8791 .8757 1.0005 .9997 .8741 .8729 WSI-1416-12 3/16 1/4 1/4 .1888 .1869 .2503 .2497 .1865 .1858 XSI-0304-04
7/8 1 1 .8791 .8757 1.0005 .9997 .8741 .8729 WSI-1416-16 3/16 1/4 3/8 .1888 .1869 .2503 .2497 .1865 .1858 XSI-0304-06
7/8 1 1 1/2 .8791 .8757 1.0005 .9997 .8741 .8729 WSI-1416-24 3/16 1/4 1/2 .1888 .1869 .2503 .2497 .1865 .1858 XSI-0304-08
1 1 1/8 3/8 1.0041 1.0007 1.1255 1.1247 .9991 .9979 WSI-1618-06 1/4 5/16 1/4 .2518 .2495 .3128 .3122 .2490 .2481 XSI-0405-04
1 1 1/8 1/2 1.0041 1.0007 1.1255 1.1247 .9991 .9979 WSI-1618-08 1/4 5/16 3/8 .2518 .2495 .3128 .3122 .2490 .2481 XSI-0405-06
1 1 1/8 3/4 1.0041 1.0007 1.1255 1.1247 .9991 .9979 WSI-1618-12 1/4 5/16 1/2 .2518 .2495 .3128 .3122 .2490 .2481 XSI-0405-08
1 1 1/8 1 1.0041 1.0007 1.1255 1.1247 .9991 .9979 WSI-1618-16 5/16 3/8 1/4 .3143 .3120 .3753 .3747 .3115 .3106 XSI-0506-04
1 1 1/8 1 5/16 1.0041 1.0007 1.1255 1.1247 .9991 .9979 WSI-1618-20 5/16 3/8 3/8 .3143 .3120 .3753 .3747 .3115 .3106 XSI-0506-06
1 1 1/8 1 3/8 1.0041 1.0007 1.1255 1.1247 .9991 .9979 WSI-1618-22 5/16 3/8 1/2 .3143 .3120 .3753 .3747 .3115 .3106 XSI-0506-08
1 1 1/8 1 1/2 1.0041 1.0007 1.1255 1.1247 .9991 .9979 WSI-1618-24 3/8 15/32 1/4 .3768 .3745 .4691 .4684 .3740 .3731 XSI-0607-04
1 1/8 1 9/32 3/4 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226 WSI-1820-12 3/8 15/32 5/16 .3768 .3745 .4691 .4684 .3740 .3731 XSI-0607-05
1 1/8 1 9/32 1 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226 WSI-1820-16 3/8 15/32 3/8 .3768 .3745 .4691 .4684 .3740 .3731 XSI-0607-06
1 1/8 1 9/32 1 1/4 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226 WSI-1820-20 3/8 15/32 1/2 .3768 .3745 .4691 .4684 .3740 .3731 XSI-0607-08
1 1/4 1 13/32 3/4 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 WSI-2022-12 3/8 15/32 5/8 .3768 .3745 .4691 .4684 .3740 .3731 XSI-0607-10
1 1/4 1 13/32 7/8 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 WSI-2022-14 3/8 15/32 3/4 .3768 .3745 .4691 .4684 .3740 .3731 XSI-0607-12
1 1/4 1 13/32 1 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 WSI-2022-16 7/16 17/32 1/4 .4399 .4371 .5316 .5309 .4365 .4355 XSI-0708-04
1 1/4 1 13/32 1 1/4 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 WSI-2022-20 7/16 17/32 1/2 .4399 .4371 .5316 .5309 .4365 .4355 XSI-0708-08
1 1/4 1 13/32 1 1/2 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 WSI-2022-24 7/16 17/32 5/8 .4399 .4371 .5316 .5309 .4365 .4355 XSI-0708-10
1 3/8 1 17/32 1 1.3798 1.3758 1.5318 1.5308 1.3738 1.3722 WSI-2224-16 7/16 17/32 3/4 .4399 .4371 .5316 .5309 .4365 .4355 XSI-0708-12
1 3/8 1 17/32 1 1/2 1.3798 1.3758 1.5318 1.5308 1.3738 1.3722 WSI-2224-24 1/2 19/32 1/4 .5030 .5003 .5941 .5934 .4990 .4980 XSI-0809-04
1 1/2 1 21/32 3/4 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 WSI-2426-12 1/2 19/32 3/8 .5024 .4996 .5941 .5934 .4990 .4980 XSI-0809-06
1 1/2 1 21/32 1 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 WSI-2426-16 1/2 19/32 1/2 .5024 .4996 .5941 .5934 .4990 .4980 XSI-0809-08
1 1/2 1 21/32 1 1/2 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 WSI-2426-24 1/2 19/32 5/8 .5024 .4996 .5941 .5934 .4990 .4980 XSI-0809-10
1 1/2 1 21/32 2 3/4 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 WSI-2426-44 1/2 19/32 3/4 .5024 .4996 .5941 .5934 .4990 .4980 XSI-0809-12
1 5/8 1 25/32 1 1.6297 1.6258 1.7818 1.7808 1.6238 1.6222 WSI-2629-16 1/2 19/32 1 .5024 .4996 .5941 .5934 .4990 .4980 XSI-0809-16
1 5/8 1 25/32 1 1/4 1.6297 1.6258 1.7818 1.7808 1.6238 1.6222 WSI-2629-20 9/16 21/32 1/2 .5649 .5620 .6566 .6559 .5615 .5605 XSI-0910-08
1 5/8 1 25/32 1 1/2 1.6297 1.6258 1.7818 1.7808 1.6238 1.6222 WSI-2629-24 9/16 21/32 5/8 .5649 .5620 .6566 .6559 .5615 .5605 XSI-0910-10
1 3/4 1 15/16 1 1.7547 1.7507 1.9381 1.9371 1.7487 1.7471 WSI-2831-16 9/16 21/32 3/4 .5649 .5620 .6566 .6559 .5615 .5605 XSI-0910-12
1 3/4 1 15/16 1 1/2 1.7547 1.7507 1.9381 1.9371 1.7487 1.7471 WSI-2831-24 5/8 23/32 1/4 .6274 .6246 .7192 .7184 .6240 .6230 XSI-1011-04
1 3/4 1 15/16 2 1.7547 1.7507 1.9381 1.9371 1.7487 1.7471 WSI-2831-32 5/8 23/32 3/8 .6274 .6246 .7192 .7184 .6240 .6230 XSI-1011-06
1 3/4 1 15/16 3 1.7547 1.7507 1.9381 1.9371 1.7487 1.7471 WSI-2831-48 5/8 23/32 1/2 .6274 .6246 .7192 .7184 .6240 .6230 XSI-1011-08
1 7/8 2 1/16 1 1.8796 1.8757 2.0621 2.0633 1.8721 1.8737 WSI-3033-16 5/8 23/32 5/8 .6274 .6246 .7192 .7184 .6240 .6230 XSI-1011-10
1 7/8 2 1/16 2 1.8796 1.8757 2.0621 2.0633 1.8721 1.8737 WSI-3033-32 5/8 23/32 3/4 .6274 .6246 .7192 .7184 .6240 .6230 XSI-1011-12
2 2 3/16 1 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 WSI-3235-16 5/8 23/32 1 .6274 .6246 .7192 .7184 .6240 .6230 XSI-1011-16
2 2 3/16 1 1/2 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 WSI-3235-24 11/16 25/32 7/8 .6906 .6879 .7817 .7809 .6865 .6855 XSI-1112-14
2 2 3/16 2 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 WSI-3235-32 3/4 7/8 3/8 .7532 .7499 .8755 .8747 .7491 .7479 XSI-1214-06

3) After press-fit. Testing methods u Page 61 ASEAN 09/2023 ASEAN 09/2023 3) After press-fit. Testing methods u Page 61
1122 Service life calculation, configuration and more u www.igus-asean.com 3D CAD files, prices and delivery time online u www.igus-asean.com 1123
