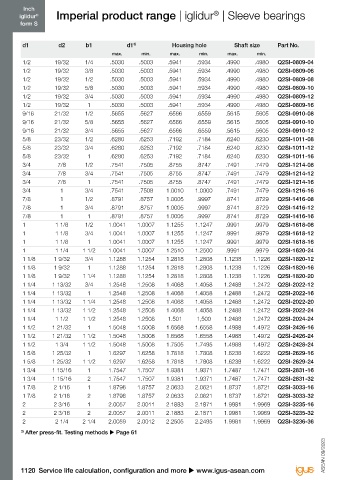

iglidur Imperial product range | iglidur | Sleeve bearings Imperial product range | iglidur | Sleeve bearings iglidur
®
®
form S form S
d1 d2 b1 d1 3) Housing hole Shaft size Part No. iglidur W300 Chapter Page 175
®
max. min. max. min. max. min.
1/2 19/32 1/4 .5030 .5003 .5941 .5934 .4990 .4980 Q2SI-0809-04 d1 d2 b1 d1 3) Housing hole Shaft size Part No.
1/2 19/32 3/8 .5030 .5003 .5941 .5934 .4990 .4980 Q2SI-0809-06 max. min. max. min. max. min.
1/2 19/32 1/2 .5030 .5003 .5941 .5934 .4990 .4980 Q2SI-0809-08 1/8 3/16 3/16 .1269 .1251 .1878 .1873 .1243 .1236 WSI-0203-03
1/2 19/32 5/8 .5030 .5003 .5941 .5934 .4990 .4980 Q2SI-0809-10 1/8 3/16 1/4 .1269 .1251 .1878 .1873 .1243 .1236 WSI-0203-04
1/2 19/32 3/4 .5030 .5003 .5941 .5934 .4990 .4980 Q2SI-0809-12 1/8 3/16 3/8 .1269 .1251 .1878 .1873 .1243 .1236 WSI-0203-06
1/2 19/32 1 .5030 .5003 .5941 .5934 .4990 .4980 Q2SI-0809-16 3/16 1/4 1/4 .1892 .1873 .2503 .2497 .1865 .1858 WSI-0304-04
9/16 21/32 1/2 .5655 .5627 .6566 .6559 .5615 .5605 Q2SI-0910-08 3/16 1/4 3/8 .1892 .1873 .2503 .2497 .1865 .1858 WSI-0304-06
9/16 21/32 5/8 .5655 .5627 .6566 .6559 .5615 .5605 Q2SI-0910-10 3/16 1/4 1/2 .1892 .1873 .2503 .2497 .1865 .1858 WSI-0304-08
9/16 21/32 3/4 .5655 .5627 .6566 .6559 .5615 .5605 Q2SI-0910-12 1/4 5/16 3/16 .2521 .2498 .3128 .3122 .2490 .2481 WSI-0405-03
5/8 23/32 1/2 .6280 .6253 .7192 .7184 .6240 .6230 Q2SI-1011-08 1/4 5/16 1/4 .2521 .2498 .3128 .3122 .2490 .2481 WSI-0405-04
5/8 23/32 3/4 .6280 .6253 .7192 .7184 .6240 .6230 Q2SI-1011-12 1/4 5/16 5/16 .2521 .2498 .3128 .3122 .2490 .2481 WSI-0405-05
5/8 23/32 1 .6280 .6253 .7192 .7184 .6240 .6230 Q2SI-1011-16 1/4 5/16 3/8 .2521 .2498 .3128 .3122 .2490 .2481 WSI-0405-06
3/4 7/8 1/2 .7541 .7505 .8755 .8747 .7491 .7479 Q2SI-1214-08 1/4 5/16 1/2 .2521 .2498 .3128 .3122 .2490 .2481 WSI-0405-08
3/4 7/8 3/4 .7541 .7505 .8755 .8747 .7491 .7479 Q2SI-1214-12 5/16 3/8 1/4 .3148 .3125 .3753 .3747 .3115 .3106 WSI-0506-04
3/4 7/8 1 .7541 .7505 .8755 .8747 .7491 .7479 Q2SI-1214-16 5/16 3/8 3/8 .3148 .3125 .3753 .3747 .3115 .3106 WSI-0506-06
3/4 1 3/4 .7541 .7508 1.0010 1.0000 .7491 .7479 Q2SI-1216-16 5/16 3/8 1/2 .3148 .3125 .3753 .3747 .3115 .3106 WSI-0506-08
7/8 1 1/2 .8791 .8757 1.0005 .9997 .8741 .8729 Q2SI-1416-08 5/16 3/8 3/4 .3148 .3125 .3753 .3747 .3115 .3106 WSI-0506-12
7/8 1 3/4 .8791 .8757 1.0005 .9997 .8741 .8729 Q2SI-1416-12 3/8 15/32 1/4 .3773 .3750 .4691 .4684 .3740 .3731 WSI-0607-04
7/8 1 1 .8791 .8757 1.0005 .9997 .8741 .8729 Q2SI-1416-16 3/8 15/32 3/8 .3773 .3750 .4691 .4684 .3740 .3731 WSI-0607-06
1 1 1/8 1/2 1.0041 1.0007 1.1255 1.1247 .9991 .9979 Q2SI-1618-08 3/8 15/32 7/16 .3773 .3750 .4691 .4684 .3740 .3731 WSI-0607-07
1 1 1/8 3/4 1.0041 1.0007 1.1255 1.1247 .9991 .9979 Q2SI-1618-12 3/8 15/32 1/2 .3773 .3750 .4691 .4684 .3740 .3731 WSI-0607-08
1 1 1/8 1 1.0041 1.0007 1.1255 1.1247 .9991 .9979 Q2SI-1618-16 3/8 15/32 5/8 .3773 .3750 .4691 .4684 .3740 .3731 WSI-0607-10
1 1 1/4 1 1/2 1.0041 1.0007 1.2510 1.2500 .9991 .9979 Q2SI-1620-24 3/8 15/32 3/4 .3773 .3750 .4691 .4684 .3740 .3731 WSI-0607-12
1 1/8 1 9/32 3/4 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226 Q2SI-1820-12 3/8 17/32 3/4 .3773 .3750 .5316 .5309 .3740 .3731 WSI-0608-12
1 1/8 1 9/32 1 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226 Q2SI-1820-16 7/16 17/32 1/4 .4406 .4379 .5316 .5309 .4365 .4355 WSI-0708-04
1 1/8 1 9/32 1 1/4 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226 Q2SI-1820-20 7/16 17/32 1/2 .4406 .4379 .5316 .5309 .4365 .4355 WSI-0708-08
1 1/4 1 13/32 3/4 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 Q2SI-2022-12 7/16 17/32 3/4 .4406 .4379 .5316 .5309 .4365 .4355 WSI-0708-12
1 1/4 1 13/32 1 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 Q2SI-2022-16 1/2 19/32 3/16 .5030 .5003 .5941 .5934 .4990 .4980 WSI-0809-03
1 1/4 1 13/32 1 1/4 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 Q2SI-2022-20 1/2 19/32 1/4 .5030 .5003 .5941 .5934 .4990 .4980 WSI-0809-04
1 1/4 1 13/32 1 1/2 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 Q2SI-2022-24 1/2 19/32 3/8 .5030 .5003 .5941 .5934 .4990 .4980 WSI-0809-06
1 1/4 1 1/2 1 1/2 1.2548 1.2508 1.501 1,500 1.2488 1.2472 Q2SI-2024-24 1/2 19/32 1/2 .5030 .5003 .5941 .5934 .4990 .4980 WSI-0809-08
1 1/2 1 21/32 1 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 Q2SI-2426-16 1/2 19/32 5/8 .5030 .5003 .5941 .5934 .4990 .4980 WSI-0809-10
1 1/2 1 21/32 1 1/2 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 Q2SI-2426-24 1/2 19/32 3/4 .5030 .5003 .5941 .5934 .4990 .4980 WSI-0809-12
1 1/2 1 3/4 1 1/2 1.5048 1.5008 1.7505 1.7495 1.4988 1.4972 Q2SI-2428-24 1/2 19/32 1 .5030 .5003 .5941 .5934 .4990 .4980 WSI-0809-16
1 5/8 1 25/32 1 1.6297 1.6258 1.7818 1.7808 1.6238 1.6222 Q2SI-2629-16 1/2 5/8 1/2 .5040 .5013 .6260 .6250 .5000 .4990 WSI-0810-08
1 5/8 1 25/32 1 1/2 1.6297 1.6258 1.7818 1.7808 1.6238 1.6222 Q2SI-2629-24 1/2 5/8 5/8 .5040 .5013 .6260 .6250 .5000 .4990 WSI-0810-10
1 3/4 1 15/16 1 1.7547 1.7507 1.9381 1.9371 1.7487 1.7471 Q2SI-2831-16 1/2 5/8 3/4 .5040 .5013 .6260 .6250 .5000 .4990 WSI-0810-12
1 3/4 1 15/16 2 1.7547 1.7507 1.9381 1.9371 1.7487 1.7471 Q2SI-2831-32 1/2 5/8 1 .5040 .5013 .6260 .6250 .5000 .4990 WSI-0810-16
1 7/8 2 1/16 1 1.8796 1.8757 2.0633 2.0621 1.8737 1.8721 Q2SI-3033-16 9/16 21/32 1/2 .5655 .5627 .6566 .6559 .5615 .5605 WSI-0910-08
1 7/8 2 1/16 2 1.8796 1.8757 2.0633 2.0621 1.8737 1.8721 Q2SI-3033-32 9/16 21/32 5/8 .5655 .5627 .6566 .6559 .5615 .5605 WSI-0910-10
2 2 3/16 1 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 Q2SI-3235-16 9/16 21/32 3/4 .5655 .5627 .6566 .6559 .5615 .5605 WSI-0910-12
2 2 3/16 2 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 Q2SI-3235-32 5/8 23/32 1/4 .6280 .6253 .7192 .7184 .6240 .6230 WSI-1011-04
2 2 1/4 2 1/4 2.0059 2.0012 2.2505 2.2495 1.9981 1.9969 Q2SI-3236-36 5/8 23/32 3/8 .6280 .6253 .7192 .7184 .6240 .6230 WSI-1011-06
3) After press-fit. Testing methods u Page 61 5/8 23/32 1/2 .6280 .6253 .7192 .7184 .6240 .6230 WSI-1011-08
.7184
.7192
WSI-1011-10
.6230
.6240
.6253
23/32
5/8
.6280
5/8
ASEAN 09/2023 ASEAN 09/2023 3) 5/8 23/32 3/4 .6280 .6253 .7192 .7184 .6240 .6230 WSI-1011-12
After press-fit. Testing methods u Page 61
