Page 1148 - IGUS Bearing

Inch Inch
®
®

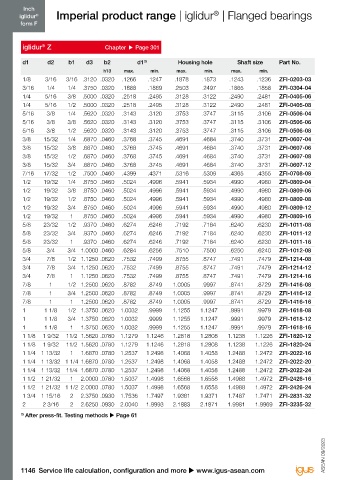

iglidur Imperial product range | iglidur | Flanged bearings Imperial product range | iglidur | Thrust washers iglidur
®
®
form F form T
d1
Thrust washer (form T)
iglidur Z Chapter „ Page 301 s
®
d2
d1 d2 b1 d3 b2 d1 3) Housing hole Shaft size Part No.
h13 max. min. max. min. max. min.
1/8 3/16 3/16 .3120 .0320 .1266 .1247 .1878 .1873 .1243 .1236 ZFI-0203-03
3/16 1/4 1/4 .3750 .0320 .1888 .1869 .2503 .2497 .1865 .1858 ZFI-0304-04 d5
1/4 5/16 3/8 .5000 .0320 .2518 .2495 .3128 .3122 .2490 .2481 ZFI-0405-06 d4
1/4 5/16 1/2 .5000 .0320 .2518 .2495 .3128 .3122 .2490 .2481 ZFI-0405-08 d6
5/16 3/8 1/4 .5620 .0320 .3143 .3120 .3753 .3747 .3115 .3106 ZFI-0506-04 h
5/16 3/8 3/8 .5620 .0320 .3143 .3120 .3753 .3747 .3115 .3106 ZFI-0506-06 Image exemplary
5/16 3/8 1/2 .5620 .0320 .3143 .3120 .3753 .3747 .3115 .3106 ZFI-0506-08
3/8 15/32 1/4 .6870 .0460 .3768 .3745 .4691 .4684 .3740 .3731 ZFI-0607-04 iglidur A200 Chapter „ Page 433
®
3/8 15/32 3/8 .6870 .0460 .3768 .3745 .4691 .4684 .3740 .3731 ZFI-0607-06
3/8 15/32 1/2 .6870 .0460 .3768 .3745 .4691 .4684 .3740 .3731 ZFI-0607-08 d1 d1 3) d2 Øs Part No.
3/8 15/32 3/4 .6870 .0460 .3768 .3745 .4691 .4684 .3740 .3731 ZFI-0607-12 (nominal) max. min. max. min.
7/16 17/32 1/2 .7500 .0460 .4399 .4371 .5316 .5309 .4365 .4355 ZFI-0708-08 1/4 .2610 .2551 .6201 .6094 .0902 ATI-04
1/2 19/32 1/4 .8750 .0460 .5024 .4996 .5941 .5934 .4990 .4980 ZFI-0809-04 3/8 .3943 .3813 .7500 .7370 .0902 ATI-06
1/2 19/32 3/8 .8750 .0460 .5024 .4996 .5941 .5934 .4990 .4980 ZFI-0809-06 1/2 .5102 .5031 .8201 .8071 .0902 ATI-08
1/2 19/32 1/2 .8750 .0460 .5024 .4996 .5941 .5934 .4990 .4980 ZFI-0809-08 3/4 .7673 .7598 1.0654 1.0500 .0941 ATI-12
1/2 19/32 3/4 .8750 .0460 .5024 .4996 .5941 .5934 .4990 .4980 ZFI-0809-12 1 1.0268 1.0197 1.5000 1.4843 .1252 ATI-16
1/2 19/32 1 .8750 .0460 .5024 .4996 .5941 .5934 .4990 .4980 ZFI-0809-16
5/8 23/32 1/2 .9370 .0460 .6274 .6246 .7192 .7184 .6240 .6230 ZFI-1011-08 iglidur G Chapter „ Page 85
®
5/8 23/32 3/4 .9370 .0460 .6274 .6246 .7192 .7184 .6240 .6230 ZFI-1011-12
5/8 23/32 1 .9370 .0460 .6274 .6246 .7192 .7184 .6240 .6230 ZFI-1011-16 d1 d2 s d4 d5 h d6 Part No.
5/8 3/4 3/4 1.0000 .0460 .6284 .6256 .7510 .7500 .6250 .6240 ZFI-1012-08 +.010 -.010 -.0020 ±.005 .015 + .005 +.008 +.005
3/4 7/8 1/2 1.1250 .0620 .7532 .7499 .8755 .8747 .7491 .7479 ZFI-1214-08 .5000 .8750 .0585 .6920 .0670 .0400 .8750 GTI-0814-01
3/4 7/8 3/4 1.1250 .0620 .7532 .7499 .8755 .8747 .7491 .7479 ZFI-1214-12 .6250 1.1250 .0585 .8800 .0990 .0400 1,125 GTI-1018-01
3/4 7/8 1 1.1250 .0620 .7532 .7499 .8755 .8747 .7491 .7479 ZFI-1214-16 .7500 1.2500 .0585 1,005 .0990 .0400 1,250 GTI-1220-01
7/8 1 1/2 1.2500 .0620 .8782 .8749 1.0005 .9997 .8741 .8729 ZFI-1416-08 .8750 1.5000 .0585 1.192 .1300 .0400 1,500 GTI-1424-01
7/8 1 3/4 1.2500 .0620 .8782 .8749 1.0005 .9997 .8741 .8729 ZFI-1416-12 1.0000 1.7500 .0585 1.380 .1300 .0400 1,750 GTI-1628-01
7/8 1 1 1.2500 .0620 .8782 .8749 1.0005 .9997 .8741 .8729 ZFI-1416-16 1.2500 2.1250 .0585 1.692 .1610 .0400 2.125 GTI-2034-01
1 1 1/8 1/2 1.3750 .0620 1.0032 .9999 1.1255 1.1247 .9991 .9979 ZFI-1618-08 1.5000 2.5000 .0585 2.005 .1920 .0400 2,500 GTI-2440-01
1 1 1/8 3/4 1.3750 .0620 1.0032 .9999 1.1255 1.1247 .9991 .9979 ZFI-1618-12 1.7500 2.7500 .0585 2.255 .1920 .0400 2,750 GTI-2844-01
1 1 1/8 1 1.3750 .0620 1.0032 .9999 1.1255 1.1247 .9991 .9979 ZFI-1618-16 2.0000 3.0000 .0895 2.505 .1920 .0700 3,000 GTI-3248-01
1 1/8 1 9/32 11/2 1.5620 .0780 1.1279 1.1246 1.2818 1.2808 1.1238 1.1226 ZFI-1820-12
1 1/8 1 9/32 11/2 1.5620 .0780 1.1279 1.1246 1.2818 1.2808 1.1238 1.1226 ZFI-1820-24 iglidur M250 Chapter „ Page 111
®
1 1/4 1 13/32 1 1.6870 .0780 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 ZFI-2022-16
1 1/4 1 13/32 1 1/4 1.6870 .0780 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 ZFI-2022-20 d1 d1 3) d2 Øs Part No.
1 1/4 1 13/32 11/4 1.6870 .0780 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 ZFI-2022-24 (nominal) max. min. max. min.
1 1/2 1 21/32 1 2.0000 .0780 1.5037 1.4998 1.6568 1.6558 1.4988 1.4972 ZFI-2426-16 1/4 .2609 .2550 .6200 .6094 .0900 MTI-04
1 1/2 1 21/32 1 1/2 2.0000 .0780 1.5037 1.4998 1.6568 1.6558 1.4988 1.4972 ZFI-2426-24 5/16 .3271 .3189 .6874 .6767 .0900 MTI-05
1 3/4 1 15/16 2 2.3750 .0930 1.7536 1.7497 1.9381 1.9371 1.7487 1.7471 ZFI-2831-32 3/8 .3940 .3810 .7409 .7394 .0900 MTI-06
2 2 3/16 2 2.6250 .0930 2.0040 1.9993 2.1883 2.1871 1.9981 1.9969 ZFI-3235-32 1/2 .5101 .5030 .8200 .8070 .0900 MTI-08
3) After press-fit. Testing methods u Page 61 5/8 .6371 .6300 1.0000 .9870 .0940 MTI-10
3/4 .7675 .7600 1.0630 1.0500 .0940 MTI-12
1 1.0200 1.0100 1.5000 1.4843 .1250 MTI-16
2.1400
MTI-20
.0980
2.1220
1.2998
1 1/4
1.2900
ASEAN 09/2023 ASEAN 09/2023 3) 1 1/2 1.6000 1.5500 2.6000 2.5500 .1250 MTI-24
After press-fit. Testing methods u Page 61
1146 Service life calculation, configuration and more u www.igus-asean.com 3D CAD files, prices and delivery time online u www.igus-asean.com 1147
