P. 212

iglidur  J350
            ®
         +180 °C
          60MPa

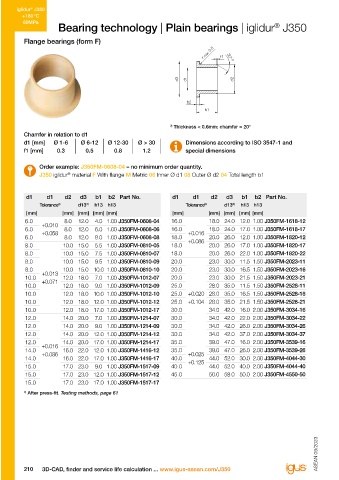

                      Bearing technology | Plain bearings | iglidur  J350
                                                                                                  ®
          Flange bearings (form F)
                                                                         r max. 0.5  f1  30°





                                                                d3  d1             d2



                                                                   b2
                                                                         b1

                                                             2)  Thickness < 0.6mm: chamfer = 20°
          Chamfer in relation to d1
          d1 [mm]   Ø 1-6     Ø 6-12   Ø 12-30    Ø > 30           Dimensions according to ISO 3547-1 and
          f1 [mm]    0.3       0.5        0.8       1.2            special dimensions


               Order example: J350FM-0608-04 – no minimum order quantity.
               J350 iglidur  material F With flange M Metric 06 Inner Ø d1 08 Outer Ø d2 04 Total length b1                         Ideal for plastic shafts
                         ®
                                                                                                                                    Wear-resistant at medium temperatures
           d1     d1    d2    d3   b1   b2 Part No.           d1     d1    d2    d3   b1   b2 Part No.
               Tolerance 3)  d13 3)  h13  h13                      Tolerance 3)  d13 3)  h13  h13
           [mm]        [mm] [mm] [mm] [mm]                    [mm]         [mm] [mm] [mm] [mm]                                      and loads
          6.0   +0.010   8.0  12.0  4.0 1.00 J350FM-0608-04   16.0         18.0 24.0 12.0 1.00 J350FM-1618-12
          6.0   +0.058  8.0  12.0  6.0 1.00 J350FM-0608-06    16.0  +0.016   18.0 24.0 17.0 1.00 J350FM-1618-17                                     ®
          6.0           8.0  12.0  8.0 1.00 J350FM-0608-08    18.0  +0.086  20.0 26.0 12.0 1.00 J350FM-1820-12                      iglidur  J260
          8.0           10.0 15.0  5.5 1.00 J350FM-0810-05    18.0         20.0 26.0 17.0 1.00 J350FM-1820-17
          8.0           10.0 15.0  7.5 1.00 J350FM-0810-07    18.0         20.0 26.0 22.0 1.00 J350FM-1820-22
          8.0           10.0 15.0  9.5 1.00 J350FM-0810-09    20.0         23.0 30.0 11.5 1.50 J350FM-2023-11
          8.0   +0.013   10.0 15.0 10.0 1.00 J350FM-0810-10   20.0         23.0 30.0 16.5 1.50 J350FM-2023-16                       When to use it?
          10.0  +0.071  12.0 18.0  7.0 1.00 J350FM-1012-07    20.0         23.0 30.0 21.5 1.50 J350FM-2023-21                       ●  When polymer shafts are used
          10.0          12.0 18.0  9.0 1.00 J350FM-1012-09    25.0         28.0 35.0 11.5 1.50 J350FM-2528-11                       ●  When the temperature rating of iglidur  J is not sufficient
                                                                                                                                                                       ®
          10.0         12.0 18.0 10.0 1.00 J350FM-1012-10     25.0  +0.020  28.0 35.0 16.5 1.50 J350FM-2528-16                      ●  When a plain bearing with low coefficient of friction is required
          10.0         12.0 18.0 12.0 1.00 J350FM-1012-12     25.0  +0.104 28.0 35.0 21.5 1.50 J350FM-2528-21                       ●  When high wear resistance is required at medium loads
          10.0         12.0 18.0 17.0 1.00 J350FM-1012-17     30.0         34.0 42.0 16.0 2.00 J350FM-3034-16                       ●  When good liquid media resistance is required
          12.0         14.0 20.0   7.0 1.00 J350FM-1214-07    30.0         34.0 42.0 22.0 2.00 J350FM-3034-22
          12.0         14.0 20.0   9.0 1.00 J350FM-1214-09    30.0         34.0 42.0 26.0 2.00 J350FM-3034-26
          12.0         14.0 20.0 12.0 1.00 J350FM-1214-12     30.0         34.0 42.0 37.0 2.00 J350FM-3034-37
          12.0         14.0 20.0 17.0 1.00 J350FM-1214-17     35.0         39.0 47.0 16.0 2.00 J350FM-3539-16                       When not to use it?
          14.0  +0.016   16.0 22.0 12.0 1.00 J350FM-1416-12   35.0  +0.025   39.0 47.0 26.0 2.00 J350FM-3539-26                     ●  When high surface pressures occur
                +0.086
          14.0         16.0 22.0 17.0 1.00 J350FM-1416-17     40.0  +0.125  44.0 52.0 30.0 2.00 J350FM-4044-30                         iglidur  Z
                                                                                                                                             ®
          15.0         17.0 23.0   9.0 1.00 J350FM-1517-09    40.0         44.0 52.0 40.0 2.00 J350FM-4044-40                       ●  When permanent temperatures exceed +120°C
          15.0         17.0 23.0 12.0 1.00 J350FM-1517-12     45.0         50.0 58.0 50.0 2.00 J350FM-4550-50                          iglidur  J350
                                                                                                                                             ®
          15.0         17.0 23.0 17.0 1.00 J350FM-1517-17                                                                           ●  When universal wear resistance is required
                                                                                                                                             ®
          3)  After press-fit. Testing methods, page 61                                                                                iglidur  J
