iglidur J260 iglidur J260
®
®
+120°C +120°C
40MPa 40MPa

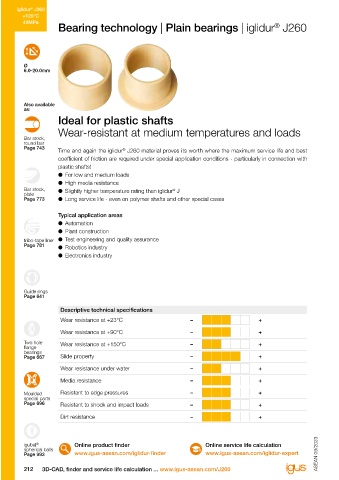

Bearing technology | Plain bearings | iglidur J260 Technical data
®
General properties Testing method

Density g/cm³ 1.35 -100 °C up to
Ø Colour yellow +120 °C
6.0-20.0mm
Max. moisture absorption at +23°C/50% r.h. % weight 0.2 DIN 53495
Max. moisture absorption % weight 0.4
Coefficient of friction, dynamic, against steel µ 0.06-0.20 40MPa
pv value, max. (dry) MPa · m/s 0.35
Also available
as: Mechanical properties
Ideal for plastic shafts Flexural modulus MPa 2,200 DIN 53457
DIN 53452
MPa
60
Flexural strength at +20°C
Wear-resistant at medium temperatures and loads Compressive strength MPa 50
Bar stock, Max. permissible surface pressure (+20°C) MPa 40
round bar
Page 743 Shore D hardness 77 DIN 53505
Time and again the iglidur J260 material proves its worth where the maximum service life and best
®
coefficient of friction are required under special application conditions - particularly in connection with Physical and thermal properties
plastic shafts! Max. application temperature long-term °C +120 FOOD
● For low and medium loads Max. application temperature short-term °C +140
● High media resistance Min. application temperature °C -100
Bar stock, ● Slightly higher temperature rating than iglidur J Thermal conductivity W/m · K 0.24 ASTM C 177
®
plate -1 -5
Page 773 ● Long service life - even on polymer shafts and other special cases Coefficient of thermal expansion (at +23°C) K · 10 13 DIN 53752
Electrical properties
Typical application areas Specific transitional resistance Ωcm > 10 12 DIN IEC 93
● Automation Surface resistance Ω > 10 10 DIN 53482
● Plant construction Table 01: Material properties
tribo-tape liner ● Test engineering and quality assurance
Page 781 ● Robotics industry Similar to the classic, iglidur J, iglidur J260 is an Resistance to weathering
®
®
● Electronics industry endurance runner with outstanding wear behaviour, but iglidur J260 plain bearings are continuously resistant
®
provides increased reserves at its long-term application to weathering. The material properties are only slightly
temperature of +120°C. affected. Possible discolourations are only superficial.

Moisture absorption Mechanical properties
Guide rings
®
Page 641 The moisture absorption of iglidur J260 plain bearings When temperatures increase, the compressive strength of
in ambient conditions is approximately 0.2% weight. The iglidur J260 plain bearings decreases. Diagram 02 shows
®
Descriptive technical specifications saturation limit submerged in water is 0.4% weight. These this inverse relationship. The maximum recommended
Wear resistance at +23°C – + values are so low that a moisture expansion need to be surface pressure is a mechanical material parameter. No
considered only in extreme cases. conclusions regarding the tribological properties can be
Wear resistance at +90°C – +
drawn from this.
Two hole Wear resistance at +150°C – + Vacuum Diagram 03 shows the elastic deformation of iglidur J260
®
flange
bearings In vacuum, any present moisture is released as vapour. Use as a function of radial pressure. At the recommended
Page 667 Slide property – +
®
in vacuum is only possible with dehumidified iglidur J260 maximum surface pressure of 40MPa the deformation is
Wear resistance under water – + bearings. less than 2.5% at room temperature. A possible deformation
could be, among others, dependant on the duty cycle
Media resistance – +
Radiation resistance of the load.
Moulded Resistant to edge pressures – + They are resistant up to a radiation intensity of 3 · 10² Gy. Surface pressure, page 45
special parts
Page 696 Resistant to shock and impact loads – +

Dirt resistance – +

®
igubal Online product finder Online service life calculation
spherical balls
Page 993 www.igus-asean.com/iglidur-finder www.igus-asean.com/iglidur-expert ASEAN 09/2023 ASEAN 09/2023
212 3D-CAD, finder and service life calculation ... www.igus-asean.com/J260 Lubrication-free made easy ... from stock ... no minimum order quantity 213
