iglidur H370 iglidur H370
®
®
+200°C +200°C
75MPa 75MPa

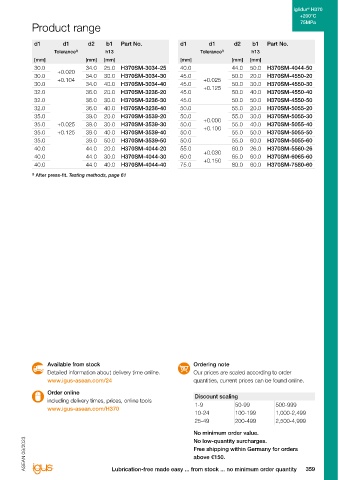

Bearing technology | Plain bearings | iglidur H370 Product range
®
Sleeve bearings (form S) d1 d1 d2 b1 Part No. d1 d1 d2 b1 Part No.

Tolerance 3) h13 Tolerance 3) h13
f1 30°
[mm] [mm] [mm] [mm] [mm] [mm]
30.0 +0.020 34.0 25.0 H370SM-3034-25 40.0 44.0 50.0 H370SM-4044-50
30.0 34.0 30.0 H370SM-3034-30 45.0 50.0 20.0 H370SM-4550-20
d1 0.5 d2 30.0 +0.104 34.0 40.0 H370SM-3034-40 45.0 +0.025 50.0 30.0 H370SM-4550-30
32.0 36.0 20.0 H370SM-3236-20 45.0 +0.125 50.0 40.0 H370SM-4550-40
30°
b1 32.0 36.0 30.0 H370SM-3236-30 45.0 50.0 50.0 H370SM-4550-50
32.0 36.0 40.0 H370SM-3236-40 50.0 55.0 20.0 H370SM-5055-20
35.0 39.0 20.0 H370SM-3539-20 50.0 +0.000 55.0 30.0 H370SM-5055-30
35.0 +0.025 39.0 30.0 H370SM-3539-30 50.0 55.0 40.0 H370SM-5055-40
2) Thickness < 0.6mm: chamfer = 20° +0.100
Chamfer in relation to d1 35.0 +0.125 39.0 40.0 H370SM-3539-40 50.0 55.0 50.0 H370SM-5055-50
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and 35.0 39.0 50.0 H370SM-3539-50 50.0 55.0 60.0 H370SM-5055-60
f1 [mm] 0.3 0.5 0.8 1.2 special dimensions 40.0 44.0 20.0 H370SM-4044-20 55.0 +0.030 60.0 26.0 H370SM-5560-26
40.0 44.0 30.0 H370SM-4044-30 60.0 +0.150 65.0 60.0 H370SM-6065-60
Order example: H370SM-0304-03 – no minimum order quantity. 40.0 44.0 40.0 H370SM-4044-40 75.0 80.0 60.0 H370SM-7580-60
H370 iglidur material S Cylindrical M Metric 03 Inner Ø d1 04 Outer Ø d2 03 Total length b1 3) After press-fit. Testing methods, page 61
®

d1 d1 d2 b1 Part No. d1 d1 d2 b1 Part No.
Tolerance 3) h13 Tolerance 3) h13
[mm] [mm] [mm] [mm] [mm] [mm]
+0.006 15.0 17.0 20.0 H370SM-1517-20
3.0 4.5 3.0 H370SM-0304-03
+0.046 15.0 17.0 25.0 H370SM-1517-25
4.0 5.5 4.0 H370SM-0405-04 16.0 18.0 15.0 H370SM-1618-15
4.0 5.5 6.0 H370SM-0405-06 16.0 +0.016 18.0 20.0 H370SM-1618-20
4.0 5.5 12.0 H370SM-0405-12 16.0 +0.086 18.0 25.0 H370SM-1618-25
5.0 +0.010 7.0 5.0 H370SM-0507-05 18.0 20.0 15.0 H370SM-1820-15
5.0 +0.058 7.0 10.0 H370SM-0507-10 18.0 20.0 20.0 H370SM-1820-20
6.0 8.0 6.0 H370SM-0608-06 18.0 20.0 25.0 H370SM-1820-25
6.0 8.0 8.0 H370SM-0608-08 20.0 23.0 10.0 H370SM-2023-10
6.0 8.0 10.0 H370SM-0608-10 20.0 23.0 15.0 H370SM-2023-15
8.0 10.0 8.0 H370SM-0810-08 20.0 23.0 20.0 H370SM-2023-20
8.0 10.0 10.0 H370SM-0810-10 20.0 23.0 25.0 H370SM-2023-25
8.0 10.0 12.0 H370SM-0810-12 20.0 23.0 30.0 H370SM-2023-30
8.0 +0.013 10.0 15.0 H370SM-0810-15 22.0 25.0 15.0 H370SM-2225-15
10.0 +0.071 12.0 8.0 H370SM-1012-08 22.0 25.0 20.0 H370SM-2225-20
10.0 12.0 10.0 H370SM-1012-10 22.0 25.0 25.0 H370SM-2225-25
10.0 12.0 12.0 H370SM-1012-12 22.0 25.0 30.0 H370SM-2225-30
10.0 12.0 15.0 H370SM-1012-15 24.0 +0.020 27.0 15.0 H370SM-2427-15
10.0 12.0 20.0 H370SM-1012-20 24.0 +0.104 27.0 20.0 H370SM-2427-20 Available from stock Ordering note
12.0 14.0 10.0 H370SM-1214-10 24.0 27.0 25.0 H370SM-2427-25 Detailed information about delivery time online. Our prices are scaled according to order
12.0 14.0 12.0 H370SM-1214-12 24.0 27.0 30.0 H370SM-2427-30 www.igus-asean.com/24 quantities, current prices can be found online.
12.0 14.0 15.0 H370SM-1214-15 25.0 28.0 15.0 H370SM-2528-15 Order online
12.0 14.0 20.0 H370SM-1214-20 25.0 28.0 20.0 H370SM-2528-20 including delivery times, prices, online tools Discount scaling
13.0 +0.016 15.0 10.0 H370SM-1315-10 25.0 28.0 25.0 H370SM-2528-25 www.igus-asean.com/H370 1-9 50-99 500-999
13.0 +0.086 15.0 20.0 H370SM-1315-20 25.0 28.0 30.0 H370SM-2528-30 10-24 100-199 1,000-2,499
14.0 16.0 15.0 H370SM-1416-15 28.0 32.0 20.0 H370SM-2832-20 25-49 200-499 2,500-4,999
14.0 16.0 20.0 H370SM-1416-20 28.0 32.0 25.0 H370SM-2832-25 No minimum order value.
14.0 16.0 25.0 H370SM-1416-25 28.0 32.0 30.0 H370SM-2832-30 No low-quantity surcharges.
15.0 17.0 15.0 H370SM-1517-15 30.0 34.0 20.0 H370SM-3034-20 Free shipping within Germany for orders

3) After press-fit. Testing methods, page 61 ASEAN 09/2023 ASEAN 09/2023 above €150.
