iglidur H370 iglidur H370
®
®
+200°C +200°C
75MPa 75MPa

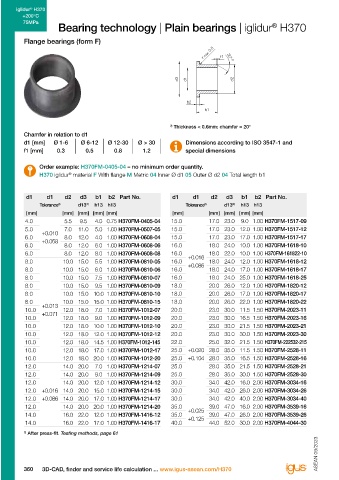

Bearing technology | Plain bearings | iglidur H370 Product range
®
Flange bearings (form F) d1 d1 d2 d3 b1 b2 Part No. d1 d1 d2 d3 b1 b2 Part No.
r max. 0.5 Tolerance 3) d13 3) h13 h13 Tolerance 3) d13 3) h13 h13
f1
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
30°
40.0 +0.025 44.0 52.0 40.0 2.00 H370FM-4044-40 60.0 +0.030 65.0 73.0 50.0 2.00 H370FM-6065-50
45.0 50.0 58.0 50.0 2.00 H370FM-4550-50 70.0 +0.150 75.0 83.0 50.0 2.00 H370FM-7075-50
d3 d1 d2 +0.125
50.0 55.0 63.0 50.0 2.00 H370FM-5055-50
3) After press-fit. Testing methods, page 61
b2
b1

2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and
f1 [mm] 0.3 0.5 0.8 1.2 special dimensions

Order example: H370FM-0405-04 – no minimum order quantity.
H370 iglidur material F With flange M Metric 04 Inner Ø d1 05 Outer Ø d2 04 Total length b1
®

d1 d1 d2 d3 b1 b2 Part No. d1 d1 d2 d3 b1 b2 Part No.
Tolerance 3) d13 3) h13 h13 Tolerance 3) d13 3) h13 h13
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
4.0 5.5 9.5 4.0 0.75 H370FM-0405-04 15.0 17.0 23.0 9.0 1.00 H370FM-1517-09
5.0 +0.010 7.0 11.0 5.0 1.00 H370FM-0507-05 15.0 17.0 23.0 12.0 1.00 H370FM-1517-12
6.0 +0.058 8.0 12.0 4.0 1.00 H370FM-0608-04 15.0 17.0 23.0 17.0 1.00 H370FM-1517-17
6.0 8.0 12.0 6.0 1.00 H370FM-0608-06 16.0 18.0 24.0 10.0 1.00 H370FM-1618-10
6.0 8.0 12.0 8.0 1.00 H370FM-0608-08 16.0 +0.016 18.0 22.0 10.0 1.00 H370FM-161822-10
8.0 10.0 15.0 5.5 1.00 H370FM-0810-05 16.0 +0.086 18.0 24.0 12.0 1.00 H370FM-1618-12
8.0 10.0 15.0 6.0 1.00 H370FM-0810-06 16.0 18.0 24.0 17.0 1.00 H370FM-1618-17
8.0 10.0 15.0 7.5 1.00 H370FM-0810-07 16.0 18.0 24.0 25.0 1.00 H370FM-1618-25
8.0 10.0 15.0 9.5 1.00 H370FM-0810-09 18.0 20.0 26.0 12.0 1.00 H370FM-1820-12
8.0 10.0 15.0 10.0 1.00 H370FM-0810-10 18.0 20.0 26.0 17.0 1.00 H370FM-1820-17
8.0 +0.013 10.0 15.0 15.0 1.00 H370FM-0810-15 18.0 20.0 26.0 22.0 1.00 H370FM-1820-22
10.0 +0.071 12.0 18.0 7.0 1.00 H370FM-1012-07 20.0 23.0 30.0 11.5 1.50 H370FM-2023-11
10.0 12.0 18.0 9.0 1.00 H370FM-1012-09 20.0 23.0 30.0 16.5 1.50 H370FM-2023-16
10.0 12.0 18.0 10.0 1.00 H370FM-1012-10 20.0 23.0 30.0 21.5 1.50 H370FM-2023-21
10.0 12.0 18.0 12.0 1.00 H370FM-1012-12 20.0 23.0 30.0 30.0 1.50 H370FM-2023-30
10.0 12.0 18.0 14.5 1.00 H370FM-1012-145 22.0 25.0 32.0 21.5 1.50 H370FM-222532-215
10.0 12.0 18.0 17.0 1.00 H370FM-1012-17 25.0 +0.020 28.0 35.0 11.5 1.50 H370FM-2528-11
10.0 12.0 18.0 20.0 1.00 H370FM-1012-20 25.0 +0.104 28.0 35.0 16.5 1.50 H370FM-2528-16
12.0 14.0 20.0 7.0 1.00 H370FM-1214-07 25.0 28.0 35.0 21.5 1.50 H370FM-2528-21 Available from stock Ordering note
12.0 14.0 20.0 9.0 1.00 H370FM-1214-09 25.0 28.0 35.0 30.0 1.50 H370FM-2528-30 Detailed information about delivery time online. Our prices are scaled according to order
12.0 14.0 20.0 12.0 1.00 H370FM-1214-12 30.0 34.0 42.0 16.0 2.00 H370FM-3034-16 www.igus-asean.com/24 quantities, current prices can be found online.
12.0 +0.016 14.0 20.0 15.0 1.00 H370FM-1214-15 30.0 34.0 42.0 26.0 2.00 H370FM-3034-26 Order online
12.0 +0.086 14.0 20.0 17.0 1.00 H370FM-1214-17 30.0 34.0 42.0 40.0 2.00 H370FM-3034-40 including delivery times, prices, online tools Discount scaling
12.0 14.0 20.0 20.0 1.00 H370FM-1214-20 35.0 +0.025 39.0 47.0 16.0 2.00 H370FM-3539-16 www.igus-asean.com/H370 1-9 50-99 500-999
14.0 16.0 22.0 12.0 1.00 H370FM-1416-12 35.0 +0.125 39.0 47.0 26.0 2.00 H370FM-3539-26 10-24 100-199 1,000-2,499
14.0 16.0 22.0 17.0 1.00 H370FM-1416-17 40.0 44.0 52.0 30.0 2.00 H370FM-4044-30 25-49 200-499 2,500-4,999
3) After press-fit. Testing methods, page 61 No minimum order value.
ASEAN 09/2023 ASEAN 09/2023 Free shipping within Germany for orders
No low-quantity surcharges.

above €150.
360 3D-CAD, finder and service life calculation ... www.igus-asean.com/H370 Lubrication-free made easy ... from stock ... no minimum order quantity 361
