iglidur  H370                                                                                                                                                                                                            iglidur  H370
            ®
                                                                                                                                                                                                                                    ®
         +200°C                                                                                                                                                                                                                   +200°C
          75MPa                                                                                                                                                                                                                   75MPa

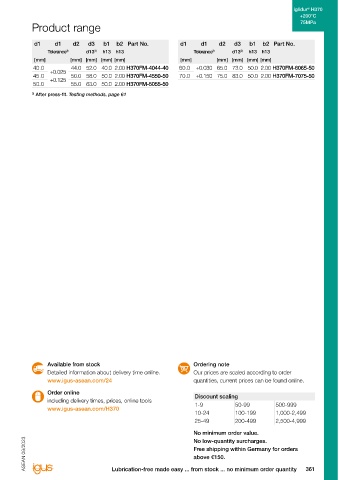

                      Bearing technology | Plain bearings | iglidur  H370                                                           Product range
                                                                                                 ®
          Flange bearings (form F)                                                                                                  d1      d1    d2   d3    b1  b2 Part No.            d1     d1    d2    d3   b1   b2 Part No.
                                                                         r max. 0.5                                                      Tolerance 3)  d13 3)  h13  h13                      Tolerance 3)  d13 3)  h13  h13
                                                                               f1
                                                                                                                                    [mm]         [mm] [mm] [mm] [mm]                    [mm]         [mm] [mm] [mm] [mm]
                                                                                 30°
                                                                                                                                    40.0  +0.025   44.0 52.0 40.0 2.00 H370FM-4044-40  60.0  +0.030  65.0 73.0 50.0 2.00 H370FM-6065-50
                                                                                                                                    45.0         50.0 58.0 50.0 2.00 H370FM-4550-50    70.0  +0.150 75.0 83.0 50.0 2.00 H370FM-7075-50
                                                                d3  d1             d2                                                     +0.125
                                                                                                                                    50.0         55.0 63.0 50.0 2.00 H370FM-5055-50
                                                                                                                                    3)  After press-fit. Testing methods, page 61
                                                                   b2
                                                                         b1

                                                             2)  Thickness < 0.6mm: chamfer = 20°
          Chamfer in relation to d1
          d1 [mm]   Ø 1-6     Ø 6-12   Ø 12-30    Ø > 30           Dimensions according to ISO 3547-1 and
          f1 [mm]    0.3       0.5        0.8       1.2            special dimensions


               Order example: H370FM-0405-04 – no minimum order quantity.
               H370 iglidur  material F With flange M Metric 04 Inner Ø d1 05 Outer Ø d2 04 Total length b1
                          ®

           d1     d1    d2    d3   b1   b2 Part No.           d1     d1    d2    d3   b1   b2 Part No.
               Tolerance 3)  d13 3)  h13  h13                      Tolerance 3)  d13 3)  h13  h13
           [mm]        [mm] [mm] [mm] [mm]                    [mm]         [mm] [mm] [mm] [mm]
          4.0           5.5  9.5   4.0 0.75 H370FM-0405-04    15.0         17.0 23.0  9.0 1.00 H370FM-1517-09
          5.0   +0.010   7.0  11.0  5.0 1.00 H370FM-0507-05   15.0         17.0 23.0 12.0 1.00 H370FM-1517-12
          6.0   +0.058  8.0  12.0  4.0 1.00 H370FM-0608-04    15.0         17.0 23.0 17.0 1.00 H370FM-1517-17
          6.0           8.0  12.0  6.0 1.00 H370FM-0608-06    16.0         18.0 24.0 10.0 1.00 H370FM-1618-10
          6.0           8.0  12.0  8.0 1.00 H370FM-0608-08    16.0  +0.016   18.0 22.0 10.0 1.00 H370FM-161822-10
          8.0           10.0 15.0  5.5 1.00 H370FM-0810-05    16.0  +0.086  18.0 24.0 12.0 1.00 H370FM-1618-12
          8.0           10.0 15.0  6.0 1.00 H370FM-0810-06    16.0         18.0 24.0 17.0 1.00 H370FM-1618-17
          8.0           10.0 15.0  7.5 1.00 H370FM-0810-07    16.0         18.0 24.0 25.0 1.00 H370FM-1618-25
          8.0           10.0 15.0  9.5 1.00 H370FM-0810-09    18.0         20.0 26.0 12.0 1.00 H370FM-1820-12
          8.0          10.0 15.0 10.0 1.00 H370FM-0810-10     18.0         20.0 26.0 17.0 1.00 H370FM-1820-17
          8.0   +0.013   10.0 15.0 15.0 1.00 H370FM-0810-15   18.0         20.0 26.0 22.0 1.00 H370FM-1820-22
          10.0  +0.071  12.0 18.0  7.0 1.00 H370FM-1012-07    20.0         23.0 30.0 11.5 1.50 H370FM-2023-11
          10.0         12.0 18.0   9.0 1.00 H370FM-1012-09    20.0         23.0 30.0 16.5 1.50 H370FM-2023-16
          10.0         12.0 18.0 10.0 1.00 H370FM-1012-10     20.0         23.0 30.0 21.5 1.50 H370FM-2023-21
          10.0         12.0 18.0 12.0 1.00 H370FM-1012-12     20.0         23.0 30.0 30.0 1.50 H370FM-2023-30
          10.0         12.0 18.0 14.5 1.00 H370FM-1012-145    22.0         25.0 32.0 21.5 1.50 H370FM-222532-215
          10.0          12.0 18.0 17.0 1.00 H370FM-1012-17    25.0  +0.020  28.0 35.0 11.5 1.50 H370FM-2528-11
          10.0          12.0 18.0 20.0 1.00 H370FM-1012-20    25.0  +0.104 28.0 35.0 16.5 1.50 H370FM-2528-16
          12.0          14.0 20.0  7.0 1.00 H370FM-1214-07    25.0         28.0 35.0 21.5 1.50 H370FM-2528-21                            Available from stock                               Ordering note
          12.0          14.0 20.0  9.0 1.00 H370FM-1214-09    25.0         28.0 35.0 30.0 1.50 H370FM-2528-30                            Detailed information about delivery time online.   Our prices are scaled according to order
          12.0          14.0 20.0 12.0 1.00 H370FM-1214-12    30.0         34.0 42.0 16.0 2.00 H370FM-3034-16                            www.igus-asean.com/24                              quantities, current prices can be found online.
          12.0  +0.016  14.0 20.0 15.0 1.00 H370FM-1214-15    30.0         34.0 42.0 26.0 2.00 H370FM-3034-26                            Order online
          12.0  +0.086 14.0 20.0 17.0 1.00 H370FM-1214-17     30.0         34.0 42.0 40.0 2.00 H370FM-3034-40                            including delivery times, prices, online tools      Discount scaling
          12.0          14.0 20.0 20.0 1.00 H370FM-1214-20    35.0  +0.025   39.0 47.0 16.0 2.00 H370FM-3539-16                          www.igus-asean.com/H370                             1-9           50-99         500-999
          14.0          16.0 22.0 12.0 1.00 H370FM-1416-12    35.0  +0.125  39.0 47.0 26.0 2.00 H370FM-3539-26                                                                               10-24         100-199       1,000-2,499
          14.0         16.0 22.0 17.0 1.00 H370FM-1416-17     40.0         44.0 52.0 30.0 2.00 H370FM-4044-30                                                                                25-49         200-499       2,500-4,999
          3)  After press-fit. Testing methods, page 61                                                                                                                                     No minimum order value.
                                                                                                                 ASEAN 09/2023   ASEAN 09/2023                                              Free shipping within Germany for orders
                                                                                                                                                                                            No low-quantity surcharges.

                                                                                                                                                                                            above €150.
