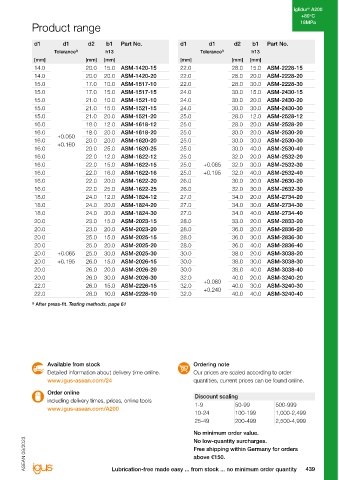

Page 441 - IGUS Bearing

iglidur A200 iglidur A200
®
®
+80°C +80°C
18MPa 18MPa
Bearing technology | Plain bearings | iglidur A200 Product range
®
Sleeve bearings (form S) d1 d1 d2 b1 Part No. d1 d1 d2 b1 Part No.

Tolerance 3) h13 Tolerance 3) h13
f1 30°
[mm] [mm] [mm] [mm] [mm] [mm]
14.0 20.0 15.0 ASM-1420-15 22.0 28.0 15.0 ASM-2228-15
14.0 20.0 20.0 ASM-1420-20 22.0 28.0 20.0 ASM-2228-20
d1 0.5 d2 15.0 17.0 10.0 ASM-1517-10 22.0 28.0 30.0 ASM-2228-30
15.0 17.0 15.0 ASM-1517-15 24.0 30.0 15.0 ASM-2430-15
30°
b1 15.0 21.0 10.0 ASM-1521-10 24.0 30.0 20.0 ASM-2430-20
15.0 21.0 15.0 ASM-1521-15 24.0 30.0 30.0 ASM-2430-30
15.0 21.0 20.0 ASM-1521-20 25.0 28.0 12.0 ASM-2528-12
16.0 18.0 12.0 ASM-1618-12 25.0 28.0 20.0 ASM-2528-20
2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1 16.0 +0.050 18.0 20.0 ASM-1618-20 25.0 30.0 20.0 ASM-2530-20
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 2795 and special 16.0 +0.160 20.0 20.0 ASM-1620-20 25.0 30.0 30.0 ASM-2530-30
f1 [mm] 0.3 0.5 0.8 1.2 dimensions 16.0 20.0 25.0 ASM-1620-25 25.0 30.0 40.0 ASM-2530-40
16.0 22.0 12.0 ASM-1622-12 25.0 32.0 20.0 ASM-2532-20
Order example: ASM-0103-02 – no minimum order quantity. 16.0 22.0 15.0 ASM-1622-15 25.0 +0.065 32.0 30.0 ASM-2532-30
A200 iglidur material S Cylindrical M Metric 01 Inner Ø d1 03 Outer Ø d2 02 Total length b1 16.0 22.0 16.0 ASM-1622-16 25.0 +0.195 32.0 40.0 ASM-2532-40
®
16.0 22.0 20.0 ASM-1622-20 26.0 30.0 20.0 ASM-2630-20
16.0 22.0 25.0 ASM-1622-25 26.0 32.0 30.0 ASM-2632-30
d1 d1 d2 b1 Part No. d1 d1 d2 b1 Part No. 18.0 24.0 12.0 ASM-1824-12 27.0 34.0 20.0 ASM-2734-20
Tolerance 3) h13 Tolerance 3) h13 18.0 24.0 20.0 ASM-1824-20 27.0 34.0 30.0 ASM-2734-30
[mm] [mm] [mm] [mm] [mm] [mm] 18.0 24.0 30.0 ASM-1824-30 27.0 34.0 40.0 ASM-2734-40
1.0 3.0 2.0 ASM-0103-02 8.0 10.0 10.0 ASM-0810-10 20.0 23.0 15.0 ASM-2023-15 28.0 33.0 20.0 ASM-2833-20
1.5 4.0 2.0 ASM-0104-02 8.0 11.0 8.0 ASM-0811-08 20.0 23.0 20.0 ASM-2023-20 28.0 36.0 20.0 ASM-2836-20
2.0 5.0 2.0 ASM-0205-02 8.0 11.0 12.0 ASM-0811-12 20.0 25.0 15.0 ASM-2025-15 28.0 36.0 30.0 ASM-2836-30
2.0 +0.020 5.0 3.0 ASM-0205-03 8.0 12.0 6.0 ASM-0812-06 20.0 25.0 20.0 ASM-2025-20 28.0 36.0 40.0 ASM-2836-40
2.5 +0.080 6.0 3.0 ASM-0206-03 8.0 12.0 8.0 ASM-0812-08 20.0 +0.065 25.0 30.0 ASM-2025-30 30.0 38.0 20.0 ASM-3038-20
3.0 5.0 3.0 ASM-0305-03 8.0 12.0 10.0 ASM-0812-10 20.0 +0.195 26.0 15.0 ASM-2026-15 30.0 38.0 30.0 ASM-3038-30
3.0 5.0 4.0 ASM-0305-04 8.0 12.0 12.0 ASM-0812-12 20.0 26.0 20.0 ASM-2026-20 30.0 38.0 40.0 ASM-3038-40
3.0 6.0 3.0 ASM-0306-03 8.0 14.0 6.0 ASM-0814-06 20.0 26.0 30.0 ASM-2026-30 32.0 +0.080 40.0 20.0 ASM-3240-20
3.0 6.0 4.0 ASM-0306-04 8.0 +0.040 14.0 10.0 ASM-0814-10 22.0 26.0 15.0 ASM-2226-15 32.0 +0.240 40.0 30.0 ASM-3240-30
4.0 7.0 3.0 ASM-0407-03 9.0 +0.130 12.0 14.0 ASM-0912-14 22.0 28.0 10.0 ASM-2228-10 32.0 40.0 40.0 ASM-3240-40
4.0 7.0 4.0 ASM-0407-04 10.0 12.0 10.0 ASM-1012-10 3) After press-fit. Testing methods, page 61
4.0 7.0 6.0 ASM-0407-06 10.0 14.0 6.0 ASM-1014-06
4.0 8.0 6.0 ASM-0408-06 10.0 14.0 8.0 ASM-1014-08
5.0 8.0 4.0 ASM-0508-04 10.0 14.0 10.0 ASM-1014-10
5.0 8.0 5.0 ASM-0508-05 10.0 14.0 16.0 ASM-1014-16
5.0 8.0 8.0 ASM-0508-08 10.0 16.0 6.0 ASM-1016-06
5.0 +0.030 9.0 5.0 ASM-0509-05 10.0 16.0 10.0 ASM-1016-10
5.0 +0.105 9.0 8.0 ASM-0509-08 10.0 16.0 16.0 ASM-1016-16
6.0 8.0 10.0 ASM-0608-10 12.0 14.0 20.0 ASM-1214-20 Available from stock Ordering note
6.0 9.0 6.0 ASM-0609-06 12.0 16.0 15.0 ASM-1216-15 Detailed information about delivery time online. Our prices are scaled according to order
6.0 10.0 4.0 ASM-0610-04 12.0 16.0 20.0 ASM-1216-20 www.igus-asean.com/24 quantities, current prices can be found online.
6.0 10.0 6.0 ASM-0610-06 12.0 18.0 8.0 ASM-1218-08 Order online
6.0 10.0 10.0 ASM-0610-10 12.0 +0.050 18.0 10.0 ASM-1218-10 including delivery times, prices, online tools Discount scaling
6.0 12.0 6.0 ASM-0612-06 12.0 +0.160 18.0 15.0 ASM-1218-15 www.igus-asean.com/A200 1-9 50-99 500-999
6.0 12.0 10.0 ASM-0612-10 12.0 18.0 20.0 ASM-1218-20 10-24 100-199 1,000-2,499
7.0 10.0 5.0 ASM-0710-05 14.0 16.0 10.0 ASM-1416-10 25-49 200-499 2,500-4,999
7.0 +0.040 10.0 8.0 ASM-0710-08 14.0 16.0 15.0 ASM-1416-15 No minimum order value.
8.0 +0.130 10.0 6.0 ASM-0810-06 14.0 16.0 20.0 ASM-1416-20 No low-quantity surcharges.
8.0 10.0 8.0 ASM-0810-08 14.0 20.0 10.0 ASM-1420-10 Free shipping within Germany for orders

3) After press-fit. Testing methods, page 61 ASEAN 09/2023 ASEAN 09/2023 above €150.
