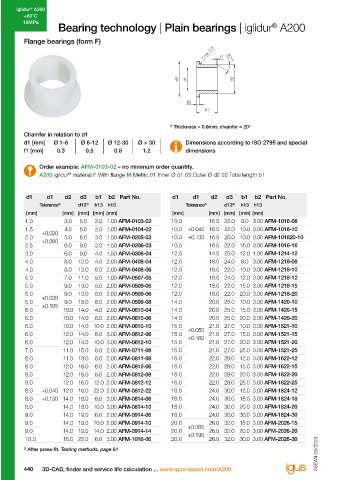

Page 442 - IGUS Bearing

iglidur A200 iglidur A200
®
®
+80°C +80°C
18MPa 18MPa
Bearing technology | Plain bearings | iglidur A200 Product range
®
Flange bearings (form F) d1 d1 d2 d3 b1 b2 Part No. d1 d1 d2 d3 b1 b2 Part No.
r max. 0.5 Tolerance 3) d13 3) h13 h13 Tolerance 3) d13 3) h13 h13
f1
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
30°
22.0 28.0 34.0 15.0 3.00 AFM-2228-15 27.0 34.0 40.0 40.0 4.00 AFM-2734-40
22.0 28.0 34.0 20.0 3.00 AFM-2228-20 28.0 36.0 42.0 20.0 4.00 AFM-2836-20
d3 d1 d2
22.0 28.0 34.0 30.0 3.00 AFM-2228-30 28.0 +0.065 36.0 42.0 30.0 4.00 AFM-2836-30
24.0 30.0 36.0 15.0 3.00 AFM-2430-15 28.0 +0.195 36.0 42.0 40.0 4.00 AFM-2836-40
24.0 30.0 36.0 20.0 3.00 AFM-2430-20 30.0 38.0 44.0 20.0 4.00 AFM-3038-20
b2 +0.065
b1 24.0 +0.195 30.0 36.0 30.0 3.00 AFM-2430-30 30.0 38.0 44.0 30.0 4.00 AFM-3038-30
25.0 32.0 38.0 20.0 4.00 AFM-2532-20 30.0 38.0 44.0 40.0 4.00 AFM-3038-40
25.0 32.0 38.0 30.0 4.00 AFM-2532-30 32.0 40.0 46.0 20.0 4.00 AFM-3240-20
2) Thickness < 0.6mm: chamfer = 20° +0.080
Chamfer in relation to d1 25.0 32.0 38.0 40.0 4.00 AFM-2532-40 32.0 +0.240 40.0 46.0 30.0 4.00 AFM-3240-30
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 2795 and special 27.0 34.0 40.0 20.0 4.00 AFM-2734-20 32.0 40.0 46.0 40.0 4.00 AFM-3240-40
f1 [mm] 0.3 0.5 0.8 1.2 dimensions 27.0 34.0 40.0 30.0 4.00 AFM-2734-30
3) After press-fit. Testing methods, page 61
Order example: AFM-0103-02 – no minimum order quantity.
A200 iglidur material F With flange M Metric 01 Inner Ø d1 03 Outer Ø d2 02 Total length b1
®

d1 d1 d2 d3 b1 b2 Part No. d1 d1 d2 d3 b1 b2 Part No.
Tolerance 3) d13 3) h13 h13 Tolerance 3) d13 3) h13 h13
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
1.0 3.0 5.0 2.0 1.00 AFM-0103-02 10.0 16.0 22.0 8.0 3.00 AFM-1016-08
1.5 +0.020 4.0 6.0 2.0 1.00 AFM-0104-02 10.0 +0.040 16.0 22.0 10.0 3.00 AFM-1016-10
2.0 +0.080 5.0 8.0 3.0 1.50 AFM-0205-03 10.0 +0.130 16.0 20.0 10.0 3.00 AFM-101620-10
2.5 6.0 9.0 3.0 1.50 AFM-0206-03 10.0 16.0 22.0 16.0 3.00 AFM-1016-16
3.0 6.0 9.0 4.0 1.50 AFM-0306-04 12.0 14.0 20.0 12.0 1.00 AFM-1214-12
4.0 8.0 12.0 4.0 2.00 AFM-0408-04 12.0 18.0 24.0 8.0 3.00 AFM-1218-08
4.0 8.0 12.0 6.0 2.00 AFM-0408-06 12.0 18.0 22.0 10.0 3.00 AFM-1218-10
5.0 7.0 11.0 5.0 1.00 AFM-0507-05 12.0 18.0 24.0 12.0 3.00 AFM-1218-12
5.0 9.0 13.0 5.0 2.00 AFM-0509-05 12.0 18.0 22.0 15.0 3.00 AFM-1218-15
5.0 +0.030 9.0 13.0 6.0 2.00 AFM-0509-06 12.0 18.0 22.0 20.0 3.00 AFM-1218-20
5.0 +0.105 9.0 13.0 8.0 2.00 AFM-0509-08 14.0 20.0 25.0 10.0 3.00 AFM-1420-10
6.0 10.0 14.0 4.0 2.00 AFM-0610-04 14.0 20.0 25.0 15.0 3.00 AFM-1420-15
6.0 10.0 14.0 6.0 2.00 AFM-0610-06 14.0 20.0 25.0 20.0 3.00 AFM-1420-20
6.0 10.0 14.0 10.0 2.00 AFM-0610-10 15.0 +0.050 21.0 27.0 10.0 3.00 AFM-1521-10
6.0 12.0 14.0 6.0 3.00 AFM-0612-06 15.0 +0.160 21.0 27.0 15.0 3.00 AFM-1521-15
6.0 12.0 14.0 10.0 3.00 AFM-0612-10 15.0 21.0 27.0 20.0 3.00 AFM-1521-20
7.0 11.0 15.0 8.0 2.00 AFM-0711-08 15.0 21.0 27.0 25.0 3.00 AFM-1521-25
8.0 11.0 13.0 8.0 2.00 AFM-0811-08 16.0 22.0 28.0 12.0 3.00 AFM-1622-12
8.0 12.0 16.0 6.0 2.00 AFM-0812-06 16.0 22.0 28.0 15.0 3.00 AFM-1622-15 Available from stock Ordering note
8.0 12.0 16.0 8.0 2.00 AFM-0812-08 16.0 22.0 28.0 20.0 3.00 AFM-1622-20 Detailed information about delivery time online. Our prices are scaled according to order
8.0 12.0 16.0 12.0 2.00 AFM-0812-12 16.0 22.0 28.0 25.0 3.00 AFM-1622-25 www.igus-asean.com/24 quantities, current prices can be found online.
8.0 +0.040 12.0 16.0 22.0 2.00 AFM-0812-22 18.0 24.0 30.0 12.0 3.00 AFM-1824-12 Order online
8.0 +0.130 14.0 18.0 6.0 3.00 AFM-0814-06 18.0 24.0 30.0 18.0 3.00 AFM-1824-18 including delivery times, prices, online tools Discount scaling
8.0 14.0 18.0 10.0 3.00 AFM-0814-10 18.0 24.0 30.0 20.0 3.00 AFM-1824-20 www.igus-asean.com/A200 1-9 50-99 500-999
9.0 14.0 19.0 6.0 2.00 AFM-0914-06 18.0 24.0 30.0 30.0 3.00 AFM-1824-30 10-24 100-199 1,000-2,499
9.0 14.0 19.0 10.0 2.00 AFM-0914-10 20.0 +0.065 26.0 32.0 15.0 3.00 AFM-2026-15 25-49 200-499 2,500-4,999
9.0 14.0 19.0 14.0 2.00 AFM-0914-14 20.0 +0.195 26.0 32.0 20.0 3.00 AFM-2026-20 No minimum order value.
10.0 16.0 22.0 6.0 3.00 AFM-1016-06 20.0 26.0 32.0 30.0 3.00 AFM-2026-30 No low-quantity surcharges.
ASEAN 09/2023 ASEAN 09/2023 above €150.
3) After press-fit. Testing methods, page 61 Free shipping within Germany for orders

440 3D-CAD, finder and service life calculation ... www.igus-asean.com/A200 Lubrication-free made easy ... from stock ... no minimum order quantity 441
