iglidur  Q2                                                                                                                                                                                                              iglidur  Q2
                                                                                                                                                                                                                                     ®
             ®
         +130°C                                                                                                                                                                                                                   +130°C
         120MPa                                                                                                                                                                                                                   120MPa

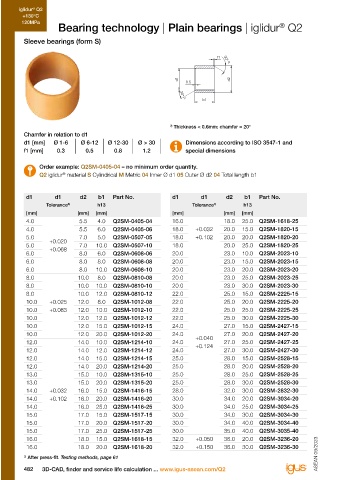

                      Bearing technology | Plain bearings | iglidur  Q2                                                             Product range
                                                                                                    ®
          Sleeve bearings (form S)                                                                                                  d1         d1      d2     b1   Part No.             d1        d1       d2    b1   Part No.

                                                                                                                                            Tolerance 3)      h13                              Tolerance 3)      h13
                                                                              f1  30°
                                                                                                                                    [mm]               [mm]  [mm]                       [mm]              [mm]  [mm]
                                                                                                                                    32.0               36.0  40.0  Q2SM-3236-40         45.0              50.0  40.0  Q2SM-4550-40
                                                                                                                                    32.0               40.0  40.0  Q2SM-3240-40         45.0              50.0  50.0  Q2SM-4550-50
                                                                d1  0.5           d2                                                35.0               39.0  20.0  Q2SM-3539-20         50.0              55.0  20.0  Q2SM-5055-20
                                                                                                                                    35.0               39.0  30.0  Q2SM-3539-30         50.0    +0.050    55.0  30.0  Q2SM-5055-30
                                                                 30°
                                                                         b1                                                         35.0               39.0  40.0  Q2SM-3539-40         50.0    +0.150    55.0  40.0  Q2SM-5055-40
                                                                                                                                    35.0     +0.050    39.0  50.0  Q2SM-3539-50         50.0              55.0  50.0  Q2SM-5055-50
                                                                                                                                    40.0     +0.150    44.0  20.0  Q2SM-4044-20         50.0              55.0  60.0  Q2SM-5055-60
                                                                                                                                    40.0               44.0  30.0  Q2SM-4044-30         60.0              65.0  60.0  Q2SM-6065-60
                                                             2)  Thickness < 0.6mm: chamfer = 20°
          Chamfer in relation to d1                                                                                                 40.0               44.0  40.0  Q2SM-4044-40         65.0    +0.060    70.0  60.0  Q2SM-6570-60
          d1 [mm]   Ø 1-6     Ø 6-12   Ø 12-30    Ø > 30           Dimensions according to ISO 3547-1 and                            40.0              44.0  50.0  Q2SM-4044-50         70.0    +0.180    75.0  60.0  Q2SM-7075-60
          f1 [mm]    0.3       0.5        0.8       1.2            special dimensions                                                45.0              50.0  20.0  Q2SM-4550-20         75.0              80.0  40.0  Q2SM-7580-40
                                                                                                                                     45.0              50.0  30.0  Q2SM-4550-30
               Order example: Q2SM-0405-04 – no minimum order quantity.                                                             3)  After press-fit. Testing methods, page 61
               Q2 iglidur  material S Cylindrical M Metric 04 Inner Ø d1 05 Outer Ø d2 04 Total length b1
                       ®

           d1        d1       d2    b1   Part No.             d1        d1       d2    b1   Part No.
                  Tolerance 3)      h13                              Tolerance 3)      h13
           [mm]              [mm]  [mm]                       [mm]              [mm]  [mm]
           4.0               5.5    4.0  Q2SM-0405-04         16.0              18.0  25.0  Q2SM-1618-25
           4.0               5.5    6.0  Q2SM-0405-06         18.0    +0.032    20.0  15.0  Q2SM-1820-15
           5.0     +0.020    7.0    5.0  Q2SM-0507-05         18.0    +0.102    20.0  20.0  Q2SM-1820-20
           5.0     +0.068    7.0   10.0  Q2SM-0507-10         18.0              20.0  25.0  Q2SM-1820-25
           6.0               8.0    6.0  Q2SM-0608-06         20.0              23.0  10.0  Q2SM-2023-10
           6.0               8.0    8.0  Q2SM-0608-08         20.0              23.0  15.0  Q2SM-2023-15
           6.0               8.0   10.0  Q2SM-0608-10         20.0              23.0  20.0  Q2SM-2023-20
           8.0               10.0   8.0  Q2SM-0810-08         20.0              23.0  25.0  Q2SM-2023-25
           8.0               10.0  10.0  Q2SM-0810-10         20.0              23.0  30.0  Q2SM-2023-30
           8.0               10.0  12.0  Q2SM-0810-12         22.0              25.0  15.0  Q2SM-2225-15
           10.0    +0.025    12.0   8.0  Q2SM-1012-08         22.0              25.0  20.0  Q2SM-2225-20
           10.0    +0.083    12.0  10.0  Q2SM-1012-10         22.0              25.0  25.0  Q2SM-2225-25
           10.0              12.0  12.0  Q2SM-1012-12         22.0              25.0  30.0  Q2SM-2225-30
           10.0              12.0  15.0  Q2SM-1012-15         24.0              27.0  15.0  Q2SM-2427-15
           10.0              12.0  20.0  Q2SM-1012-20         24.0    +0.040    27.0  20.0  Q2SM-2427-20
           12.0              14.0  10.0  Q2SM-1214-10         24.0    +0.124    27.0  25.0  Q2SM-2427-25
           12.0              14.0  12.0  Q2SM-1214-12         24.0              27.0  30.0  Q2SM-2427-30
           12.0              14.0  15.0  Q2SM-1214-15         25.0              28.0  15.0  Q2SM-2528-15
           12.0              14.0  20.0  Q2SM-1214-20         25.0              28.0  20.0  Q2SM-2528-20                                 Available from stock                               Ordering note
           13.0              15.0  10.0  Q2SM-1315-10         25.0              28.0  25.0  Q2SM-2528-25                                 Detailed information about delivery time online.   Our prices are scaled according to order
           13.0              15.0  20.0  Q2SM-1315-20         25.0              28.0  30.0  Q2SM-2528-30                                 www.igus-asean.com/24                              quantities, current prices can be found online.
           14.0    +0.032    16.0  15.0  Q2SM-1416-15         28.0              32.0  30.0  Q2SM-2832-30                                 Order online
           14.0    +0.102    16.0  20.0  Q2SM-1416-20         30.0              34.0   20.0  Q2SM-3034-20                                including delivery times, prices, online tools      Discount scaling
           14.0              16.0  25.0  Q2SM-1416-25         30.0              34.0   25.0  Q2SM-3034-25                                www.igus-asean.com/Q2                               1-9           50-99         500-999
           15.0              17.0  15.0  Q2SM-1517-15         30.0              34.0   30.0  Q2SM-3034-30                                                                                    10-24         100-199       1,000-2,499
           15.0              17.0  20.0  Q2SM-1517-20         30.0              34.0   40.0  Q2SM-3034-40                                                                                    25-49         200-499       2,500-4,999
           15.0              17.0  25.0  Q2SM-1517-25         30.0              35.0   40.0  Q2SM-3035-40                                                                                   No minimum order value.
           16.0              18.0  15.0  Q2SM-1618-15         32.0    +0.050    36.0   20.0  Q2SM-3236-20                                                                                   No low-quantity surcharges.
           16.0              18.0  20.0  Q2SM-1618-20         32.0    +0.150    36.0   30.0  Q2SM-3236-30                                                                                   Free shipping within Germany for orders

          3)  After press-fit. Testing methods, page 61                                                          ASEAN 09/2023   ASEAN 09/2023                                              above €150.
