iglidur Q2 iglidur Q2
®
®
+130°C +130°C
120MPa 120MPa

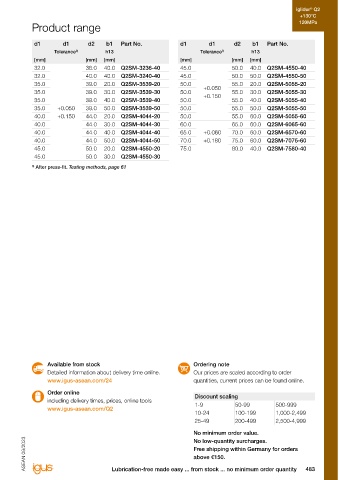

Bearing technology | Plain bearings | iglidur Q2 Product range
®
Sleeve bearings (form S) d1 d1 d2 b1 Part No. d1 d1 d2 b1 Part No.

Tolerance 3) h13 Tolerance 3) h13
f1 30°
[mm] [mm] [mm] [mm] [mm] [mm]
32.0 36.0 40.0 Q2SM-3236-40 45.0 50.0 40.0 Q2SM-4550-40
32.0 40.0 40.0 Q2SM-3240-40 45.0 50.0 50.0 Q2SM-4550-50
d1 0.5 d2 35.0 39.0 20.0 Q2SM-3539-20 50.0 55.0 20.0 Q2SM-5055-20
35.0 39.0 30.0 Q2SM-3539-30 50.0 +0.050 55.0 30.0 Q2SM-5055-30
30°
b1 35.0 39.0 40.0 Q2SM-3539-40 50.0 +0.150 55.0 40.0 Q2SM-5055-40
35.0 +0.050 39.0 50.0 Q2SM-3539-50 50.0 55.0 50.0 Q2SM-5055-50
40.0 +0.150 44.0 20.0 Q2SM-4044-20 50.0 55.0 60.0 Q2SM-5055-60
40.0 44.0 30.0 Q2SM-4044-30 60.0 65.0 60.0 Q2SM-6065-60
2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1 40.0 44.0 40.0 Q2SM-4044-40 65.0 +0.060 70.0 60.0 Q2SM-6570-60
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and 40.0 44.0 50.0 Q2SM-4044-50 70.0 +0.180 75.0 60.0 Q2SM-7075-60
f1 [mm] 0.3 0.5 0.8 1.2 special dimensions 45.0 50.0 20.0 Q2SM-4550-20 75.0 80.0 40.0 Q2SM-7580-40
45.0 50.0 30.0 Q2SM-4550-30
Order example: Q2SM-0405-04 – no minimum order quantity. 3) After press-fit. Testing methods, page 61
Q2 iglidur material S Cylindrical M Metric 04 Inner Ø d1 05 Outer Ø d2 04 Total length b1
®

d1 d1 d2 b1 Part No. d1 d1 d2 b1 Part No.
Tolerance 3) h13 Tolerance 3) h13
[mm] [mm] [mm] [mm] [mm] [mm]
4.0 5.5 4.0 Q2SM-0405-04 16.0 18.0 25.0 Q2SM-1618-25
4.0 5.5 6.0 Q2SM-0405-06 18.0 +0.032 20.0 15.0 Q2SM-1820-15
5.0 +0.020 7.0 5.0 Q2SM-0507-05 18.0 +0.102 20.0 20.0 Q2SM-1820-20
5.0 +0.068 7.0 10.0 Q2SM-0507-10 18.0 20.0 25.0 Q2SM-1820-25
6.0 8.0 6.0 Q2SM-0608-06 20.0 23.0 10.0 Q2SM-2023-10
6.0 8.0 8.0 Q2SM-0608-08 20.0 23.0 15.0 Q2SM-2023-15
6.0 8.0 10.0 Q2SM-0608-10 20.0 23.0 20.0 Q2SM-2023-20
8.0 10.0 8.0 Q2SM-0810-08 20.0 23.0 25.0 Q2SM-2023-25
8.0 10.0 10.0 Q2SM-0810-10 20.0 23.0 30.0 Q2SM-2023-30
8.0 10.0 12.0 Q2SM-0810-12 22.0 25.0 15.0 Q2SM-2225-15
10.0 +0.025 12.0 8.0 Q2SM-1012-08 22.0 25.0 20.0 Q2SM-2225-20
10.0 +0.083 12.0 10.0 Q2SM-1012-10 22.0 25.0 25.0 Q2SM-2225-25
10.0 12.0 12.0 Q2SM-1012-12 22.0 25.0 30.0 Q2SM-2225-30
10.0 12.0 15.0 Q2SM-1012-15 24.0 27.0 15.0 Q2SM-2427-15
10.0 12.0 20.0 Q2SM-1012-20 24.0 +0.040 27.0 20.0 Q2SM-2427-20
12.0 14.0 10.0 Q2SM-1214-10 24.0 +0.124 27.0 25.0 Q2SM-2427-25
12.0 14.0 12.0 Q2SM-1214-12 24.0 27.0 30.0 Q2SM-2427-30
12.0 14.0 15.0 Q2SM-1214-15 25.0 28.0 15.0 Q2SM-2528-15
12.0 14.0 20.0 Q2SM-1214-20 25.0 28.0 20.0 Q2SM-2528-20 Available from stock Ordering note
13.0 15.0 10.0 Q2SM-1315-10 25.0 28.0 25.0 Q2SM-2528-25 Detailed information about delivery time online. Our prices are scaled according to order
13.0 15.0 20.0 Q2SM-1315-20 25.0 28.0 30.0 Q2SM-2528-30 www.igus-asean.com/24 quantities, current prices can be found online.
14.0 +0.032 16.0 15.0 Q2SM-1416-15 28.0 32.0 30.0 Q2SM-2832-30 Order online
14.0 +0.102 16.0 20.0 Q2SM-1416-20 30.0 34.0 20.0 Q2SM-3034-20 including delivery times, prices, online tools Discount scaling
14.0 16.0 25.0 Q2SM-1416-25 30.0 34.0 25.0 Q2SM-3034-25 www.igus-asean.com/Q2 1-9 50-99 500-999
15.0 17.0 15.0 Q2SM-1517-15 30.0 34.0 30.0 Q2SM-3034-30 10-24 100-199 1,000-2,499
15.0 17.0 20.0 Q2SM-1517-20 30.0 34.0 40.0 Q2SM-3034-40 25-49 200-499 2,500-4,999
15.0 17.0 25.0 Q2SM-1517-25 30.0 35.0 40.0 Q2SM-3035-40 No minimum order value.
16.0 18.0 15.0 Q2SM-1618-15 32.0 +0.050 36.0 20.0 Q2SM-3236-20 No low-quantity surcharges.
16.0 18.0 20.0 Q2SM-1618-20 32.0 +0.150 36.0 30.0 Q2SM-3236-30 Free shipping within Germany for orders

3) After press-fit. Testing methods, page 61 ASEAN 09/2023 ASEAN 09/2023 above €150.
