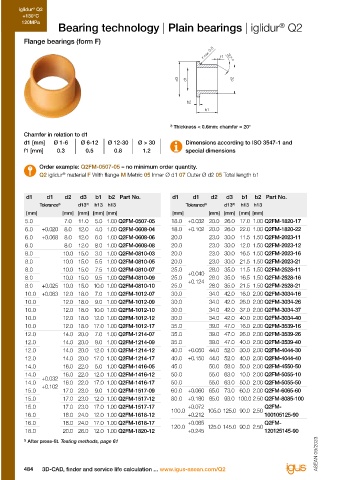

Page 486 - IGUS Bearing

iglidur Q2
®
+130°C
120MPa
Bearing technology | Plain bearings | iglidur Q2
®
Flange bearings (form F)
r max. 0.5 f1 30°

d3 d1 d2

b2
b1

2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and
f1 [mm] 0.3 0.5 0.8 1.2 special dimensions

Order example: Q2FM-0507-05 – no minimum order quantity.
Q2 iglidur material F With flange M Metric 05 Inner Ø d1 07 Outer Ø d2 05 Total length b1 Cost-effective heavy-duty bearing
®
Robust and dimensionally stable
d1 d1 d2 d3 b1 b2 Part No. d1 d1 d2 d3 b1 b2 Part No.
Tolerance 3) d13 3) h13 h13 Tolerance 3) d13 3) h13 h13
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] iglidur Q3E
®
5.0 7.0 11.0 5.0 1.00 Q2FM-0507-05 18.0 +0.032 20.0 26.0 17.0 1.00 Q2FM-1820-17
6.0 +0.020 8.0 12.0 4.0 1.00 Q2FM-0608-04 18.0 +0.102 20.0 26.0 22.0 1.00 Q2FM-1820-22
6.0 +0.068 8.0 12.0 6.0 1.00 Q2FM-0608-06 20.0 23.0 30.0 11.5 1.50 Q2FM-2023-11
6.0 8.0 12.0 8.0 1.00 Q2FM-0608-08 20.0 23.0 30.0 12.0 1.50 Q2FM-2023-12
8.0 10.0 15.0 3.0 1.00 Q2FM-0810-03 20.0 23.0 30.0 16.5 1.50 Q2FM-2023-16 When to use it?
8.0 10.0 15.0 5.5 1.00 Q2FM-0810-05 20.0 23.0 30.0 21.5 1.50 Q2FM-2023-21 ● When a wear-resistant plain bearing at loads up to 130MPa is required
8.0 10.0 15.0 7.5 1.00 Q2FM-0810-07 25.0 +0.040 28.0 35.0 11.5 1.50 Q2FM-2528-11 ● When a robust and dirt-resistant plain bearing is required
8.0 10.0 15.0 9.5 1.00 Q2FM-0810-09 25.0 +0.124 28.0 35.0 16.5 1.50 Q2FM-2528-16 ● When a plain bearing with dimensional stability is required
8.0 +0.025 10.0 15.0 10.0 1.00 Q2FM-0810-10 25.0 28.0 35.0 21.5 1.50 Q2FM-2528-21
10.0 +0.083 12.0 18.0 7.0 1.00 Q2FM-1012-07 30.0 34.0 42.0 16.0 2.00 Q2FM-3034-16
10.0 12.0 18.0 9.0 1.00 Q2FM-1012-09 30.0 34.0 42.0 26.0 2.00 Q2FM-3034-26
10.0 12.0 18.0 10.0 1.00 Q2FM-1012-10 30.0 34.0 42.0 37.0 2.00 Q2FM-3034-37 When not to use it?
10.0 12.0 18.0 12.0 1.00 Q2FM-1012-12 30.0 34.0 42.0 40.0 2.00 Q2FM-3034-40 ● When a plain bearing with the highest possible media resistance is required
®
10.0 12.0 18.0 17.0 1.00 Q2FM-1012-17 35.0 39.0 47.0 16.0 2.00 Q2FM-3539-16 iglidur X
12.0 14.0 20.0 7.0 1.00 Q2FM-1214-07 35.0 39.0 47.0 26.0 2.00 Q2FM-3539-26 ● With high rotational speeds
®
®
12.0 14.0 20.0 9.0 1.00 Q2FM-1214-09 35.0 39.0 47.0 40.0 2.00 Q2FM-3539-40 iglidur J, iglidur L250
12.0 14.0 20.0 12.0 1.00 Q2FM-1214-12 40.0 +0.050 44.0 52.0 30.0 2.00 Q2FM-4044-30 ● When a universal standard plain bearing for occasional movements is required
®
12.0 14.0 20.0 17.0 1.00 Q2FM-1214-17 40.0 +0.150 44.0 52.0 40.0 2.00 Q2FM-4044-40 iglidur G
14.0 16.0 22.0 5.0 1.00 Q2FM-1416-05 45.0 50.0 58.0 50.0 2.00 Q2FM-4550-50
14.0 +0.032 16.0 22.0 12.0 1.00 Q2FM-1416-12 50.0 55.0 63.0 10.0 2.00 Q2FM-5055-10
14.0 +0.102 16.0 22.0 17.0 1.00 Q2FM-1416-17 50.0 55.0 63.0 50.0 2.00 Q2FM-5055-50
15.0 17.0 23.0 9.0 1.00 Q2FM-1517-09 60.0 +0.060 65.0 73.0 60.0 2.00 Q2FM-6065-60
15.0 17.0 23.0 12.0 1.00 Q2FM-1517-12 80.0 +0.180 85.0 93.0 100.0 2.50 Q2FM-8085-100
15.0 17.0 23.0 17.0 1.00 Q2FM-1517-17 100.0 +0.072 105.0 125.0 90.0 2.50 Q2FM-
16.0 18.0 24.0 12.0 1.00 Q2FM-1618-12 +0.212 100105125-90
16.0 18.0 24.0 17.0 1.00 Q2FM-1618-17 120.0 +0.085 125.0 145.0 90.0 2.50 Q2FM-
18.0 20.0 26.0 12.0 1.00 Q2FM-1820-12 +0.245 120125145-90
ASEAN 09/2023 ASEAN 09/2023
3) After press-fit. Testing methods, page 61

484 3D-CAD, finder and service life calculation ... www.igus-asean.com/Q2
