Page 508 - IGUS Bearing

iglidur M210 iglidur M210
®
®
+100°C +100°C
50MPa 50MPa

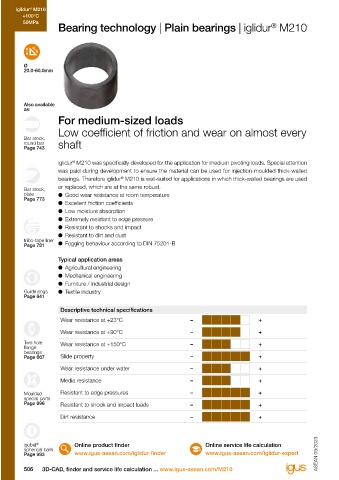

Bearing technology | Plain bearings | iglidur M210 Technical data
®
General properties Testing method

Density g/cm³ 1.40 -40°C up to
Ø Colour black +100°C
20.0-60.0mm
Max. moisture absorption at +23°C/50% r.h. % weight 0.3 DIN 53495
Max. moisture absorption % weight 0.5
Coefficient of friction, dynamic, against steel µ 0.08-0.20 50MPa
pv value, max. (dry) MPa · m/s 0.5
Also available
as: Mechanical properties
For medium-sized loads Flexural modulus MPa 2,200 DIN 53457
DIN 53452
65
MPa
Flexural strength at +20°C
Low coefficient of friction and wear on almost every Compressive strength MPa 50
Bar stock, Max. permissible surface pressure (+20°C) MPa 50
round bar shaft
Page 743 Shore D hardness 75 DIN 53505
Physical and thermal properties
iglidur M210 was specifically developed for the application for medium pivoting loads. Special attention Max. application temperature long-term °C +100
®
was paid during development to ensure the material can be used for injection-moulded thick-walled Max. application temperature short-term °C +160 FOOD
bearings. Therefore iglidur M210 is well-suited for applications in which thick-walled bearings are used Min. application temperature °C up to -40
®
or replaced, which are at the same robust.
Bar stock, Thermal conductivity W/m · K 0.25 ASTM C 177
plate ● Good wear resistance at room temperature -1 -5
Page 773 Coefficient of thermal expansion (at +23°C) K · 10 8 DIN 53752
● Excellent friction coefficients Electrical properties
● Low moisture absorption Specific transitional resistance Ωcm n.s.
● Extremely resistant to edge pressure Surface resistance Ω > 10 11 DIN 53482
● Resistant to shocks and impact Table 01: Material properties
● Resistant to dirt and dust
tribo-tape liner
Page 781 ● Fogging behaviour according to DIN 75201-B iglidur M210 plain bearings provide the user with versatile Resistance to weathering
®
all-round bearings, which have proven to have above iglidur M210 plain bearings are continuously resistant
®
Typical application areas average service life, primarily in pivoting applications at to weathering. The material properties are only slightly
● Agricultural engineering medium loads of up to 20MPa. affected. Possible discolourations are only superficial.
● Mechanical engineering
● Furniture / Industrial design Moisture absorption Mechanical properties
Guide rings ● Textile industry
®
Page 641 The humidity absorption of iglidur M210 bearings With increasing temperatures, the compressive strength of
amounts to about 0.3 % weight in standard climatic iglidur M210 plain bearings decreases. Diagram 02 shows
®
Descriptive technical specifications conditions. The saturation limit submerged in water is this inverse relationship. The maximum recommended
Wear resistance at +23°C – + 0.5% weight. This low moisture absorption is well below surface pressure is a mechanical material parameter. No
the values of iglidur G. conclusions regarding the tribological properties can be
®
Wear resistance at +90°C – +
drawn from this.
Two hole Wear resistance at +150°C – + Vacuum Diagram 03 shows the elastic deformation of iglidur M210
®
flange
bearings In vacuum, any present moisture is released as vapour. as a function of radial pressure. At the recommended
Page 667 Slide property – +
The use in vacuum is only possible to a limited extent. maximum surface pressure of 50MPa the deformation is
Wear resistance under water – + less than 3% at room temperature.
Radiation resistance Surface pressure, page 45
Media resistance – +
Plain bearings made from iglidur M210 have limited use
®
Moulded Resistant to edge pressures – + under radioactive radiation. They are resistant up to a
special parts radiation intensity of 3 - 10² Gy.
Page 696 Resistant to shock and impact loads – +

Dirt resistance – +

®
igubal Online product finder Online service life calculation
spherical balls
Page 993 www.igus-asean.com/iglidur-finder www.igus-asean.com/iglidur-expert ASEAN 09/2023 ASEAN 09/2023
506 3D-CAD, finder and service life calculation ... www.igus-asean.com/M210 Lubrication-free made easy ... from stock ... no minimum order quantity 507
