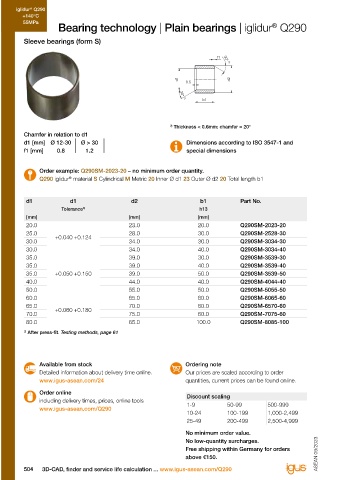

Page 506 - IGUS Bearing
P. 506

iglidur  Q290
            ®
         +140°C
          55MPa
                      Bearing technology | Plain bearings | iglidur  Q290
                                                                                                 ®
          Sleeve bearings (form S)


                                                                              f1  30°



                                                                d1  0.5           d2


                                                                 30°
                                                                         b1



                                                             2)  Thickness < 0.6mm: chamfer = 20°
          Chamfer in relation to d1
          d1 [mm]  Ø 12-30    Ø > 30                               Dimensions according to ISO 3547-1 and
          f1 [mm]    0.8       1.2                                 special dimensions



               Order example: Q290SM-2023-20 – no minimum order quantity.                                                           For medium-sized loads
               Q290 iglidur  material S Cylindrical M Metric 20 Inner Ø d1 23 Outer Ø d2 20 Total length b1
                          ®
                                                                                                                                    Low coefficient of friction and wear
           d1             d1                   d2                       b1            Part No.
                       Tolerance 3)                                    h13
           [mm]                                [mm]                    [mm]                                                         on almost every shaft
           20.0                                23.0                    20.0           Q290SM-2023-20
                                                                                                                                                    ®
           25.0      +0.040 +0.124             28.0                    30.0           Q290SM-2528-30                                iglidur  M210
           30.0                                34.0                    30.0           Q290SM-3034-30
           30.0                                34.0                    40.0           Q290SM-3034-40
           35.0                                39.0                    30.0           Q290SM-3539-30
           35.0                                39.0                    40.0           Q290SM-3539-40
           35.0      +0.050 +0.150             39.0                    50.0           Q290SM-3539-50                                When to use it?
           40.0                                44.0                    40.0           Q290SM-4044-40                                ●  When a universal plain bearing for use in a wet environment is required
           50.0                                55.0                    50.0           Q290SM-5055-50                                ●  When a wear-resistant plain bearing for pivoting applications at medium loads is required
           60.0                                65.0                    60.0           Q290SM-6065-60                                ●  When edge loads and shocks occur
                                                                                                                                                                      ®
           65.0      +0.060 +0.180             70.0                    60.0           Q290SM-6570-60                                ●  When the surface pressure of iglidur  J is insufficient
           70.0                                75.0                    60.0           Q290SM-7075-60
           80.0                                85.0                   100.0           Q290SM-8085-100
          3)  After press-fit. Testing methods, page 61
                                                                                                                                    When not to use it?
                                                                                                                                    ●  When a universal plain bearing with the largest possible range of dimensions is required
                                                                                                                                       iglidur  G
                                                                                                                                             ®
                                                                                                                                    ●  When a plain bearing for highly loaded pivoting applications is required
               Available from stock                                Ordering note                                                       iglidur  Q, iglidur  Q2
                                                                                                                                             ®
                                                                                                                                                      ®
               Detailed information about delivery time online.    Our prices are scaled according to order
               www.igus-asean.com/24                               quantities, current prices can be found online.                  ●  When temperatures are higher than +100°C
                                                                                                                                       iglidur  G, iglidur  J350
                                                                                                                                                      ®
                                                                                                                                             ®
               Order online                                        Discount scaling
               including delivery times, prices, online tools      1-9           50-99         500-999
               www.igus-asean.com/Q290
                                                                   10-24         100-199       1,000-2,499
                                                                   25-49         200-499       2,500-4,999
                                                                   No minimum order value.
                                                                   No low-quantity surcharges.
                                                                   Free shipping within Germany for orders
                                                                   above €150.                                   ASEAN 09/2023   ASEAN 09/2023
          504   3D-CAD, finder and service life calculation ... www.igus-asean.com/Q290
