iglidur Q
®
+135°C
100MPa
Bearing technology | Plain bearings | iglidur Q
®
Thrust washer (form T)
d1

s
d2

d5

d4
d6
h
Dimensions according to ISO 3547-1 and
special dimensions

Order example: QTM-2842-015 – no minimum order quantity.

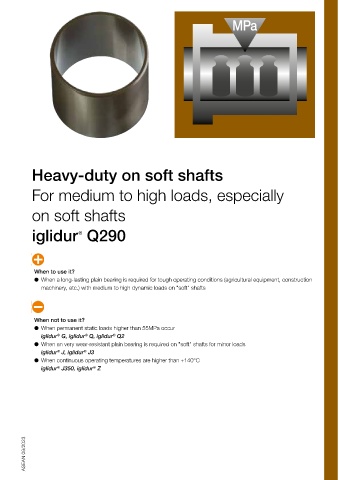

Q iglidur material T Thrust washer M Metric 28 Inner Ø d1 42 Outer Ø d2 015 Height s Heavy-duty on soft shafts
®
For medium to high loads, especially
d1 d2 d4 d5 h d6 Øs Part No.
+0.25 -0.25 -0.12 +0.375 +0.2/-0.2 +0.12 -0.05
+0.12 +0.125 on soft shafts
[mm] [mm] [mm] [mm] [mm] [mm] [mm]
28 42 35 4 1 42 1.5 QTM-2842-015 ®
32 54 4) 4 1 54 1.5 QTM-3254-015 iglidur Q290

4) Design without fixing hole

When to use it?
● When a long-lasting plain bearing is required for tough operating conditions (agricultural equipment, construction
machinery, etc.) with medium to high dynamic loads on "soft" shafts

When not to use it?
● When permanent static loads higher than 55MPa occur
iglidur G, iglidur Q, iglidur Q2
®
®
®
● When an very wear-resistant plain bearing is required on "soft" shafts for minor loads
®
®
iglidur J, iglidur J3
● When continuous operating temperatures are higher than +140°C
Available from stock Ordering note iglidur J350, iglidur Z
®
®
Detailed information about delivery time online. Our prices are scaled according to order
www.igus-asean.com/24 quantities, current prices can be found online.
Order online Discount scaling
including delivery times, prices, online tools 1-9 50-99 500-999
www.igus-asean.com/Q
10-24 100-199 1,000-2,499
25-49 200-499 2,500-4,999
No minimum order value.
No low-quantity surcharges.
Free shipping within Germany for orders
above €150. ASEAN 09/2023 ASEAN 09/2023
