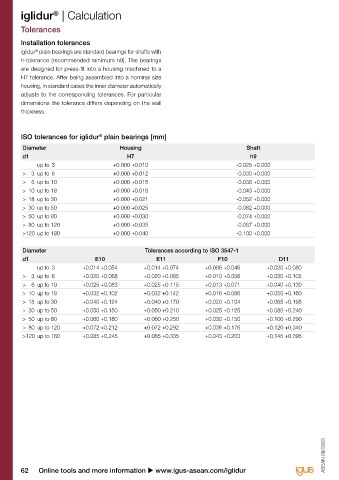

Page 64 - IGUS Bearing

iglidur | Calculation iglidur | Calculation
®
®
Tolerances Tolerances

Installation tolerances Material E10 E11 F10 D11 Material E10 E11 F10 D11
iglidur plain bearings are standard bearings for shafts with
®
h-tolerance (recommended minimum h9). The bearings iglidur G iglidur H2
®
®
are designed for press-fit into a housing machined to a iglidur G1 iglidur H3
®
®
H7 tolerance. After being assembled into a nominal size iglidur M250 iglidur H5
®
®
housing, in standard cases the inner diameter automatically iglidur P210 iglidur A181
®
®
adjusts to the corresponding tolerances. For particular iglidur P iglidur A350
®
®
dimensions the tolerance differs depending on the wall iglidur K iglidur A500
®
®
thickness. iglidur GLW iglidur A180
®
®
iglidur P230 iglidur A200
®
®
iglidur J iglidur A160
®
®
®
ISO tolerances for iglidur plain bearings [mm] iglidur W300 iglidur UW160
®
®
Diameter Housing Shaft iglidur J3 iglidur T220
®
®
d1 H7 h9 iglidur J3B iglidur AX500
®
®
up to 3 +0.000 +0.010 -0.025 +0.000 iglidur J350 iglidur Q2
®
®
> 3 up to 6 +0.000 +0.012 -0.030 +0.000 iglidur J260 iglidur Q3E
®
®
> 6 up to 10 +0.000 +0.015 -0.036 +0.000 iglidur W360 iglidur Q
®
®
> 10 up to 18 +0.000 +0.018 -0.043 +0.000 iglidur L250 iglidur Q290
®
®
> 18 up to 30 +0.000 +0.021 -0.052 +0.000 iglidur L350 iglidur M210
®
®
> 30 up to 50 +0.000 +0.025 -0.062 +0.000 iglidur L500 iglidur M260
®
®
> 50 up to 80 +0.000 +0.030 -0.074 +0.000 iglidur R igutex TX1
®
®
> 80 up to 120 +0.000 +0.035 -0.087 +0.000 iglidur D igutex TX2
®
®
> 120 up to 180 +0.000 +0.040 -0.100 +0.000 iglidur J200 igutex TX3
®
®
iglidur E7 iglidur F
®
®
Diameter Tolerances according to ISO 3547-1 iglidur E iglidur F2
®
®
d1 E10 E11 F10 D11 iglidur X iglidur H4
®
®
up to 3 +0.014 +0.054 +0.014 +0.074 +0.006 +0.046 +0.020 +0.080 iglidur Z iglidur UW
®
®
> 3 up to 6 +0.020 +0.068 +0.020 +0.095 +0.010 +0.058 +0.030 +0.105 iglidur X6 iglidur J UV
®
®
> 6 up to 10 +0.025 +0.083 +0.025 +0.115 +0.013 +0.071 +0.040 +0.130 iglidur V400 iglidur N54
®
®
> 10 up to 18 +0.032 +0.102 +0.032 +0.142 +0.016 +0.086 +0.050 +0.160 iglidur HSD350 iglidur G V0
®
®
> 18 up to 30 +0.040 +0.124 +0.040 +0.170 +0.020 +0.104 +0.065 +0.195 iglidur UW500 iglidur J2
®
®
> 30 up to 50 +0.050 +0.150 +0.050 +0.210 +0.025 +0.125 +0.080 +0.240 iglidur H1 iglidur AB
®
®
> 50 up to 80 +0.060 +0.180 +0.060 +0.250 +0.030 +0.150 +0.100 +0.290 iglidur H370 iglidur RW370
®
®
> 80 up to 120 +0.072 +0.212 +0.072 +0.292 +0.036 +0.176 +0.120 +0.340 iglidur H iglidur B
®
®
®
> 120 up to 180 +0.085 +0.245 +0.085 +0.335 +0.043 +0.203 +0.145 +0.395 iglidur C500 iglidur C
®
Table 10: Tolerances of iglidur plain bearing materials
®
