iglidur iglidur
®
®
®
®

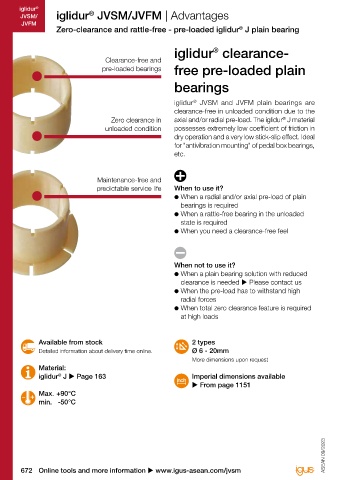

JVSM/ iglidur JVSM/JVFM | Advantages iglidur JVSM/JVFM | Product range JVSM/
JVFM JVFM
Zero-clearance and rattle-free - pre-loaded iglidur J plain bearing Pre-loaded sleeve plain bearings
®
iglidur clearance- Order key
®
Clearance-free and
pre-loaded bearings free pre-loaded plain 6× 60° 60° Type Dimensions [mm]

bearings 6× Options:

iglidur JVSM and JVFM plain bearings are Form:
®
clearance-free in unloaded condition due to the b1 b1 S: sleeve
Zero clearance in axial and/or radial pre-load. The iglidur J material F: with flange
®
unloaded condition possesses extremely low coefficient of friction in iglidur ® material pre-tensioned
dry operation and a very low stick-slip effect. Ideal d1 b3 b3 Inner Ø Outer Ø Total length
d2
for "antivibration mounting" of pedal box bearings, d1 Form Metric
etc. d2
Dimensions [mm]
d1 d1 tolerance 14) d2 b1 b3 Part No.
Maintenance-free and E10 h13
predictable service life When to use it? 6.0 +0.020 +0.068 8.0 6.0 2.0 JVSM-0608-06

● When a radial and/or axial pre-load of plain 8.0 +0.025 +0.083 10.0 8.0 2.0 JVSM-0810-08
bearings is required 10.0 +0.025 +0.083 12.0 10.0 2.0 JVSM-1012-10
● When a rattle-free bearing in the unloaded 12.0 +0.032 +0.102 14.0 12.0 2.0 JVSM-1214-12
state is required 14.0 +0.032 +0.102 16.0 14.0 2.0 JVSM-1416-14
● When you need a clearance-free feel 15.0 +0.032 +0.102 17.0 15.0 2.5 JVSM-1517-15
18.0 +0.032 +0.102 20.0 18.0 2.5 JVSM-1820-18
20.0 +0.040 +0.124 23.0 20.0 2.5 JVSM-2023-20

14) d1 measured after press-fit in housing hole. d2 H7 within the measurement plane
When not to use it?

● When a plain bearing solution with reduced Pre-loaded sleeve plain bearings with flange
clearance is needed u Please contact us
● When the pre-load has to withstand high
radial forces
● When total zero clearance feature is required d3 d1 d2
at high loads h 0

Available from stock 2 types r = max. 0.5mm b2 b3
Detailed information about delivery time online. Ø 6 - 20mm b1
More dimensions upon request Dimensions [mm]
Material: d1 d1 tolerance 14) d2 d3 b1 b2 b3 h Part No.
0
iglidur J u Page 163 Imperial dimensions available E10 h13 ±0.1
®
u From page 1151 8 +0.025 +0.083 10 15 10 1.0 2.0 0.44 JVFM-0810-10
Max. +90°C 10 +0.025 +0.083 12 18 10 1.0 2.0 0.53 JVFM-1012-10
min. -50°C 12 +0.032 +0.102 14 20 12 1.0 2.0 0.53 JVFM-1214-12

14 +0.032 +0.102 16 22 12 1.0 2.0 0.53 JVFM-1416-12
15 +0.032 +0.102 17 23 15 1.0 2.5 0.53 JVFM-1517-15
18 +0.032 +0.102 20 26 11 1.0 2.5 0.53 JVFM-1820-11
18 +0.032 +0.102 20 26 18 1.0 2.5 0.53 JVFM-1820-18
ASEAN 09/2023 ASEAN 09/2023 14) d1 measured after press-fit in housing hole. d2 H7 within the measurement plane
1.5
2.5
JVFM-2023-20
0.62
20
+0.040 +0.124
23
20
30
672 Online tools and more information u www.igus-asean.com/jvsm 3D CAD files, prices and delivery time online u www.igus-asean.com/jvsm 673
