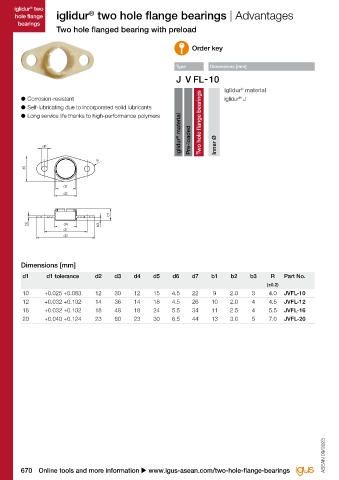

iglidur two
®
®
hole flange iglidur two hole flange bearings | Advantages
bearings
Two hole flanged bearing with preload

Order key

Type Dimensions [mm]

iglidur material
®
®
● Corrosion-resistant iglidur J
● Self-lubricating due to incorporated solid lubricants
● Long service life thanks to high-performance polymers Two hole flange bearings
iglidur ® material

d6 Pre-loaded Inner Ø

R
d5

d1
d2

b1
b2 d4 b3
d7
d3

Dimensions [mm]

d1 d1 tolerance d2 d3 d4 d5 d6 d7 b1 b2 b3 R Part No.
(±0.2) ®
10 +0.025 +0.083 12 30 12 15 4.5 22 9 2.0 3 4.0 JVFL-10 iglidur clearance-free pre-loaded
12 +0.032 +0.102 14 36 14 18 4.5 26 10 2.0 4 4.5 JVFL-12
16 +0.032 +0.102 18 48 18 24 5.5 34 11 2.5 4 5.5 JVFL-16 plain bearings
20 +0.040 +0.124 23 60 23 30 6.5 44 13 3.0 5 7.0 JVFL-20

Radial and axial pre-load

Zero clearance in unloaded condition

Material: iglidur J
®

Maintenance-free and predictable service life

ASEAN 09/2023 ASEAN 09/2023

670 Online tools and more information u www.igus-asean.com/two-hole-flange-bearings
