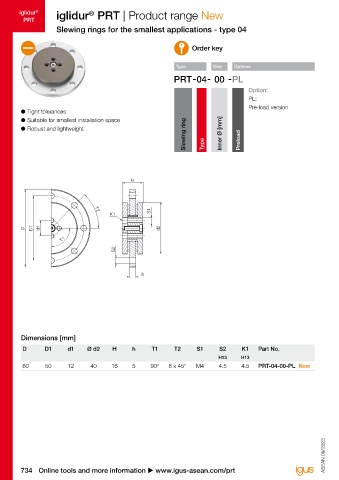

iglidur iglidur PRT | Product range New iglidur PRT | Product range iglidur
®
®
PRT PRT
Slewing rings for the smallest applications - type 04 Slewing rings, lightweight - type 02
Order key Order key

Type Size Options Type Size Options

Option:
PL: Standard Stainless steel version
Pre-load version
● Tight tolerances
● Suitable for smallest installation space
Slewing ring Type Inner Ø [mm] Preload Slewing ring Type Inner Ø [mm] Collar clamps
● Robust and lightweight Housing material

Options:
Low-cost version Solid plastic design
Housing material Collar clamps
®
H AL: Aluminium Blank: iglidur J4
ES: 316 stainless steel A180: iglidur A180,
®
LC: Low-cost FDA-compliant
P: Solid plastic
S1
T2
K1
D D1 d1 d2
FDA-compliant
T1
S2

● Slewing rings with extremely light weight
h ● Outer ring made from anodised aluminium,
316 stainless steel (upon request) or iguton G
®
● Collar clamps made from iglidur J4 or FDA-compliant
iglidur A180
®
● 30% lighter than standard -AL type

Dimensions [mm] Dimensions [mm]

D D1 d1 Ø d2 H h T1 T2 S1 S2 K1 Part No. D 10) D1 d1 d d2 H h T1 T2 S2 K1 K2 Part No.
H13 H13 for screw for screw nut
60 50 12 40 16 5 90° 8 x 45° M4 4.5 4.5 PRT-04-00-PL New 80 70 31 20 60 16 5 6 x 60° 6 x 60° 4.5 DIN 6912 M5 ISO 4035 M5 PRT-02-20-
100 91 42.5 30 80 19 6 8 x 45° 8 x 45° 4.5 DIN 7984 M5 ISO 4035 M5 PRT-02-30-
150 135 65 50 120 20 6 16 x 22,5° 8 x 45° 6.6 Through hole 6.5 mm PRT-02-50-
160 145 86.0 60 130 30 10 12 x 30° 20 x 18° 5.5 Counterbore Ø16 and 6.5 deep PRT-02-60- 116)

10) Tolerance according to DIN ISO 2768 mK
116) Only available with body made from aluminium and stainless steel
Please add suffix "-A180" for FDA-compliant version

ASEAN 09/2023 ASEAN 09/2023 All stainless steel versions

upon request
