iglidur iglidur PRT | Product range New iglidur PRT | Product range New iglidur
®
®
PRT PRT

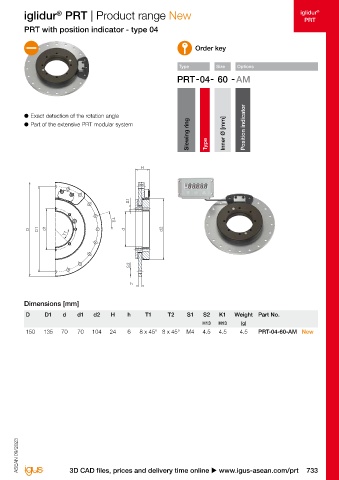

Felt cover for PRT slewing ring bearing - type 01 and 04 PRT with position indicator - type 04
Order key Order key

Type Size Options Type Size Options

Options:
01: Type 01
04: Type 04
● Prevents dirt from reaching the sliding elements ● Exact detection of the rotation angle
● For all 01 and 04 series sizes ● Part of the extensive PRT modular system Position indicator
● Part of the extensive PRT modular system Slewing ring Inner Ø [mm] Slewing ring Inner Ø [mm]
● No additional lubricants necessary Type Felt seal Type
● For all PRT series

H
h

S1

D D1 d T1 D D1 d1 T2 d d2
T1

S2

h

Dimensions [mm] Dimensions [mm]
D D1 d h T1 Part No. D D1 d d1 d2 H h T1 T2 S1 S2 K1 Weight Part No.
H13 H13 [g]
80 70 20 4 8 x 45° PRT--20-SG New 150 135 70 70 104 24 6 8 x 45° 8 x 45° M4 4.5 4.5 4.5 PRT-04-60-AM New
90 80 30 4 8 x 45° PRT--30-SG New
110 100 50 4 8 x 45° PRT--50-SG New
120 110 60 4 8 x 45° PRT--60-SG New
160 150 100 4 8 x 45° PRT--100-SG New
210 200 150 4 16 x 22,5° PRT--150-SG New
260 250 200 4 16 x 22,5° PRT--200-SG New
360 350 300 4 16 x 22,5° PRT--300-SG New

Assembly instructions available in the
download area
u www.igus-asean.com/prt-assembly
ASEAN 09/2023 ASEAN 09/2023

732 Online tools and more information u www.igus-asean.com/prt 3D CAD files, prices and delivery time online u www.igus-asean.com/prt 733
