iglidur iglidur PRT | Product range iglidur PRT | Product range iglidur
®
®
PRT PRT

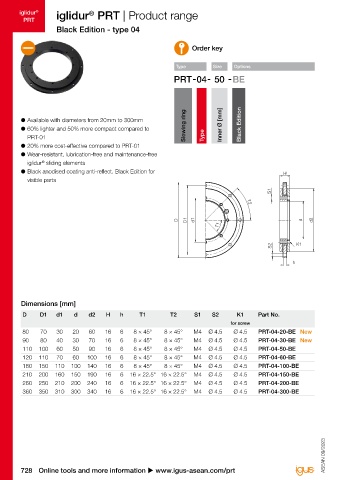

Black Edition - type 04 Slot nut profile - type 04
Order key Order key

Type Size Options Type Size Options

● Available with diameters from 20mm to 300mm ● Fast assembly
● 60% lighter and 50% more compact compared to Slewing ring Inner Ø [mm] Black Edition ● Easy positioning with no additional holes Slewing ring Inner Ø [mm] Slot nuts
PRT-01 Type Type
● 20% more cost-effective compared to PRT-01
● Wear-resistant, lubrication-free and maintenance-free
iglidur sliding elements
®
● Black anodised coating anti-reflect. Black Edition for H H
visible parts H Detail Z T2 h1 Detail Z
7
h1 4
T2 4
S1
10.5 3 5 Z 10.5 5
T2
Z
D D1 d3 d d2 Detail Y D D1 d3 2x d3 d Y d2
D D1 d1 d d2 Y 4 Detail Y
T1 4
Ø10 M6
Ø10 M6
S2 h
d3
S2 K1 d3 S2 h
2x d3
h Slot nut profile up to size 60 Slot nut profile from size 100

Dimensions [mm] Dimensions [mm]
D D1 d1 d d2 H h T1 T2 S1 S2 K1 Part No. D D1 d1 d d2 H h h1 T2 S2 Part No.
for screw
80 70 30 20 60 16 6 8 × 45° 8 × 45° M4 Ø 4.5 Ø 4.5 PRT-04-20-BE New 80 70 30 20 60 22 6 11 8 × 45° Ø 4.5 PRT-04-20-T New
90 80 40 30 70 16 6 8 × 45° 8 × 45° M4 Ø 4.5 Ø 4.5 PRT-04-30-BE New 90 80 40 30 70 22 6 11 8 × 45° Ø 4.5 PRT-04-30-T New
110 100 60 50 90 16 6 8 × 45° 8 × 45° M4 Ø 4.5 Ø 4.5 PRT-04-50-BE 110 100 60 50 90 22 6 11 8 × 45° Ø 4.5 PRT-04-50-T
120 110 70 60 100 16 6 8 × 45° 8 × 45° M4 Ø 4.5 Ø 4.5 PRT-04-60-BE 120 110 70 60 100 22 6 11 8 × 45° Ø 4.5 PRT-04-60-T
160 150 110 100 140 16 6 8 × 45° 8 × 45° M4 Ø 4.5 Ø 4.5 PRT-04-100-BE 160 150 110 100 140 22 6 11 8 × 45° Ø 4.5 PRT-04-100-T
210 200 160 150 190 16 6 16 × 22.5° 16 × 22.5° M4 Ø 4.5 Ø 4.5 PRT-04-150-BE 210 200 160 150 190 22 6 11 16 × 22.5° Ø 4.5 PRT-04-150-T
260 250 210 200 240 16 6 16 × 22.5° 16 × 22.5° M4 Ø 4.5 Ø 4.5 PRT-04-200-BE 260 250 210 200 240 22 6 11 16 × 22.5° Ø 4.5 PRT-04-200-T
360 350 310 300 340 16 6 16 × 22.5° 16 × 22.5° M4 Ø 4.5 Ø 4.5 PRT-04-300-BE 360 350 310 300 340 22 6 11 16 × 22.5° Ø 4.5 PRT-04-300-T

ASEAN 09/2023 ASEAN 09/2023

728 Online tools and more information u www.igus-asean.com/prt 3D CAD files, prices and delivery time online u www.igus-asean.com/prt 729
