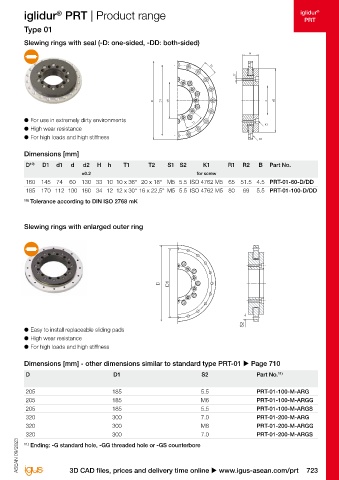

iglidur iglidur PRT | Product range iglidur PRT | Product range iglidur
®
®
PRT PRT
Type 01 Type 01
Slewing rings with square flange for direct mounting on flat surfaces Slewing rings with seal (-D: one-sided, -DD: both-sided)
H
d1 h2
S2 T2
S1

A E D d d2 D D1 d1 d d2
S1
K1
● No through-hole necessary ● For use in extremely dirty environments
T1 K1
● No separate spacer ring ● High wear resistance
● Fix with only 4 screws E h1 ● For high loads and high stiffness K1
A H
Dimensions [mm] Dimensions [mm]
d d1 d2 D A E H h1 h2 T1 S1 S2 K1 Part No. D 10) D1 d1 d d2 H h T1 T2 S1 S2 K1 R1 R2 B Part No.
for screw ±0.2 for screw
20 31.0 60 62 65 50 26.0 18 2.0 6 x 60° M4 4.5 DIN 7984 M4 PRT-01-20-SQ 160 145 74 60 130 33 10 10 x 36° 20 x 18° M5 5.5 ISO 4762 M5 65 51.5 4.5 PRT-01-60-D/DD
30 42.5 82 84 85 65 30.5 21 1.5 8 x 45° M4 4.5 DIN 7984 M4 PRT-01-30-SQ 185 170 112 100 160 34 12 12 x 30° 16 x 22,5° M5 5.5 ISO 4762 M5 80 69 5.5 PRT-01-100-D/DD
50 65.0 120 122 125 100 34.5 23 1.5 8 x 45° M6 6.6 ISO 4762 M6 PRT-01-50-SQ 10) Tolerance according to DIN ISO 2768 mK

Slewing rings with collar clamp Slewing rings with enlarged outer ring
H

S1 K1

D D1 d1 d d2
T1
T2
D D1
S2 h
Slewing ring with PRT-01-30-C collar clamp Collar clamp for
PRT-01-30-C
Slewing ring PRT-01-30 with collar clamp for 30h7 tolerance shafts.
● For simple handling designs ● Easy to install replaceable sliding pads S2
● Quick and easy assembly ● High wear resistance
● Max. tightening torque: 5Nm ● For high loads and high stiffness

Dimensions [mm] Dimensions [mm] - other dimensions similar to standard type PRT-01 u Page 710
D D1 d1 d d2 H h T1 T2 S1 S2 K1 Part No. D D1 S2 Part No. 11)
for screw
80 70 31 20 60 32.5 8 4 x 60° 6 x 60° M4 4.5 DIN 7984 M4 PRT-01-20-C 205 185 5.5 PRT-01-100-M-ARG
100 91 42.5 30 82 36.0 10 6 x 45° 8 x 45° M4 4.5 DIN 7984 M4 PRT-01-30-C 205 185 M6 PRT-01-100-M-ARGG
205 185 5.5 PRT-01-100-M-ARGS
320 300 7.0 PRT-01-200-M-ARG
320 300 M8 PRT-01-200-M-ARGG
320 300 7.0 PRT-01-200-M-ARGS
