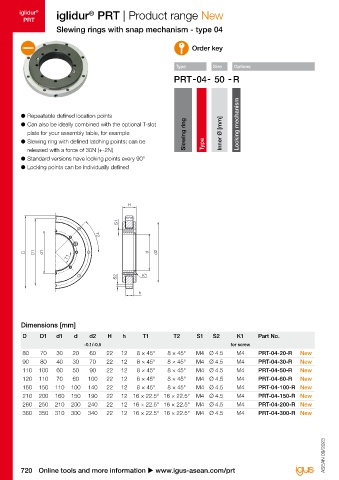

iglidur iglidur PRT | Product range New iglidur PRT | Product range New iglidur
®
®
PRT PRT
Slewing rings with snap mechanism - type 04 Slewing rings with locking device - type 04
Order key Order key

Type Size Options Type Size Options

● Repeatable defined location points PRT-04_xx_ART PRT-04_xx_ART-PD
● Can also be ideally combined with the optional T-slot Locking mechanism
plate for your assembly table, for example Slewing ring Inner Ø [mm] Slewing ring Inner Ø [mm] Locking device
● Slewing ring with defined latching points; can be Type Type Design
released with a force of 30N (+-2N)
● Standard versions have locking points every 90° Options:
● Locking points can be individually defined
 = Suffix
PRT-04_xx_ART-U PRT-04_xx_ART-RC PD: With locking mechanism and position monitoring
U: With locking mechanism and universal adapter
RC: With locking mechanism and remote trigger
H
H
S1
● Easy and quick release by hand or remote trigger S1
● Available with electronic closing control mechanism or
T2
with universal adapter for custom solutions T2
D D1 d1 d d2
T1 D D1 d1 d d2
T1

S2 K1
S2 K1
h
h

Dimensions [mm] Dimensions [mm]

D D1 d1 d d2 H h T1 T2 S1 S2 K1 Part No. D1 D1 d d1 Ø d2 H h T1 T2 S1 S2 K1 Part No.
-0.1/-0.5 for screw H13 H13
80 70 30 20 60 22 12 8 × 45° 8 × 45° M4 Ø 4.5 M4 PRT-04-20-R New 80 70 20 30 60 28 6 8 × 45° 8 × 45° M4 Ø 4.5 4.5 PRT-04-20-ART- New
90 80 40 30 70 22 12 8 × 45° 8 × 45° M4 Ø 4.5 M4 PRT-04-30-R New 90 80 30 40 70 28 6 8 × 45° 8 × 45° M4 Ø 4.5 4.5 PRT-04-30-ART- New
110 100 60 50 90 22 12 8 × 45° 8 × 45° M4 Ø 4.5 M4 PRT-04-50-R New 110 100 50 60 90 28 6 8 × 45° 8 × 45° M4 Ø 4.5 4.5 PRT-04-50-ART- New
120 110 70 60 100 22 12 8 × 45° 8 × 45° M4 Ø 4.5 M4 PRT-04-60-R New 120 110 60 70 100 28 6 8 × 45° 8 × 45° M4 Ø 4.5 4.5 PRT-04-60-ART- New
160 150 110 100 140 22 12 8 × 45° 8 × 45° M4 Ø 4.5 M4 PRT-04-100-R New 160 150 100 110 140 28 6 8 × 45° 8 × 45° M4 Ø 4.5 4.5 PRT-04-100-ART- New
210 200 160 150 190 22 12 16 × 22.5° 16 × 22.5° M4 Ø 4.5 M4 PRT-04-150-R New 210 200 150 160 190 28 6 16 × 22.5° 16 × 22.5° M4 Ø 4.5 4.5 PRT-04-150-ART- New
260 250 210 200 240 22 12 16 × 22.5° 16 × 22.5° M4 Ø 4.5 M4 PRT-04-200-R New 260 250 200 210 240 16 6 16 × 22.5° 16 × 22.5° M4 Ø 4.5 4.5 PRT-04-200-ART- New
360 350 310 300 340 22 12 16 × 22.5° 16 × 22.5° M4 Ø 4.5 M4 PRT-04-300-R New 360 350 300 310 340 16 6 16 × 22.5° 16 × 22.5° M4 Ø 4.5 4.5 PRT-04-300-ART- New
