iglidur iglidur PRT | Product range New iglidur PRT | Product range New iglidur
®
®
PRT PRT

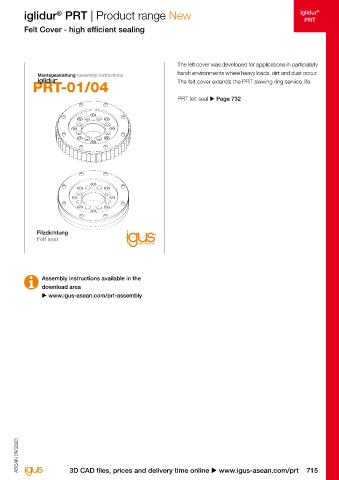

Slewing rings with inner drive ring - type 04 Felt Cover - high efficient sealing
Order key

Type Size Options The felt cover was developed for applications in particularly
Montageanleitung Assembly instructions harsh environments where heavy loads, dirt and dust occur.
iglidur
®
PRT-01/04 The felt cover extends the PRT slewing ring service life.
TI-ST PRT felt seal u Page 732
Slewing ring Type Inner Ø [mm] Inner gear teeth Tooth profile type

H H
● Easy replacement and extension: modular
construction kit design S1 S1
● Inner drive teeth T2 T2

D D1 D d1 D1 d d1 d d2 d2
T1 T1

S2 S2 K1 K1
Filzdichtung
h h Felt seal

Dimensions [mm]

D D1 d1 d d2 H h z Part No.
Assembly instructions available in the
download area
110 100 60 46 90 16 6 48 PRT-04-50-TI-ST New u www.igus-asean.com/prt-assembly
120 110 70 56 100 16 6 58 PRT-04-60-TI-ST New
160 150 110 96 140 16 6 98 PRT-04-100-TI-ST New
210 200 160 146 190 16 6 148 PRT-04-150-TI-ST New
260 250 210 196 240 16 6 198 PRT-04-200-TI-ST New
360 350 310 296 340 16 6 298 PRT-04-300-TI-ST New

T1 T2 S1 S2 K1 Module Part No.
for screw

8 × 45° 8 × 45° M4 Ø 4.5 Ø 4.5 1 PRT-04-50-TI-ST New
8 × 45° 8 × 45° M4 Ø 4.5 Ø 4.5 1 PRT-04-60-TI-ST New
8 × 45° 8 × 45° M4 Ø 4.5 Ø 4.5 1 PRT-04-100-TI-ST New
16 × 22.5° 16 × 22.5° M4 Ø 4.5 Ø 4.5 1 PRT-04-150-TI-ST New
16 × 22.5° 16 × 22.5° M4 Ø 4.5 Ø 4.5 1 PRT-04-200-TI-ST New
16 × 22.5° 16 × 22.5° M4 Ø 4.5 Ø 4.5 1 PRT-04-300-TI-ST New

ASEAN 09/2023 ASEAN 09/2023

714 Online tools and more information u www.igus-asean.com/prt 3D CAD files, prices and delivery time online u www.igus-asean.com/prt 715
