iglidur iglidur PRT | Product range iglidur PRT | Product range iglidur
®
®
PRT PRT

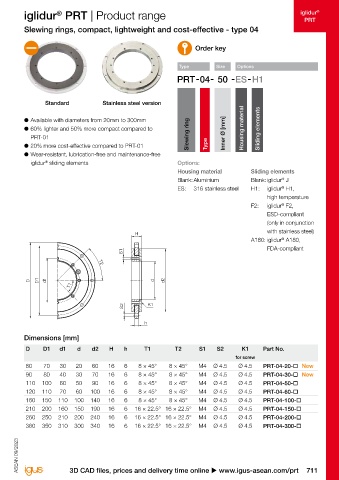

Slewing rings, high rigidity - type 01 Slewing rings, compact, lightweight and cost-effective - type 04
Order key Order key

Type Size Options Type Size Options

Standard Stainless steel version
Standard Stainless steel version

● Aluminium or stainless steel body (upon request) ● Available with diameters from 20mm to 300mm
● Replaceable maintenance-free sliding elements made Housing material Sliding elements ● 60% lighter and 50% more compact compared to Housing material Sliding elements
of iglidur J (Standard) u Page 163, iglidur H1 (for Slewing ring Inner Ø [mm] PRT-01 Slewing ring Inner Ø [mm]
®
®
temperatures up to +180°C) uPage 345, Type ● 20% more cost-effective compared to PRT-01 Type
iglidur F2 (ESD-compliant) uPage 553 or ● Wear-resistant, lubrication-free and maintenance-free
®
iglidur A180 (FDA-compliant) uPage 425 Options: iglidur sliding elements Options:
®
®
Housing material Sliding elements Housing material Sliding elements
Blank: Aluminium Blank: iglidur J Blank: Aluminium Blank: iglidur J
®
®
ES: 316 stainless steel H1: iglidur H1, ES: 316 stainless steel H1: iglidur H1,
®
®
high temperature high temperature
F2: iglidur F2, F2: iglidur F2,
®
®
Accessories ESD-compliant ESD-compliant
u From page 718
(only in conjunction (only in conjunction
with stainless steel) with stainless steel)
H H
A180: iglidur A180, A180: iglidur A180,
®
®
FDA-compliant FDA-compliant
T2 S1
S1 T2
D D1 d1 d d2 T1 D D1 d1 d d2
T1
T2

T1 K1
S2 K1

S2 h h

Dimensions [mm] Dimensions [mm]

D 10) D1 d1 d d2 H h T1 T2 S1 S2 K1 R1 R2 B Part No. D D1 d1 d d2 H h T1 T2 S1 S2 K1 Part No.
±0.2 for screw for screw
80 70 31 20 60 24 8 6 x 60° 6 x 60° M4 4.5 DIN 7984 M4 30 20 3.5 PRT-01-20- 80 70 30 20 60 16 6 8 × 45° 8 × 45° M4 Ø 4.5 Ø 4.5 PRT-04-20- New
100 91 42.5 30 82 29 10 8 x 45° 8 x 45° M4 4.5 DIN 7984 M4 41 29 4.5 PRT-01-30- 90 80 40 30 70 16 6 8 × 45° 8 × 45° M4 Ø 4.5 Ø 4.5 PRT-04-30- New
150 135 65 50 120 33 10 8 x 45° 16 x 22,5° M6 6.6 ISO 4762 M6 60 46.5 4.5 PRT-01-50- 110 100 60 50 90 16 6 8 × 45° 8 × 45° M4 Ø 4.5 Ø 4.5 PRT-04-50-
160 145 74 60 130 33 10 10 x 36° 20 x 18° M5 5.5 ISO 4762 M5 65 51.5 4.5 PRT-01-60- 120 110 70 60 100 16 6 8 × 45° 8 × 45° M4 Ø 4.5 Ø 4.5 PRT-04-60-
185 170 112 100 160 34 12 12 x 30° 16 x 22,5° M5 5.5 ISO 4762 M5 80 69 5.5 PRT-01-100- 160 150 110 100 140 16 6 8 × 45° 8 × 45° M4 Ø 4.5 Ø 4.5 PRT-04-100-
250 235 165 150 220 35 12 12 x 30° 16 x 22,5° M5 5.5 ISO 4762 M5 110 96.5 5.5 PRT-01-150- 210 200 160 150 190 16 6 16 × 22.5° 16 × 22.5° M4 Ø 4.5 Ø 4.5 PRT-04-150-
300 285 215 200 274 38 15 12 x 30° 16 x 22,5° M6 6.6 ISO 4762 M6 137 124 7.0 PRT-01-200- 260 250 210 200 240 16 6 16 × 22.5° 16 × 22.5° M4 Ø 4.5 Ø 4.5 PRT-04-200-
450 430 320 300 410 42 15 12 x 30° 16 x 22,5° M8 9.0 DIN 7984 M8 205 186.6 7.0 PRT-01-300- 360 350 310 300 340 16 6 16 × 22.5° 16 × 22.5° M4 Ø 4.5 Ø 4.5 PRT-04-300-
10) Tolerance according to DIN ISO 2768 mK

All stainless steel versions
upon request ASEAN 09/2023 ASEAN 09/2023
710 Online tools and more information u www.igus-asean.com/prt 3D CAD files, prices and delivery time online u www.igus-asean.com/prt 711
