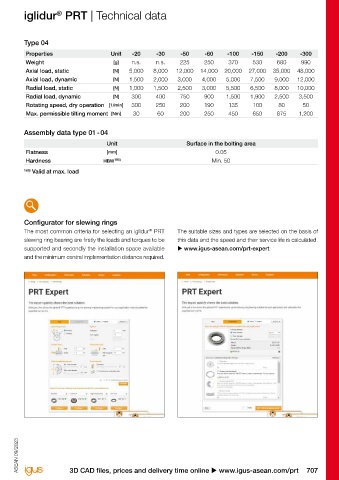

iglidur PRT | Technical data iglidur PRT | Technical data
®
®
Slewing ring general properties

Type 01 Type 04

Properties Unit -20 -30 -50 -60 -100 -150 -200 -300 Properties Unit -20 -30 -50 -60 -100 -150 -200 -300
Weight [kg] 0.2 0.4 1.0 1.1 1.3 2.2 3.2 7.6 Weight [g] n.s. n.s. 225 250 370 530 680 990
Axial load, static [N] 15,000 27,000 40,000 50,000 55,000 80,000 100,000 150,000 Axial load, static [N] 5,000 8,000 12,000 14,000 20,000 27,000 35,000 48,000
Axial load, dynamic [N] 4,000 7,000 10,000 15,000 16,000 25,000 30,000 90,000 Axial load, dynamic [N] 1,500 2,000 3,000 4,000 5,000 7,500 9,000 12,000
Radial load, static [N] 2,300 5,000 8,000 10,000 16,000 25,000 35,000 45,000 Radial load, static [N] 1,000 1,500 2,500 3,000 5,500 6,500 8,000 10,000
Radial load, dynamic [N] 600 1,500 2,500 3,000 5,000 8,000 10,000 27,000 Radial load, dynamic [N] 300 400 750 900 1,500 1,900 2,500 3,500
Rotating speed, dry operation [1/min] 300 250 200 200 150 100 80 50 Rotating speed, dry operation [1/min] 300 250 200 190 135 100 80 50
Max. permissible tilting moment [Nm] 100 200 600 800 1,500 2,000 3,800 5,000 Max. permissible tilting moment [Nm] 30 60 200 250 450 650 875 1,200

Type 02 Assembly data type 01 - 04

Properties Unit -20-AL -20-ES -20-LC -20-P -30-AL -30-ES -30-LC -30-P Unit Surface in the bolting area
Weight [g] 105 202 87 72 200 363 167 145 Flatness [mm] 0.05
Axial load, static [N] 13,000 13,000 13,000 13,000 25,000 25,000 25,000 25,000 Hardness HBW 185) Min. 50
Axial load, dynamic [N] 4,000 4,000 4,000 4,000 7,000 7,000 7,000 7,000 185) Valid at max. load
Radial load, static [N] 2,000 2,000 2,000 2,000 2,500 2,500 2,500 2,500
Radial load, dynamic [N] 500 500 500 500 700 700 700 700
Rotating speed, dry operation [1/min] 250 250 250 250 200 200 180 180
Max. permissible tilting moment [Nm] 60 60 40 40 100 100 50 50

Properties Unit -50-AL -50-ES -50-LC -50-P -60-AL -60-ES Configurator for slewing rings
®
Weight [g] 440 747 380 338 700 1,322 The most common criteria for selecting an iglidur PRT The suitable sizes and types are selected on the basis of
Axial load, static [N] 35,000 35,000 35,000 35,000 45,000 45,000 slewing ring bearing are firstly the loads and torques to be this data and the speed and their service life is calculated.
Axial load, dynamic [N] 9,000 9,000 9,000 9,000 12,000 12,000 supported and secondly the installation space available u www.igus-asean.com/prt-expert
Radial load, static [N] 5,000 5,000 5,000 5,000 10,000 10,000 and the minimum central implementation distance required.
Radial load, dynamic [N] 1,200 1,200 1,200 1,200 2,800 2,800
Rotating speed, dry operation [1/min] 120 120 120 120 120 120
Max. permissible tilting moment [Nm] 120 120 100 100 200 200

Type 03
Properties Unit -80
Weight [kg] 0.47
Axial load, static (compressive force direction) [N] 45,000
Axial load, static (tensile force direction) 154) [N] 5,000
Axial load, dynamic (compressive force direction) [N] 12,000
Axial load, dynamic (tensile force direction) 154) [N] 1,200
Radial load, static [N] 4,000
Radial load, dynamic [N] 1,000
Rotating speed, dry operation [1/min] 120
Max. permissible tilting moment 154) [Nm] 120
Axial clearance 0.7mm, radial clearance 0.9mm
154) Only when the PRT is fitted onto a flat, stable surface

ASEAN 09/2023 ASEAN 09/2023

706 Online tools and more information u www.igus-asean.com/prt 3D CAD files, prices and delivery time online u www.igus-asean.com/prt 707
