iglidur PRT | Advantages iglidur PRT | Application examples
®
®

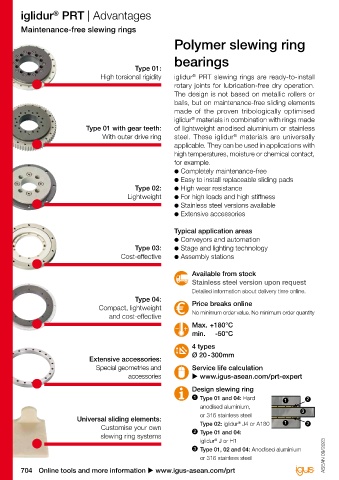

Maintenance-free slewing rings

Polymer slewing ring

bearings
Type 01:
High torsional rigidity iglidur PRT slewing rings are ready-to-install Rotating digital flip chart
®
rotary joints for lubrication-free dry operation. The compact design of the PRT-02-30 makes it the ideal
The design is not based on metallic rollers or solution for the rotating digital flip chart. Thanks to ready-
balls, but on maintenance-free sliding elements to-install delivery and easy assembly. In addition, due
made of the proven tribologically optimised to the plastic sliding elements made of iglidur material,
®
iglidur materials in combination with rings made maintenance work is no longer necessary after installation.
®
Type 01 with gear teeth: of lightweight anodised aluminium or stainless
With outer drive ring steel. These iglidur materials are universally
®
applicable. They can be used in applications with
high temperatures, moisture or chemical contact,
for example.
● Completely maintenance-free
● Easy to install replaceable sliding pads
Type 02: ● High wear resistance
Lightweight ● For high loads and high stiffness
● Stainless steel versions available
● Extensive accessories
Personal robot
The PRT slewing ring bearing makes the robot's
Typical application areas rear axis lubrication-free and maintenance-free. In
● Conveyors and automation
Type 03: ● Stage and lighting technology addition, the service life of the PRT for use in robots
Cost-effective ● Assembly stations was calculated in advance and far exceeds the design
requirements.

Available from stock
Stainless steel version upon request
Detailed information about delivery time online.
Type 04:
Compact, lightweight Price breaks online
and cost-effective No minimum order value. No minimum order quantity
Max. +180°C
min. -50°C

4 types
Ø 20 - 300mm
Extensive accessories: Assembly table with slewing ring bearing
Special geometries and Service life calculation The PRT-01-30-TO-AT10 has proven to be the optimum
accessories u www.igus-asean.com/prt-expert solution due to its ready-to-install delivery with the AT10
belt profile. Precise and automatic rotation of the assembly
Design slewing ring table is made possible. Due to the plastic sliding elements
Type 01 and 04: Hard 1 2 made of iglidur material, no maintenance work is required
®
anodised aluminium, 3 after installation.
Universal sliding elements: or 316 stainless steel 1
®
Customise your own Type 02: iglidur J4 or A180 2
slewing ring systems Type 01 and 04:
iglidur J or H1
®
Type 01, 02 and 04: Anodised aluminium
or 316 stainless steel ASEAN 09/2023
704 Online tools and more information u www.igus-asean.com/prt 3D CAD files, prices and delivery time online u www.igus-asean.com/prt 705
