iglidur iglidur PRT | Product range iglidur PRT | Product range New iglidur
®
®
PRT PRT

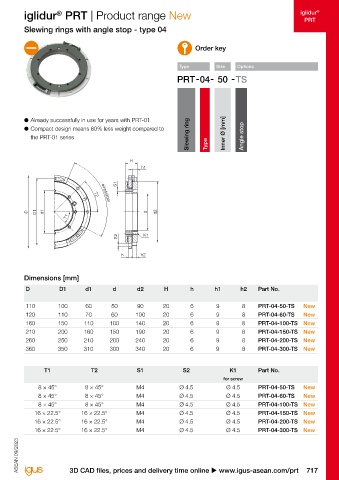

Slewing rings with angle stop - type 01 Slewing rings with angle stop - type 04
Order key Order key

Type Size Options Type Size Options

● Quick adjustment of the stop ● Already successfully in use for years with PRT-01
Slewing ring Type Inner Ø [mm] Angle stop the PRT-01 series Slewing ring Type Inner Ø [mm] Angle stop
● Load ratings identical to standard type 01 ● Compact design means 60% less weight compared to

H
H h1
X
X
S1
S1 T2 einstellbar

T1
T2
R1
T3
D D1 d1 d d2 D D1 d1 T1 d d2
B B R2
K1
S2 K1
S2

h h h2

Dimensions [mm] Dimensions [mm]

D 10) D1 d1 d d2 H h T1 T2 S1 S2 K1 R1 R2 B Part No. D D1 d1 d d2 H h h1 h2 Part No.
±0.2 for screw
80 70 31.0 20 60 24 8 6 x 60° 6 x 60° M4 4.5 DIN 7984 M4 30 20 3.5 PRT-01-20-AA 110 100 60 50 90 20 6 9 8 PRT-04-50-TS New
100 91 42.5 30 82 29 10 8 x 45° 8 x 45° M4 4.5 DIN 7984 M4 41 29 4.5 PRT-01-30-AA 120 110 70 60 100 20 6 9 8 PRT-04-60-TS New
150 135 65.0 50 120 33 10 8 x 45° 16 x 22,5° M6 6.6 ISO 4762 M6 60 46.5 4.5 PRT-01-50-AA 160 150 110 100 140 20 6 9 8 PRT-04-100-TS New
160 145 74.0 60 130 33 10 10 x 36° 20 x 18° M5 5.5 ISO 4762 M5 65 51.5 4.5 PRT-01-60-AA 210 200 160 150 190 20 6 9 8 PRT-04-150-TS New
185 170 112.0 100 160 34 12 12 x 30° 16 x 22,5° M5 5.5 ISO 4762 M5 80 69 5.5 PRT-01-100-AA 260 250 210 200 240 20 6 9 8 PRT-04-200-TS New
250 235 165.0 150 220 35 12 12 x 30° 16 x 22,5° M5 5.5 ISO 4762 M5 110 96.5 5.5 PRT-01-150-AA 360 350 310 300 340 20 6 9 8 PRT-04-300-TS New
300 285 215.0 200 274 38 15 12 x 30° 16 x 22,5° M6 6.6 ISO 4762 M6 137 124 7.0 PRT-01-200-AA
450 430 320.0 300 410 42 15 12 x 30° 16 x 22,5° M8 9.0 DIN 7984 M8 205 186.6 7.0 PRT-01-300-AA
T1 T2 S1 S2 K1 Part No.
10) Tolerance according to DIN ISO 2768 mK for screw
8 × 45° 8 × 45° M4 Ø 4.5 Ø 4.5 PRT-04-50-TS New
8 × 45° 8 × 45° M4 Ø 4.5 Ø 4.5 PRT-04-60-TS New
8 × 45° 8 × 45° M4 Ø 4.5 Ø 4.5 PRT-04-100-TS New
16 × 22.5° 16 × 22.5° M4 Ø 4.5 Ø 4.5 PRT-04-150-TS New
16 × 22.5° 16 × 22.5° M4 Ø 4.5 Ø 4.5 PRT-04-200-TS New
16 × 22.5° 16 × 22.5° M4 Ø 4.5 Ø 4.5 PRT-04-300-TS New
ASEAN 09/2023 ASEAN 09/2023

716 Online tools and more information u www.igus-asean.com/prt 3D CAD files, prices and delivery time online u www.igus-asean.com/prt 717
