iglidur iglidur PRT | Product range iglidur PRT | Product range New iglidur
®
®
PRT PRT

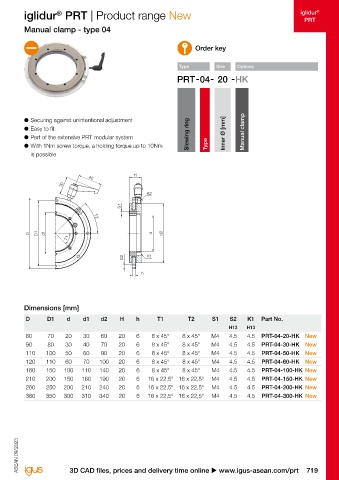

Manual clamp - type 01 Manual clamp - type 04
Order key Order key

Type Size Type Size Options

Options:
Blank: Threaded pin
K: Manual clamp

● With 1Nm screw torque, a holding torque up to 10Nm ● Securing against unintentional adjustment
is possible Manual clamp Manual clamp ● Easy to fit Manual clamp

● Easy to screw onto outer ring Slewing ring Inner Ø [mm] ● Part of the extensive PRT modular system Slewing ring Type Inner Ø [mm]
With 1Nm screw torque, a holding torque up to 10Nm
●
is possible

H
K1
40
D1 30
D
K1
w
D D1 K2
T2
w W S1
T2
W T2
D D1 d1 d d2
H T1
PRT-HK-60 PRT-HK-60-K
h gk
H
S2 K1
h gk
PRT-HK- PRT-HK- PRT with fitted
20/30 50/60/100/150/ 200/300 manual clamp h

Dimensions [mm] Dimensions [mm]
D D1 T2 K1 H h gk W Part No. D D1 d d1 d2 H h T1 T2 S1 S2 K1 Part No.
for screw H13 H13
80 70 60.0° Ø 4.5 7 3.2 M5 90° PRT-HK-20 80 70 20 30 60 20 6 8 x 45° 8 x 45° M4 4.5 4.5 PRT-04-20-HK New
100 91 45.0° Ø 4.5 8 3.2 M5 60° PRT-HK-30 90 80 30 40 70 20 6 8 x 45° 8 x 45° M4 4.5 4.5 PRT-04-30-HK New
150 135 22.5° Ø 11.0 – 10 M6 40° PRT-HK-50 110 100 50 60 90 20 6 8 x 45° 8 x 45° M4 4.5 4.5 PRT-04-50-HK New
160 145 18.0° Ø 10.0 – 10 M6 35° PRT-HK-60 120 110 60 70 100 20 6 8 x 45° 8 x 45° M4 4.5 4.5 PRT-04-60-HK New
205 185 22.5° Ø 10.0 – 10 M6 40° PRT-HK-100 12) 160 150 100 110 140 20 6 8 x 45° 8 x 45° M4 4.5 4.5 PRT-04-100-HK New
210 200 22.5° Ø 10.0 – 10 M6 35° PRT-HK-150 210 200 150 160 190 20 6 16 x 22,5° 16 x 22,5° M4 4.5 4.5 PRT-04-150-HK New
320 300 22.5° Ø 11.0 – 10 M6 40° PRT-HK-200 12) 260 250 200 210 240 20 6 16 x 22,5° 16 x 22,5° M4 4.5 4.5 PRT-04-200-HK New
360 350 22.5° Ø 15.0 – 12 M6 30° PRT-HK-300 360 350 300 310 340 20 6 16 x 22,5° 16 x 22,5° M4 4.5 4.5 PRT-04-300-HK New
12) To be connected only with enlarged outer ring

ASEAN 09/2023 ASEAN 09/2023

718 Online tools and more information u www.igus-asean.com/prt 3D CAD files, prices and delivery time online u www.igus-asean.com/prt 719
