iglidur iglidur PRT | Product range iglidur PRT | Product range New iglidur
®
®
PRT PRT

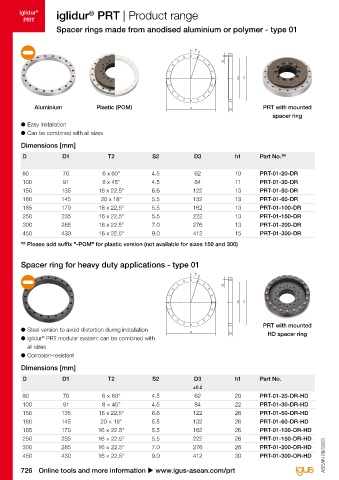

Spacer rings made from anodised aluminium or polymer - type 01 Spacer rings made from anodised aluminium or polymer - type 01
Order key

Type Size Options

Aluminium Plastic (POM) PRT with mounted
spacer ring ● Allows easy installation of slewing ring bearings
● Easy installation on surfaces
● Can be combined with all sizes ● Part of the extensive modular system Slewing ring Inner Ø [mm] Spacer ring

Dimensions [mm] Type

D D1 T2 S2 D3 h1 Part No. 39)
h1
80 70 6 x 60° 4.5 62 10 PRT-01-20-DR S2
100 91 8 x 45° 4.5 84 11 PRT-01-30-DR
150 135 16 x 22,5° 6.6 122 13 PRT-01-50-DR T2
160 145 20 x 18° 5.5 132 13 PRT-01-60-DR
D D1 D3
185 170 16 x 22,5° 5.5 162 13 PRT-01-100-DR
250 235 16 x 22,5° 5.5 222 13 PRT-01-150-DR
300 285 16 x 22,5° 7.0 276 13 PRT-01-200-DR
450 430 16 x 22,5° 9.0 412 15 PRT-01-300-DR

39) Please add suffix "-POM" for plastic version (not available for sizes 150 and 300)

Spacer ring for heavy duty applications - type 01 Dimensions [mm]
D D1 T2 S2 D3 h1 Part No.

80 70 8 x 45° 4.5 62 6 PRT-04-20-DR New
90 80 8 x 45° 4.5 72 6 PRT-04-30-DR New
110 100 8 x 45° 4.5 92 6 PRT-04-50-DR New
120 110 8 x 45° 4.5 102 6 PRT-04-60-DR New

PRT with mounted 160 150 8 x 45° 4.5 142 6 PRT-04-100-DR New
● Steel version to avoid distortion during installation HD spacer ring 210 200 16 x 22,5° 4.5 192 6 PRT-04-150-DR New
● iglidur PRT modular system: can be combined with 260 250 16 x 22,5° 4.5 242 6 PRT-04-200-DR New
®
all sizes 360 350 16 x 22,5° 4.5 342 6 PRT-04-300-DR New
● Corrosion-resistant

Dimensions [mm]
D D1 T2 S2 D3 h1 Part No.
±0.2
80 70 6 × 60° 4.5 62 20 PRT-01-20-DR-HD
100 91 8 × 45° 4.5 84 22 PRT-01-30-DR-HD
150 135 16 x 22,5° 6.6 122 26 PRT-01-50-DR-HD
160 145 20 × 18° 5.5 132 26 PRT-01-60-DR-HD
185 170 16 × 22.5° 5.5 162 26 PRT-01-100-DR-HD
250 235 16 × 22.5° 5.5 222 26 PRT-01-150-DR-HD
300 285 16 × 22.5° 7.0 276 26 PRT-01-200-DR-HD
450 430 16 × 22.5° 9.0 412 30 PRT-01-300-DR-HD ASEAN 09/2023 ASEAN 09/2023

726 Online tools and more information u www.igus-asean.com/prt 3D CAD files, prices and delivery time online u www.igus-asean.com/prt 727
