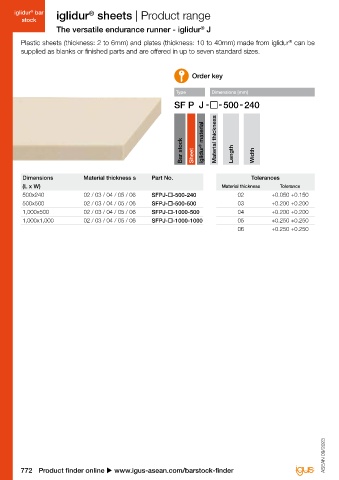

The versatile endurance runner - iglidur J The versatile endurance runner - iglidur J
®
®
Plastic sheets (thickness: 2 to 6mm) and plates (thickness: 10 to 40mm) made from iglidur can be
®
supplied as blanks or finished parts and are offered in up to seven standard sizes.

Order key L

Type Dimensions [mm]
s
B Tolerances

Part No.
Dimensions
Material thickness s
Tolerance
10
500x300
Bar stock Sheet iglidur ® material Material thickness Length Width (L x W) 10 / 15 / 20 / 25 / 30 / 40 SFPJ--500-300 Material thickness +0.200 +1.100
SFPJ--500-610
+0.300 +1.500
10 / 15 / 20 / 25 / 30 / 40
15
500x610
+0.300 +1.500
SFPJ--1000-610
20
10 / 15 / 20 / 25 / 30 / 40
1,000x610
25 +0.300 +1.500
30 +0.500 +2.500
Dimensions Material thickness s Part No. Tolerances
(L x W) Material thickness Tolerance 40 +0.500 +2.500
500x240 02 / 03 / 04 / 05 / 06 SFPJ--500-240 02 +0.050 +0.150
500x500 02 / 03 / 04 / 05 / 06 SFPJ--500-500 03 +0.200 +0.200 Extremely wear-resistant in black - iglidur JB
®
1,000x500 02 / 03 / 04 / 05 / 06 SFPJ--1000-500 04 +0.200 +0.200
1,000x1,000 02 / 03 / 04 / 05 / 06 SFPJ--1000-1000 05 +0.250 +0.250
06 +0.250 +0.250

Dimensions Material thickness s Part No. Tolerances
(L x W) Material thickness Tolerance
500x300 10 / 25 SFPJB--500-300 10 +0.200 +1.100
500x610 10 / 25 SFPJB--500-610 25 +0.300 +1.500
1,000x610 10 / 25 SFPJB--1000-610
