iglidur bar ® ® iglidur bar
®
®

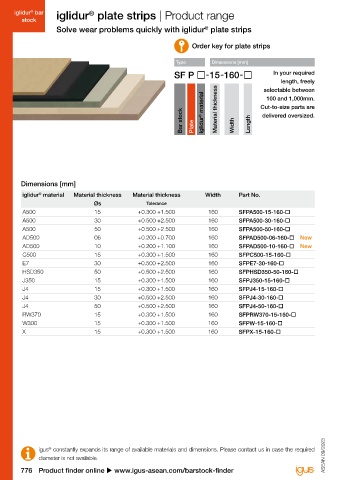

stock iglidur plate strips | Product range iglidur bar stock | Processing information stock
Solve wear problems quickly with iglidur plate strips Processing information for iglidur bar stock
®
®
Order key for plate strips General information for achieving good results changes caused by absorbed water, larger
when processing iglidur bar stock: production tolerances are required for plastics
®
Type Dimensions [mm] ● Use tools made from high-speed steels (HSS) than for metal parts
and hard metal (HM) ● To reduce any retrospective warping as a result
In your required
● Always ensure the tools are extremely sharp of machining stresses, if large material volumes
length, freely ● In view of the far greater thermal expansion are to be machined, interim tempering should
and in perfect condition
selectable between
be used before the refined finishing stage
100 and 1,000mm.

Bar stock Plate iglidur ® material Material thickness Width Length Cut-to-size parts are compared to metals and the dimensional Turning Milling Drilling
delivered oversized.
Sawing

Tool made of HM with alternate teeth HSS HSS HSS
or trapezoidal flat teeth
Clearance angle 5 - 30° 2 - 10° 2 - 30° 3 - 16°
Rake angle 0 - 15° 0 - 8° 0 - 15° 5 - 30°
Tooth pitch 2 - 14 mm – – –
Setting angle – 45 - 60° – –
Dimensions [mm] Tip angle – – – 90 - 130°
Cutting speed max. 300 m/min. 100 - 500m/min. 80 - 500m/min. 20 - 200m/min.
®
iglidur material Material thickness Material thickness Width Part No.
Øs Tolerance Feed rate – 0.05 - 0.5mm/rpm 0.02 - 0.3mm/rpm
A500 15 +0.300 +1.500 160 SFPA500-15-160- Table: General processing information
A500 30 +0.500 +2.500 160 SFPA500-30-160-
A500 50 +0.500 +2.500 160 SFPA500-50-160-
AD500 06 +0.200 +0.700 160 SFPAD500-06-160- New Machining guidelines
AD500 10 +0.200 +1.100 160 SFPAD500-10-160- New Unit iglidur material
®
C500 15 +0.300 +1.500 160 SFPC500-15-160- A160, B160, J, J2, J4, J260 W300 P210 A350 H1 X
E7 30 +0.500 +2.500 160 SFPE7-30-160- W160, JB, A180, M250 T220 J350 H3 A500
HSD350 50 +0.500 +2.500 160 SFPHSD350-50-160- E7, RN326, A181, A250 C500
J350 15 +0.300 +1.500 160 SFPJ350-15-160- RN289 J200, R, AC500
RN44
J4 15 +0.300 +1.500 160 SFPJ4-15-160- Turning AD500
J4 30 +0.500 +2.500 160 SFPJ4-30-160- Clearance angle [°] 6 - 10 6 - 8 5 - 10 6 - 10 5 - 10 6 6 6
J4 50 +0.500 +2.500 160 SFPJ4-50-160- Rake angle [°] 0 - 5 0 - 5 6 - 8 0 - 5 0 - 5 0 0 - 5 0 - 5
RW370 15 +0.300 +1.500 160 SFPRW370-15-160- Setting angle [°] 45 - 60 45 - 60 45 - 60 45 - 60 45 - 60 45 - 60 45 - 60 45 - 60
W300 15 +0.300 +1.500 160 SFPW-15-160-
X 15 +0.300 +1.500 160 SFPX-15-160- Cutting speed [m/min] 250 - 500 300 - 600 300 250 - 500 300 - 400 350 - 400 250 - 500 250 - 500
Feed rate [mm/rpm] 0.1 - 0.5 0.1 - 0.4 0.1 - 0.5 0.1 - 0.5 0.2 - 0.4 0.1 - 0.3 0.1 - 0.5 0.1 - 0.5
Milling
Number of teeth Z1 - Z2 Z1 - Z2 Z1 - Z2 Z1 - Z2 Z1 - Z2 Z1 - Z2 Z1 - Z2 Z1 - Z2
Cutting speed [m/min] 250 - 500 300 300 250 - 500 300 250 - 500 250 - 500 250 - 500

Feed rate [mm/rpm] 0.1 - 0.45 0.15 - 0.5 0.15 - 0.4 0.1 - 0.45 0.15 - 0.5 0.1 - 0.45 0.1 - 0.45 0.1 - 0.45
Drilling
Number of teeth Z2 Z2 Z2 Z2 Z2 Z2 Z2 Z2
Angle of twist [°] 25 25 25 25 25 25 25 25
Acute angle [°] 90 90 90 90 90 90 90 90

Cutting speed [m/min] 50 - 150 50 - 150 50 - 100 50 - 150 50 - 100 20 - 80 50 - 200 50 - 200

igus constantly expands its range of available materials and dimensions. Please contact us in case the required Feed rate [mm/rpm] 0.1 - 0.3 0.1 - 0.3 0,2 - 0,3 0.1 - 0.3 0,2 - 0,3 0.1 - 0.3 0.1 - 0.3 0.1 - 0.3
®
diameter is not available. ASEAN 09/2023 ASEAN 09/2023
776 Product finder online u www.igus-asean.com/barstock-finder Service life calculation online u www.igus-asean.com/barstock-expert 777
