iglidur bar iglidur plates | Product range iglidur plates | Product range iglidur bar
®
®
stock stock

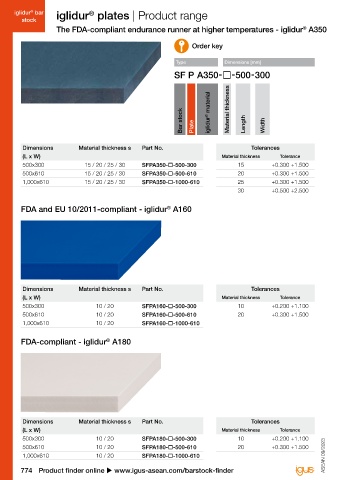

The FDA-compliant endurance runner at higher temperatures - iglidur A350 Impact-resistant, strong and media-resistant - RN326
®
Order key

Type Dimensions [mm]

L

s

Bar stock Plate iglidur ® material Material thickness Length Width B

Dimensions Material thickness s Part No. Tolerances Dimensions Material thickness s Part No. Tolerances
(L x W) Material thickness Tolerance (L x W) Material thickness Tolerance
500x300 15 / 20 / 25 / 30 SFPA350--500-300 15 +0.300 +1.500 500x300 15 SFPRN326--500-300 15 +0.300 +1.500
500x610 15 / 20 / 25 / 30 SFPA350--500-610 20 +0.300 +1.500 500x610 15 SFPRN326--500-610
1,000x610 15 / 20 / 25 / 30 SFPA350--1000-610 25 +0.300 +1.500 1,000x610 15 SFPRN326--1000-610
30 +0.500 +2.500

FDA and EU 10/2011-compliant - iglidur A160 With a low coefficient of friction - iglidur B160 New
®
®

Dimensions Material thickness s Part No. Tolerances Dimensions Material thickness s Part No. Tolerances
(L x W) Material thickness Tolerance (L x W) Material thickness Tolerance
500x300 10 / 20 SFPA160--500-300 10 +0.200 +1.100 500x300 40 SFPB160--500-300 40 +0.500 +2.500
500x610 10 / 20 SFPA160--500-610 20 +0.300 +1.500 500x610 40 SFPB160--500-610
1,000x610 10 / 20 SFPA160--1000-610 1,000x610 40 SFPB160--1000-610

FDA-compliant - iglidur A180 Cost-effective and wear-resistant - iglidur RN44 New
®
®

Dimensions Material thickness s Part No. Tolerances Dimensions Material thickness s Part No. Tolerances
(L x W) Material thickness Tolerance (L x W) Material thickness Tolerance
500x300 10 / 20 SFPA180--500-300 10 +0.200 +1.100 1,000x610 45 SFPRN44--1000-610 45 +0.500 +2.500
500x610 10 / 20 SFPA180--500-610 20 +0.300 +1.500
1,000x610 10 / 20 SFPA180--1000-610 ASEAN 09/2023 ASEAN 09/2023

774 Product finder online u www.igus-asean.com/barstock-finder Service life calculation online u www.igus-asean.com/barstock-expert 775
