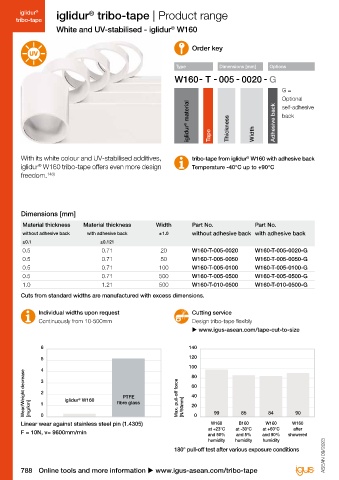

iglidur iglidur tribo-tape | Product range iglidur tribo-tape | Product range iglidur
®
®
tribo-tape tribo-tape
White and UV-stabilised - iglidur W160 High media resistance - iglidur V400
®
®
Order key Order key

Type Dimensions [mm] Options Type Dimensions [mm] Options

G = G =
Optional Optional
iglidur ® material Tape Thickness Width Adhesive back back iglidur ® material Tape Thickness Width Adhesive back back
self-adhesive
self-adhesive

With its white colour and UV-stabilised additives, tribo-tape from iglidur W160 with adhesive back iglidur V400 tribo-tape is not only extremely tribo-tape from iglidur V400 with adhesive back
®
®
®
iglidur W160 tribo-tape offers even more design Temperature -40°C up to +90°C wear-resistant but also extremely media and Temperature -40°C up to +160°C
®
freedom. 148) temperature-resistant. In fact, it has been proven
in tests to be up to 10 times more wear-resistant
than special products for machine beds.

Dimensions [mm] Dimensions [mm]
Material thickness Material thickness Width Part No. Part No. Material thickness Material thickness Width Part No. Part No.
without adhesive back with adhesive back ± 1.0 without adhesive back with adhesive back without adhesive back with adhesive back ±1.0 without adhesive back with adhesive back
±0.1 ±0.121 ±0.1 ±0.121
0.5 0.71 20 W160-T-005-0020 W160-T-005-0020-G 0.5 0.71 120 V400-T-005-0120 V400-T-005-0120-G
0.5 0.71 50 W160-T-005-0050 W160-T-005-0050-G Cuts from standard widths are manufactured with excess dimensions.
0.5 0.71 100 W160-T-005-0100 W160-T-005-0100-G
0.5 0.71 500 W160-T-005-0500 W160-T-005-0500-G
1.0 1.21 500 W160-T-010-0500 W160-T-010-0500-G
Cuts from standard widths are manufactured with excess dimensions.

Individual widths upon request Cutting service Individual widths upon request Cutting service
Continuously from 10-500mm Design tribo-tape flexibly Design tribo-tape flexibly
u www.igus-asean.com/tape-cut-to-size u www.igus-asean.com/tape-cut-to-size

6 140 30 200
180
5 120 25 160
100 20 140
4
Wear/Weight decrease 3 iglidur W160 fibre glass Max. pull-off force [N/50mm] 60 Wear/Weight decrease 15 5 iglidur V400 PTFE bronze Max. pull-off force [N/50mm] 100
120
80
80
10
2
60
40
PTFE
®
®
40
compound
[mg/km]
[mg/km]
1
20
20
98
123
84
85
80
99
90
96
0
0
Linear wear against stainless steel pin (1.4305) 0 W160 B160 W160 W160 Linear wear against stainless steel pin (AISI 303) 0 V400 V400 V400 V400
at +23°C
at +23°C
after
after
F = 10N, v= 9600mm/min and 50% at -30°C at +60°C showered F = 35N, v = 0.5m/min and 50% at -30°C at +60°C showered
and 90%
and 90%
and 5%
and 5%
humidity humidity humidity humidity humidity humidity
ASEAN 09/2023 ASEAN 09/2023
180° pull-off test after various exposure conditions 180° pull-off test after various exposure conditions
788 Online tools and more information u www.igus-asean.com/tribo-tape 3D CAD files, prices and delivery times online u www.igus-asean.com/tribo-tape 789
