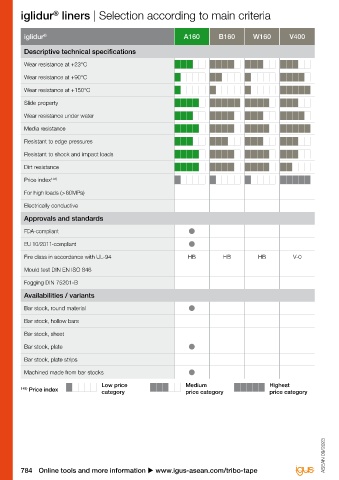

iglidur liners | Selection according to main criteria iglidur liners | Material properties table
®
®
iglidur ® A160 B160 W160 V400 iglidur ® Unit A160 B160 W160 V400
Descriptive technical specifications General properties
Wear resistance at +23°C Density [g/cm ] 1.00 1.00 0.95 1.51
3
Wear resistance at +90°C
Colour
Wear resistance at +150°C
Slide property Max. moisture absorption at [% weight] 0.1 0.1 0.1 0.1
+23 °C/50% r.h.
Wear resistance under water
Media resistance Max. moisture absorption [% weight] 0.1 0.1 0.1 0.2
Resistant to edge pressures Coefficient of sliding friction, dynamic [µ] 0.09 - 0.13 - 0.12 - 0.15 -
against steel 0.19 0.20 0.20 0.20
Resistant to shock and impact loads
Mechanical properties
Dirt resistance
Flexural modulus [MPa] 1,151 852 799 4,500
Price index 141)
For high loads (> 60MPa) Flexural strength at +20°C [MPa] 19 14 14 95
Electrically conductive Compressive strength [MPa] 37 37 37 47
Approvals and standards
FDA-compliant Max. permissible surface pressure at +20°C [MPa] 15 11 11 45
EU 10/2011-compliant
Shore D hardness 60 59 58 74
Fire class in accordance with UL-94 HB HB HB V-0
Physical and thermal properties
Mould test DIN EN ISO 846
Fogging DIN 75201-B Max. continuous operating temperature [°C] +90 +90 +90 +200
Availabilities / variants Max. short-term operating temperature [°C] +100 +100 +100 +240
Bar stock, round material
Min. continuous operating temperature [°C] -50 -50 -50 -50
Bar stock, hollow bars
Bar stock, sheet Thermal conductivity [W/m · K] 0.30 0.32 0.30 0.24
Bar stock, plate Coefficient of thermal expansion [K · 10 ] 11 11 11 3
-5
-1
at +23°C
Bar stock, plate strips
Electrical properties
Machined made from bar stocks
Specific cont act resistance [Ωcm] > 10 12 > 10 12 > 10 12 > 10 12
Low price Medium Highest
141) Price index category price category price category
Surface resistance [Ω] > 10 12 > 10 12 > 10 12 > 10 12
Page 786 787 788 789
ASEAN 09/2023 ASEAN 09/2023
784 Online tools and more information u www.igus-asean.com/tribo-tape 3D CAD files, prices and delivery times online u www.igus-asean.com/tribo-tape 785
