iglidur iglidur
®
®
®
®
tribo iglidur tribo 3D printing | Plain bearings iglidur tribo 3D printing | Rollers tribo
3D printing 3D printing

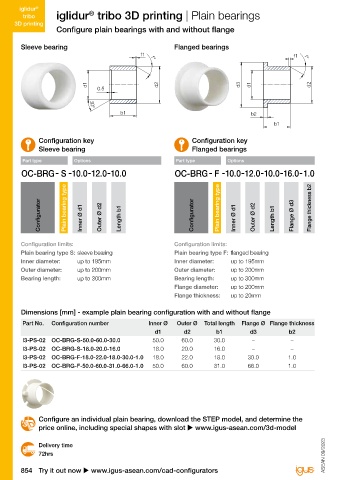

Configure plain bearings with and without flange Configure convex rollers
Sleeve bearing Flanged bearings Configuration key
f1 f1 f °
Part type Options
f °

d1 0.5 d2 d3 d1 d2

30°
b1 b2
b1 Configurator Spherical outer Ø d3 Roller length b1

Configuration key Configuration key Roller type Inner Ø d1 Outer Ø d2
Sleeve bearing Flanged bearings

Part type Options Part type Options Configuration limits:
Roller type 02: convex roller
Inner diameter: 1 up to 190mm
d1 d2 d3 Outer diameter: up to 195mm

up to 300mm
Roller length:
Configurator Plain bearing type Inner Ø d1 Outer Ø d2 Length b1 Configurator Plain bearing type Inner Ø d1 Outer Ø d2 Length b1 Flange Ø d3 Flange thickness b2

Configuration limits: Configuration limits: b1
Plain bearing type S: sleeve bearing Plain bearing type F: flanged bearing Dimensions [mm] - example configuration of convex rollers
Inner diameter: up to 195mm Inner diameter: up to 195mm
Outer diameter: up to 200mm Outer diameter: up to 200mm Part No. Configuration number Inner Ø Outer Ø Spherical Max.
Bearing length: up to 300mm Bearing length: up to 300mm d1 d2 Outer Ø Roller length
Flange diameter: up to 200mm d3 b1
Flange thickness: up to 20mm I3-PS-02 OC-ROLLER-02-4.0-8.0-8.2- 4.0 8.0 8.2 300
I3-PS-02 OC-ROLLER-02-10.0-15.0-20- 10.0 15.0 20 300

Dimensions [mm] - example plain bearing configuration with and without flange I3-PS-02 OC-ROLLER-02-10.0-50.0-55.0- 10.0 50.0 55.0 300
I3-PS-02 OC-ROLLER-02-14.0-60.0-61.0- 14.0 60.0 61.0 300
Part No. Configuration number Inner Ø Outer Ø Total length Flange Ø Flange thickness
d1 d2 b1 d3 b2 I3-PS-02 OC-ROLLER-02-20.0-100.0-120.0- 20.0 100.0 120.0 300
I3-PS-02 OC-BRG-S-50.0-60.0-30.0 50.0 60.0 30.0 – –
I3-PS-02 OC-BRG-S-18.0-20.0-16.0 18.0 20.0 16.0 – –
I3-PS-02 OC-BRG-F-18.0-22.0-18.0-30.0-1.0 18.0 22.0 18.0 30.0 1.0
I3-PS-02 OC-BRG-F-50.0-60.0-31.0-66.0-1.0 50.0 60.0 31.0 66.0 1.0

Configure an individual plain bearing, download the STEP model, and determine the Many other roller types can be configured online: download the STEP model and
price online, including special shapes with slot u www.igus-asean.com/3d-model determine the price online u www.igus-asean.com/roller-configurator

Delivery time Delivery time
72hrs ASEAN 09/2023 ASEAN 09/2023 72hrs

854 Try it out now u www.igus-asean.com/cad-configurators Prices and delivery time online u www.igus-asean.com/idd 855
