igubal
®
®
in-line ball igubal in-line ball and socket joints | Product range
and socket
joints
In-line ball and socket joints (low-cost):
AGRM-LC and AGLM-LC Order key

Type Size Version

In-line ball and socket joint Thread (housing) Metric Inner Ø [mm] Low-cost

Options:
Thread (housing) Ball stud 19)
d4 S1 L : Left-hand thread Blank : Made of plastic
d1
R : Right-hand thread MS : Made of galvanised
steel
e
ES : Made of stainless
a
b
steel 28)
h3 Material:
Housing: igumid G u Page 1190
®
l1
l2 ● Housing with ball stud
l6
● Lightweight
d2 S2 ● Maintenance-free
● Ball studs made of plastic, galvanised steel and
stainless steel u Accessories, page 1011
19)

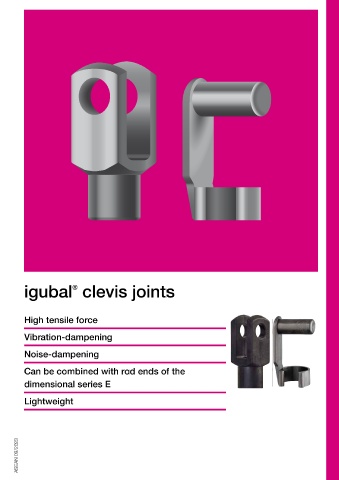

igubal clevis joints
®
Technical data
Part No. Max. static Max. static Max. static Max. Weight
tensile strain compressive force compressive force assembly
(with steel stud) (with plastic stud) force High tensile force
Short-term Long-term Short-term Long-term Short-term Long-term
[N] [N] [N] [N] [N] [N] [N] [g] Vibration-dampening
AG M-04-LC-MS 20) New 120 60 1,600 800 – – 280 3.3
AG M-06-LC-MS 100 50 2,000 1,000 800 400 320 10.8 Noise-dampening
AG M-08-LC-MS 150 75 2,800 1,400 1,400 700 430 23.1
Can be combined with rod ends of the
Dimensions [mm]
dimensional series E
Part No. d1 d2 d4 l1 l2 l6 h3 S1 S2 a b e Max.
±0.1 ±0.5 ±0.2 ±0.3 min. ±0.5 ±0.3 ±0.5 min. pivot angle
Recom. max. Lightweight
AG M-04-LC-MS 20) New 6 M4 10.6 8.5 8.0 6.8 36.5 SW7 SW5 20 23.0 10.25 18° 25°
AG M-06-LC-MS 10 M6 14.8 11 12.5 9.0 48.5 SW9 SW8 25 29.9 13 18° 25°
AG M-08-LC-MS 13 M8 19.3 13 16.5 11.2 59.5 SW12 SW11 30 35.0 16 18° 25°
19) Ball stud with right-hand thread; left-hand thread upon request
20) Only available with galvanised steel stud
28) Stainless steel ball stud upon request ASEAN 09/2023 ASEAN 09/2023
