drylin N drylin N
®
®
®
®
low-profile drylin N low-profile linear guides | Product range drylin N low-profile linear guides | Product range low-profile
linear linear
guides guides

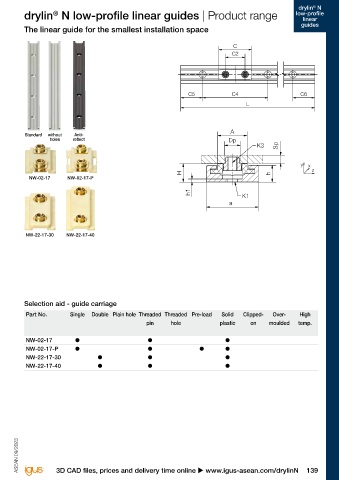

Guide rails and carriages - installation size 17 The linear guide for the smallest installation space
C
C2 C
Order key C2
Type Installation size Options

C5 C5 C4 C4 L L C6
C6

drylin ® N Guide carriages Type of carriage Rail width Carriage length Floating bearing in y-direction A A

Anti-
Complete system Standard without reflect Dp Dp
holes
K3 K3 Sp Sp
Type of carriage:
02: Carriage with threaded pin y
H h x
22: Double carriage with threaded pin H h z
Options: NW-02-17 NW-02-17-P
P: Pre-load h1 K1
Floating bearing h1 a K1
LLY: y-direction (not possible with "P“ option) a
LLZ: z-direction
LLYZ: yz-direction

NW-22-17-30 NW-22-17-40
Guide rail - dimensions [mm]
Part No. L a C4 C5 C6 h h1 K1 73) ly lz Weight
max. min. max. [mm ] [mm ] [g/m]
4
4
NS-01-17- 72) 2,000 17 60 20 49.5 5.5 0.9 Ø3.5 1,700 120 150
NS-01-17-UNGEBOHRT- 72) 2,000 17 – – – 5.5 0.9 – 1,700 120 150
NS-01-17-AR- 72) 2,000 17 60 20 49.5 5.5 0.9 Ø3.5 1,700 120 150

Guide carriage - dimensions [mm] Selection aid - guide carriage
Part No. H A C C2 K3 74) Sp Dp 159) Weight Part No. Single Double Plain hole Threaded Threaded Pre-load Solid Clipped- Over- High
±0.35 [g] pin hole plastic on moulded temp.
NW-02-17 6.0 9.6 20 14 M3 2.5 5.0 1.7
NW-02-17-P 6.0 9.6 20 14 M3 2.5 5.0 1.7 NW-02-17 • • •
NW-22-17-30 6.0 9.6 30 18 M3 2.5 5.0 2.4 NW-02-17-P • • • •
NW-22-17-40 6.0 9.6 40 28 M3 2.5 5.0 2.6 NW-22-17-30 • • •
72) Please give the required length in mm, symmetrical standard hole pattern C5=C6 NW-22-17-40 • • •
73) For cap screw with low head (e.g. DIN 7984, DIN 6912, DIN 84, EN ISO 1707)
74) Metal thread
159) Hole min. Ø

All elements can be ordered individually or as assembled systems
NS-01-17-1500: Guide rail, installation size 17, 1,500mm length
NK-02-17-02-500-LLY: Complete system with two solid plastic guide carriages with threaded pins, installation
size 17, floating bearing in y-direction and 500mm guide rails with standard holes
ASEAN 09/2023 ASEAN 09/2023

138 Online tools and more information u www.igus-asean.com/drylinN 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinN 139
