drylin N low-profile linear guides | Application examples drylin N low-profile linear guides | Online tools
®
®

Expert for linear guides: System selection
and service life calculation with CAD

Configure and calculate the service life of linear bearings
- constantly expanded by new sizes and products
Easily calculate the service life of your required linear guide
and configure with a few clicks. Select a drylin system and
®

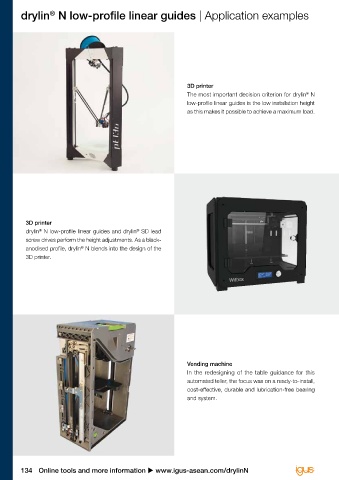

3D printer
The most important decision criterion for drylin N add the relevant environmental parameters. Select the bearing
®
low-profile linear guides is the low installation height size, carriage, number and position. Then enter the distance
as this makes it possible to achieve a maximum load. between the rails and the mounting. Define more relevant
parameter of the guidance and select a rail length. The results
are displayed.

u www.igus-asean.com/drylin-expert

Download the online tool
app now

3D printer
drylin N low-profile linear guides and drylin SD lead drylin CAD configurator: Generate
®
®
®
screw drives perform the height adjustments. As a black- complete 3D models for drylin linear
®
anodised profile, drylin N blends into the design of the technology according to your specifications
®
3D printer.
The igus CAD online configurator gives you the ability to
®
design and save your linear guide as a system, individual
components directly as a 3D model in all commonly used
formats, or to have these sent by e-mail - free of charge
and without registration.

u www.igus-asean.com/drylin-CAD

More information about the products can be
®
found in the igus download area
Vending machine Assembly instructions
In the redesigning of the table guidance for this ● Assembly videos
automated teller, the focus was on a ready-to-install, ● System design
cost-effective, durable and lubrication-free bearing ● Catalogues
and system. ●

u www.igus-asean.com/igus-downloads

ASEAN 09/2023
