drylin W
®
drylin W profile guides | Product range W profile guides | Product range
profile drylin ® ®
guides
Extension of the drylin W modular system
®
With four pillow blocks and the mounting plate, a linear
carriage can be installed in less than a minute. Mounting
plates are available in 3 lengths in each installation size
and width.
● Robust corrosion-resistant anodised aluminium
● A variety of combinations of liners/bearings/slide plates
are possible, also with manual clamp
● Required combination bearing and mounting plate also
A2 A available pre-assembled
K2

Modular system:
H1 C3 Can be combined with the complete drylin
®
C2 linear bearing product range. 4 screws
C included in delivery.

Technical data and dimensions [mm]

Part No. C A H1 A2 K2 Mounting
screws
included
WWY-06-30-06-AL 60 54 4.0 45 M4 M4
WWY-06-30-08-AL 80 54 4.0 45 M4 M4
WWY-06-30-10-AL 100 54 4.0 45 M4 M4
WWY-06-60-06-AL 60 85 4.0 76 M4 M4
WWY-06-60-08-AL 80 85 4.0 76 M4 M4
WWY-06-60-10-AL 100 85 4.0 76 M4 M4
WWY-10-30-08-AL 80 63 6.5 50 M6 M6
WWY-10-30-10-AL 100 63 6.5 50 M6 M6
WWY-10-30-15-AL 150 63 6.5 50 M6 M6 ®

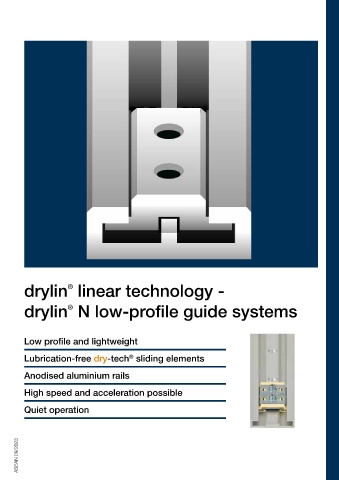

WWY-10-40-10-AL 100 73 6.5 60 M6 M6 drylin linear technology -
WWY-10-40-15-AL 150 73 6.5 60 M6 M6
®
WWY-10-40-20-AL 200 73 6.5 60 M6 M6 drylin N low-profile guide systems
WWY-10-80-10-AL 100 107 6.5 94 M6 M6
WWY-10-80-15-AL 150 107 6.5 94 M6 M6
WWY-10-80-20-AL 200 107 6.5 94 M6 M6
WWY-10-120-10-AL 100 153 6.5 140 M6 M6 Low profile and lightweight
WWY-10-120-15-AL 150 153 6.5 140 M6 M6 ®
WWY-10-120-20-AL 200 153 6.5 140 M6 M6 Lubrication-free dry-tech sliding elements
WWY-16-60-10-AL 100 104 8.5 86 M8 M8
WWY-16-60-15-AL 150 104 8.5 86 M8 M8 Anodised aluminium rails
WWY-16-60-20-AL 200 104 8.5 86 M8 M8
WWY-20-80-15-AL 150 134 8.5 116 M8 M8 High speed and acceleration possible
WWY-20-80-20-AL 200 134 8.5 116 M8 M8
WWY-20-80-25-AL 250 134 8.5 116 M8 M8 Quiet operation
WWY-25-120-15-AL 150 195 10.0 173 M10 M10
WWY-25-120-20-AL 200 195 10.0 173 M10 M10
WWY-25-120-25-AL 250 195 10.0 173 M10 M10

Suitable for rails u Page 78, 79, 80, 81, 84, 86
Suitable for bearings u Page 62, 69, 78, 73, 74 ASEAN 09/2023 ASEAN 09/2023
130 Online tools and more information u www.igus-asean.com/drylinW
