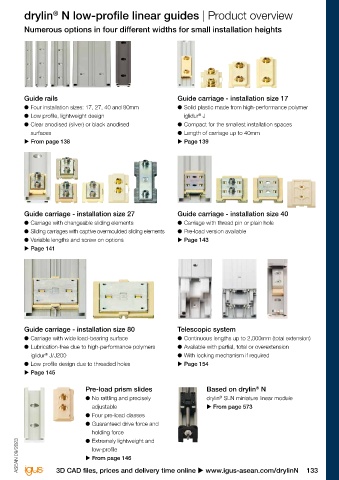

drylin  N low-profile linear guides | Advantages                                                                         drylin  N low-profile linear guides | Product overview
                   ®
                                                                                                                                           ®
        Lightweight, maintenance-free, corrosion-resistant                                                                       Numerous options in four different widths for small installation heights

                                                              Lubrication-free low-


                                                Low profile   profile linear guides -
                                    due to C-profile geometry
                                                              drylin  N
                                                                          ®
                                     Clear or black anodised
                                                                                           ®
                                             aluminium rails  The low-profile range drylin  N offers extremely                   Guide rails                                          Guide carriage - installation size 17
                                                              low profiles in several widths. Like all drylin                    ● 	Four installation sizes: 17, 27, 40 and 80mm      ● 	Solid plastic made from high-performance polymer
                                                                                                              ®
                                                              products the carriages run without lubrication                     ● 	Low profile, lightweight design                      iglidur  J
                                                                                                                                                                                              ®
                              Interchangeable sliding elements   in an anodised aluminium profile. The selected                  ● 	 Clear anodised (silver) or black anodised        ● 	Compact for the smallest installation spaces
                                                                                                            ®
                                     as clip version or captive   materials and the unique design make drylin  N                   surfaces                                           ● 	Length of carriage up to 40mm
                                 overmoulded sliding surfaces  a cost-effective and flexible guide system.                       u From page 138                                      u Page 139
                                                              ● 	Low profile between 6 and 12mm
                                                              ● 	Lightweight
                                                              ● 	 Many carriage options - also with pre-load
                                    Lightweight due tothe use    ● 	Maintenance-free dry operation
                                    of plastics and aluminium  ● 	Corrosion-resistant
                                                              ● 	Low wear with low coefficient of friction
                                                              ● 	Silver or black-anodised rails
                                                                                                                                 Guide carriage - installation size 27                Guide carriage - installation size 40
                                     Variable carriage lengths  Typical application areas                                         	Carriage with changeable sliding elements            	Carriage with thread pin or plain hole
                                                              ● 	Agricultural machinery                                          ● 	Sliding carriages with captive overmoulded sliding elements  ● 	Pre-load version available
                                                              ● 	Automotive                                                      ● 	Variable lengths and screw on options             ●
                                                                                                                                                                                      u Page 143
                                      Carriage with threaded    ● 	Medical technology                                            ●
                                                                                                                                 u Page 141
                                               or plain hole   ● 	Facade construction
                                                              ● 	Packaging industry

                                                                    Available from stock
                                      Precise due to pre-load       Detailed information about delivery time online.


                                      Lubrication-free sliding      Price breaks online
                                 elements/carriage made from        No minimum order value. No minimum order quantity
                                   high-performance polymer
                                             iglidur  J/J200        Max. +90°C                                                   Guide carriage - installation size 80                Telescopic system
                                                  ®
                                                                    (+50°C for overmoulded sliding elements)                     ● 	Carriage with wide load-bearing surface           ● 	Continuous lengths up to 2,000mm (total extension)
                                                                    Min. -40°C                                                   ● 	Lubrication-free due to high-performance polymers    ● 	Available with partial, total or overextension
                                                                                                                                   iglidur  J/J200                                    ● 	With locking mechanism if required
                                                                                                                                        ®
                                     Quiet operation through
                                              gliding motion        17mm - 80mm                                                  ● 	Low profile design due to threaded holes          u Page 154
                                                                                                                                 u Page 145

                                                                    Service life calculation                                                          Pre-load prism slides                      Based on drylin  N
                                                                                                                                                                                                                  ®
                               Rails with standard hole pattern     u www.igus-asean.com/drylin-expert                                                ● 	No rattling and precisely               drylin  SLN miniature linear module
                                                                                                                                                                                                     ®
                                            Or without holes                                                                                            adjustable                               u From page 573
                                                                                                                                                      ● 	Four pre-load classes
                                                                                                                                                      ● 	Guaranteed drive force and
                                                                                                                                                        holding force


                               Cleanroom certificated     Free from toxins           ESD-compatible                                                   ● 	Extremely lightweight and
                                                                                                                                                        low-profile
                               IPA Fraunhofer             2011/65/EU (RoHS)          (electrostatic discharge)     ASEAN 09/2023  ASEAN 09/2023       u From page 146
        132 Online tools and more information u www.igus-asean.com/drylinN                                                                  3D CAD files, prices and delivery time online u www.igus-asean.com/drylinN              133
