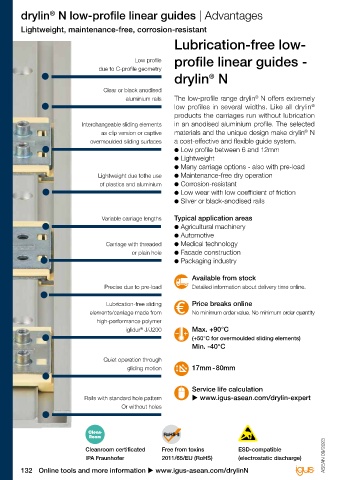

drylin N low-profile linear guides | Advantages drylin N low-profile linear guides | Product overview
®
®
Lightweight, maintenance-free, corrosion-resistant Numerous options in four different widths for small installation heights

Lubrication-free low-

Low profile profile linear guides -
due to C-profile geometry
drylin N
®
Clear or black anodised
®
aluminium rails The low-profile range drylin N offers extremely Guide rails Guide carriage - installation size 17
low profiles in several widths. Like all drylin ● Four installation sizes: 17, 27, 40 and 80mm ● Solid plastic made from high-performance polymer
®
products the carriages run without lubrication ● Low profile, lightweight design iglidur J
®
Interchangeable sliding elements in an anodised aluminium profile. The selected ● Clear anodised (silver) or black anodised ● Compact for the smallest installation spaces
®
as clip version or captive materials and the unique design make drylin N surfaces ● Length of carriage up to 40mm
overmoulded sliding surfaces a cost-effective and flexible guide system. u From page 138 u Page 139
● Low profile between 6 and 12mm
● Lightweight
● Many carriage options - also with pre-load
Lightweight due tothe use ● Maintenance-free dry operation
of plastics and aluminium ● Corrosion-resistant
● Low wear with low coefficient of friction
● Silver or black-anodised rails
Guide carriage - installation size 27 Guide carriage - installation size 40
Variable carriage lengths Typical application areas Carriage with changeable sliding elements Carriage with thread pin or plain hole
● Agricultural machinery ● Sliding carriages with captive overmoulded sliding elements ● Pre-load version available
● Automotive ● Variable lengths and screw on options ●
u Page 143
Carriage with threaded ● Medical technology ●
u Page 141
or plain hole ● Facade construction
● Packaging industry

Available from stock
Precise due to pre-load Detailed information about delivery time online.

Lubrication-free sliding Price breaks online
elements/carriage made from No minimum order value. No minimum order quantity
high-performance polymer
iglidur J/J200 Max. +90°C Guide carriage - installation size 80 Telescopic system
®
(+50°C for overmoulded sliding elements) ● Carriage with wide load-bearing surface ● Continuous lengths up to 2,000mm (total extension)
Min. -40°C ● Lubrication-free due to high-performance polymers ● Available with partial, total or overextension
iglidur J/J200 ● With locking mechanism if required
®
Quiet operation through
gliding motion 17mm - 80mm ● Low profile design due to threaded holes u Page 154
u Page 145

Service life calculation Pre-load prism slides Based on drylin N
®
Rails with standard hole pattern u www.igus-asean.com/drylin-expert ● No rattling and precisely drylin SLN miniature linear module
®
Or without holes adjustable u From page 573
● Four pre-load classes
● Guaranteed drive force and
holding force

Cleanroom certificated Free from toxins ESD-compatible ● Extremely lightweight and
low-profile
IPA Fraunhofer 2011/65/EU (RoHS) (electrostatic discharge) ASEAN 09/2023 ASEAN 09/2023 u From page 146
132 Online tools and more information u www.igus-asean.com/drylinN 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinN 133
