drylin R drylin R
®
®
®
®
shaft drylin R pillow blocks | Product range drylin R pillow blocks | Product range shaft
guides guides

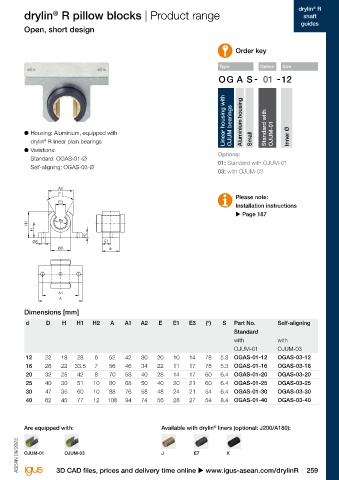

Closed, short design Open, short design
Order key Order key

Type Option Size Type Option Size

Linear housing with Aluminium housing Linear housing with OJUM bearings Aluminium housing

● Housing: Aluminium, equipped with RJUM bearings Standard with RJUM-01 Inner Ø ● Housing: Aluminium, equipped with Standard with OJUM-01 Inner Ø
drylin R linear plain bearings Small drylin R linear plain bearings Small
®
®
● Variations: Options: ● Variations: Options:
Standard: RGAS-01-Ø 01: Standard with RJUM-01 Standard: OGAS-01-Ø 01: Standard with OJUM-01
Self-aligning: RGAS-03-Ø 03: with RJUM-03 Self-aligning: OGAS-03-Ø 03: with OJUM-03
Solid plastic bearing (cost-effective, lightweight): 04: with RJM-01
RGAS-04-Ø
A2
(° )
A2 Please note: Please note:
øD E3
Installation instructions Installation instructions
u Page 187 u Page 187
ød ød
H1 H1
H H
H2 H2
øS E1 øS E1
E øD E

A1 A1
A A

Dimensions [mm] Dimensions [mm]
d D H H1 H2 A A1 A2 E E1 S Part No. Solid plastic d D H H1 H2 A A1 A2 E E1 E3 (º) S Part No. Self-aligning
Standard Self-aligning bearings Standard
with with with with with
RJUM-01 RJUM-03 RJM-01 OJUM-01 OJUM-03
12 22 18 35.0 6 52 42 30 20 10 5.3 RGAS-01-12 RGAS-03-12 RGAS-04-12 12 22 18 28 6 52 42 30 20 10 14 78 5.3 OGAS-01-12 OGAS-03-12
16 26 22 40.5 7 56 46 34 22 11 5.3 RGAS-01-16 RGAS-03-16 RGAS-04-16 16 26 22 33.5 7 56 46 34 22 11 17 78 5.3 OGAS-01-16 OGAS-03-16
20 32 25 48.0 8 70 58 40 28 14 6.4 RGAS-01-20 RGAS-03-20 RGAS-04-20 20 32 25 42 8 70 58 40 28 14 17 60 6.4 OGAS-01-20 OGAS-03-20
25 40 30 58.0 10 80 68 50 40 20 6.4 RGAS-01-25 RGAS-03-25 RGAS-04-25 25 40 30 51 10 80 68 50 40 20 21 60 6.4 OGAS-01-25 OGAS-03-25
30 47 35 67.0 10 88 76 58 48 24 6.4 RGAS-01-30 RGAS-03-30 RGAS-04-30 30 47 35 60 10 88 76 58 48 24 21 54 6.4 OGAS-01-30 OGAS-03-30
40 62 45 85.0 12 108 94 74 56 28 8.4 RGAS-01-40 RGAS-03-40 RGAS-04-40 40 62 45 77 12 108 94 74 56 28 27 54 8.4 OGAS-01-40 OGAS-03-40

Are equipped with: Available with drylin liners (optional: J200/A180): Are equipped with: Available with drylin liners (optional: J200/A180):
®
®
ASEAN 09/2023 ASEAN 09/2023

RJUM-01 RJUM-03 RJM-01 J E7 X OJUM-01 OJUM-03 J E7 X
